When it comes to securing wire ropes in demanding industrial, marine, or construction environments, the reliability of your hardware is non-negotiable. Among the most trusted solutions is the zinc-plated steel U bolt wire rope clip, also known as a cable clamp or wire rope grip. These small but mighty components are the unsung heroes of rigging, ensuring safety and stability in every lift, pull, and tie-down.

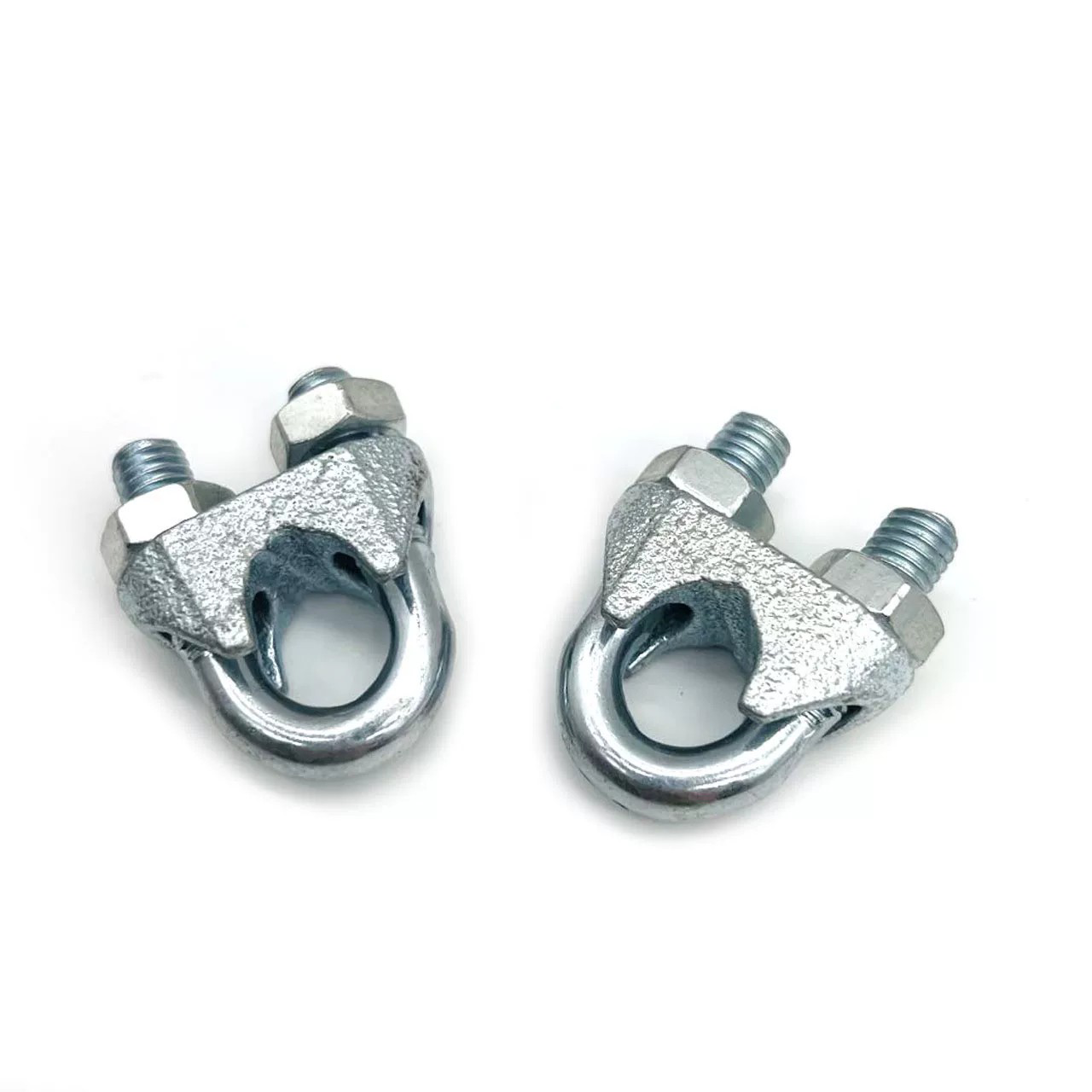

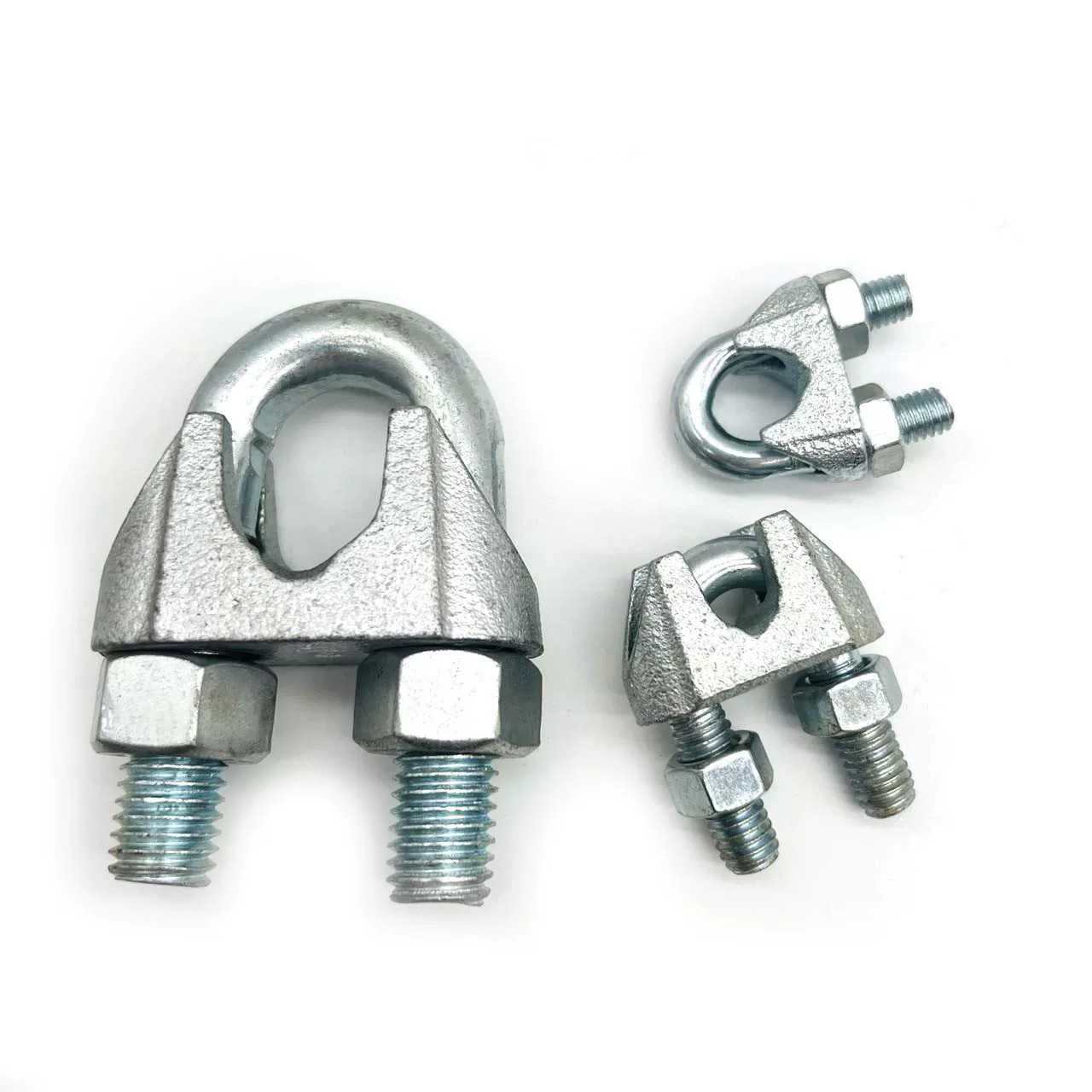

This article explores the key features, applications, and best practices for using these essential components, focusing on the premium-quality DIN741 Galvanized Malleable Wire Rope Clip.
What Makes a Zinc-Plated Steel U Bolt Wire Rope Clip Superior?
A wire rope clamp might seem simple, but its performance relies on precise engineering and high-quality materials. Our zinc-plated steel U bolt wire rope clips are meticulously manufactured to meet the rigorous DIN741 standard, guaranteeing consistency and strength.
Here’s what sets a professional-grade clip apart:
Corrosion-Resistant Zinc Plating: The hot-dip galvanized finish provides a robust shield against rust and corrosion. This is critical for applications exposed to moisture, saltwater, or harsh weather, significantly extending the lifespan of the clamp.
High-Strength Malleable Iron Body: Unlike brittle cast iron, the malleable iron construction offers excellent ductility and impact resistance. This means the clamp can absorb shocks and stress without fracturing, a vital feature for dynamic lifting operations.
Anti-Slip Design: The saddle (clamp base) is engineered with specially designed anti-slip protrusions in the concave area. These grip the rope firmly, preventing slippage even under heavy loads and ensuring a secure termination.
Precision Engineering: With a typical 2-claw clamp base, these clips distribute pressure evenly across the wire rope, preventing crushing or deformation that could compromise rope integrity.
Technical Specifications: Understanding the Dimensions
Choosing the correct size is paramount. Our DIN741 clips are available in a wide range of sizes to accommodate wire ropes from 3mm to 50mm. The dimensions are precisely controlled to ensure a perfect, secure fit.
Below is a quick reference for some of our standard sizes. Refer to our full product listing for the complete specification table.
Size 3mm (1/8") : Ideal for light-duty applications and smaller cable assemblies.
Size 6mm (1/4") : A common size for general-purpose fencing, guying, and light rigging.
Size 10mm (3/8") : A popular choice for overhead lifting, crane lines, and marine mooring.
Size 13mm (1/2") : Suitable for heavier construction and industrial hoist applications.
Size 19mm (3/4") and above: Used in high-load mining, shipbuilding, and heavy civil engineering projects.
Key Applications Across Industries
The versatility of the zinc-plated steel U bolt wire rope clip makes it an indispensable tool across numerous sectors. They are the go-to solution for creating eye terminals, making temporary connections, and securing ropes in place.
Common applications include:
Construction & Lifting: Fixing and balancing crane ropes, creating temporary guying for structures, and securing materials.
Mining & Rigging: Connecting draglines and hoist ropes in demanding mining operations.
Marine & Shipping: Rigging mooring lines, securing cargo on ships, and general deck hardware.
Industrial & Agriculture: Tensioning fencing, building agricultural pulling systems, and industrial fall protection systems.
Stage & Event Rigging: Providing safe and secure connections for lighting and sound equipment.
The Critical Importance of Correct Installation
Even the best zinc-plated steel U bolt wire rope clip will fail if not installed correctly. This simple rule is crucial for safety:
"Never saddle a dead horse."
The "dead horse" is the dead-end or short end of the rope. The saddle (the curved part of the clip) must always be placed on the live end (the long end that bears the load). The U-bolt goes over the dead end. Placing it incorrectly drastically reduces the clamp's holding capacity.
Recommended Installation Sequence:
Place the U-bolt over the dead end (short end) of the rope.
Fit the saddle (clamp base) firmly on the live end (long end).
Tighten nuts evenly and torque them to the recommended value.
After the initial load is applied, re-torque the nuts, as the rope will settle and stretch.
Important: Wire rope clamps are primarily intended for temporary or semi-permanent connections. For permanent overhead lifting, always consult local safety codes, which may require other termination methods like swaged sleeves or wedge sockets.
Why Choose Our Factory-Direct Zinc-Plated Steel U Bolt Wire Rope Clips?
Sourcing directly from the manufacturer offers distinct advantages. Our commitment to quality is reflected in every step of our process, from casting to final inspection.
Client Benefits:
Factory Direct Quality: We perform full dimensional inspections to guarantee precision and compliance.
Ready Stock: Immediate availability for standard sizes to meet your urgent project needs.
Custom Solutions: We offer OEM and custom branding for B2B orders, including printing your logo on boxes.
Comprehensive Support: Free technical support and prompt responses to all inquiries.
Secure Packaging: Standard export kraft cartons, with options for custom printed cartons and pallet loading (wooden or iron) for safe transit.
Conclusion
For any application requiring a robust, reliable, and corrosion-resistant connection for wire ropes, the zinc-plated steel U bolt wire rope clip is the industry standard. By choosing a product that adheres to the DIN741 standard and is manufactured with superior materials like malleable iron and a heavy-duty zinc coating, you are investing in safety, performance, and longevity.
Ready to secure your next project with the best rigging hardware? Contact us today to request a sample, get a competitive quote, or discuss your specific requirements directly with our factory team.
