DIN741 Galvanized Malleable Wire Rope Clip – Heavy Duty Wire Rope U Clamp & Cable Clamp, Zinc-Plated Steel U Bolt Wire Rope Grips
Product Description
The DIN741 Galvanized Malleable Wire Rope Clip (also known as wire rope clamp or wire rope u clamp) is a professional-grade fastener designed for temporary connection, termination, and fixation of wire ropes. It is widely used in lifting and rigging operations across cranes, mining, marine, and construction industries.
Manufactured in strict accordance with DIN741 standard, this wire rope clamp combines a rugged U-bolt, a malleable iron clamp base, and galvanized surface treatment to deliver excellent corrosion resistance and clamping force.
| Type | Rigging | Material | Galvanized or SS304 |
| Finish | Galvanized | Place of origin | Tianjin China |
| Standard | DIN 741 | Brand name | Glorex |
| Size | 3mm-50mm | Processing technic | Casting or forged |
| Function | For cable | Pack | Box, bulk carton, pallet,gunny |
| Usage | Fixing the wire rope | Surface | Electric galv |
| Color | Silver | Certification | ISO9001 |
Key Features
- Standard Compliance – Meets DIN741 requirements for reliable wire rope terminations.
- High-Strength Malleable Iron Body – Provides superior ductility and impact resistance compared to gray cast iron.
- Hot-Dip Galvanized Finish – Offers strong anti-corrosion protection for outdoor, marine, and industrial environments.
- Anti-Slip Design – The concave area features specially designed anti-slip protrusions to prevent rope slippage under load.
- Typical 2-Claw Clamp Base – Ensures even pressure distribution and secure grip on wire rope.
- Available Materials – Standard: Galvanized Malleable Iron; also offered in Carbon Steel or Stainless Steel upon request.
For applications requiring extra corrosion resistance, explore our Stainless Steel Wire Rope Clamp series.
Installation Sequence
Place the U-bolt over the dead end (short end) of the rope.
Fit the saddle (clamp base) on the live end (long end).
Tighten nuts evenly, then torque to recommended value.
Re-torque after initial load application.
Important: Wire rope clamps are intended for temporary or semi-permanent connections. For permanent overhead lifting, other termination methods (e.g., swaged sleeves) may be required per local safety codes.

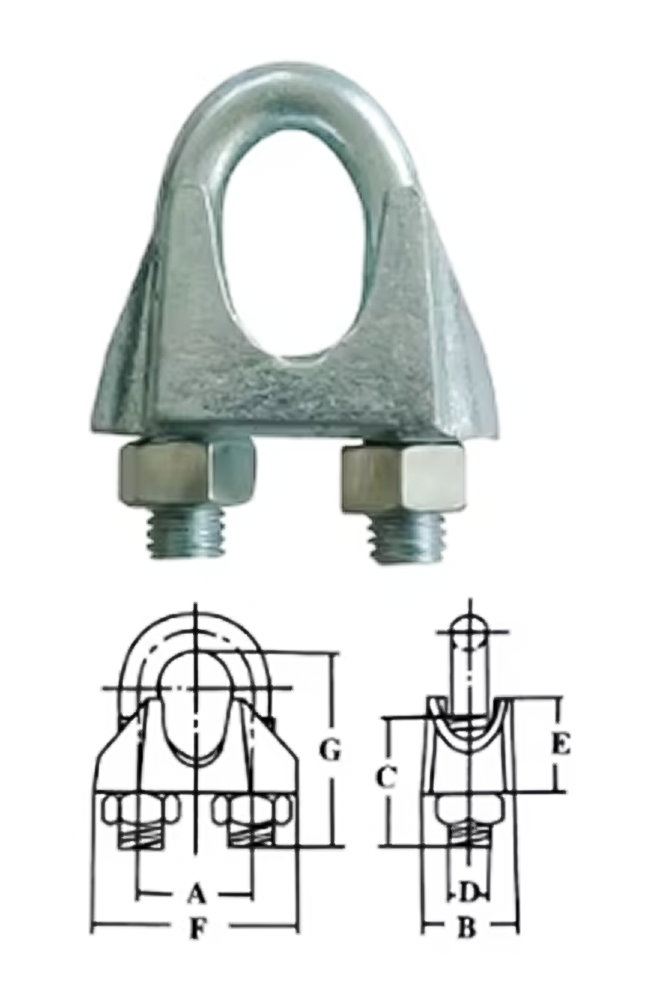

| Size | A | B | C | D | E | F | G | |
| Mm | in | |||||||
| 3 | 1/8 | 9 | 10 | 12 | 4 | 10 | 21 | 16 |
| 5 | 3/16 | 11 | 11 | 13 | 5 | 10 | 23 | 19 |
| 6 | 1/4 | 13 | 12 | 15 | 5 | 11 | 26 | 23 |
| 8 | 5/16 | 16 | 14 | 19 | 6 | 15 | 30 | 26 |
| 10 | 3/8 | 19 | 18 | 22 | 8 | 17 | 34 | 34 |
| 11 | 7/16 | 20 | 19 | 22 | 8 | 18 | 36 | 36 |
| 13 | 1/2 | 24 | 23 | 30 | 10 | 21 | 42 | 45 |
| 14 | 5/8 | 29 | 26 | 33 | 12 | 26 | 50 | 51 |
| 16 | 5/8 | 32 | 29 | 38 | 12 | 30 | 54 | 63 |
| 19 | 3/4 | 37 | 33 | 44 | 14 | 34 | 61 | 71 |
| 22 | 7/8 | 41 | 35 | 45 | 14 | 37 | 65 | 81 |
| 26 | 1 | 48 | 37 | 50 | 16 | 43 | 74 | 94 |
| 30 | 1 1/8 | 52 | 42 | 55 | 16 | 50 | 80 | 104 |
| 34 | 1 1/4 | 56 | 45 | 55 | 16 | 55 | 88 | 104 |
| 40 | 1 1/2 | 56 | 45 | 60 | 16 | 55 | 88 | 124 |
Product Images
Advantage
Factory-direct quality with full dimensional inspection
Immediate stock for standard sizes
Custom branding available for B2B orders
Compliant with international rigging standards
Also available: Stainless Steel Wire Rope Clip for chemical or marine environments
Product Detalis
Production Application
Crane wire rope fixing and balancing
Mining dragline and hoist rope connections
Ship rigging, mooring lines, and cargo securing
Construction site temporary guying and tie-downs
Stage rigging and industrial fall protection systems
Agricultural pulling and fencing tensioning
Our Service
1. OEM Manufacturing welcome
2. Sample order accepted
3. We will reply you for your inquiry in 24 hours.
4. 100% Brand new with material top quality
5. On time delivery & Free technical support
6. All items will be inspected and tested carefully before we ship it
7. Reasonable price on the same quality-level
8. Payment term: T/T, L/C, Western Union , PayPal and 30% deposit in advance, balance before shipping
Shipment
For shipment packaging, we adopt standard export kraft cartons as our default option. Customized printed cartons are also available to meet your branding needs, supporting white, black or full-color printing. To ensure safe transit, each carton is sealed with tape, then wrapped and reinforced with woven bags if needed. Finally, all goods will be loaded onto pallets—both wooden and iron pallets are optional for your convenience.
Exhibition
FAQ
Generally, we pack our goods in neutral brown boxes and brown cartons. If you need, we can pack the goods in your branded boxes.
30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages,before you pay the balance.
Generally, it will take10-20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Yes, we can, in fact, we also provide OEM service for several of the world's major brand manufacturers of stainless steel
hydraulic fittings, which greatly reduces their production costs and helps them win more market share.
No MOQ requests if we have the fittings in stock. If no stock, normally our MOQ is 500 pieces of each size. For the trial
order, we can accept lower MOQ to start the cooperation.
Sure, we can provide free samples for you. Besides, we have the ability to produce samples according to the customer’s drawings for samples.
