In any fabrication shop, the difference between a weld that passes inspection and one that fails often comes down to preparation. Pipe welding fit up clamps are the tools that bridge the gap between raw pipe ends and a finished, code-compliant joint. Without proper fit up, even the most skilled welder struggles to produce a sound weld. This article explains what these clamps do, how to choose them, and where they fit into a modern workflow. It also highlights a complementary product from Glorex for hose and tube connections in welding environments.
What Are Pipe Welding Fit Up Clamps?
Automotive Hose Clamps are mechanical devices used to hold two pipe sections in precise alignment during tack welding and root pass welding. They maintain the correct root gap, ensure pipe concentricity, and prevent movement caused by thermal expansion or handling. Common types include chain clamps, internal alignment clamps, external pipe alignment clamps, and flange alignment pins.
Unlike general-purpose C-clamps or vise grips, fit up clamps are designed specifically for cylindrical geometries. They distribute clamping force evenly around the pipe circumference, avoiding ovality and minimizing the risk of weld defects such as lack of fusion or burn-through.
Key Features That Matter in the Field
When evaluating British Style Hose Clamp, professionals focus on several practical characteristics:
Precise gap control. The clamp must hold a consistent root gap—typically 1.5 to 3 mm for many pipe schedules—without slipping during tacking. A screw-adjustable mechanism or a calibrated wedge system is common.
Radial alignment. The clamp should center the two pipe ends so that the inner diameters match. Misalignment creates a step that disrupts fluid flow and concentrates stress, which can lead to premature failure in service.
Heat resistance and durability. Welding generates significant heat. Clamps made from heat-treated steel or stainless steel resist warping and maintain clamping force even when the pipe reaches several hundred degrees Celsius near the joint.
Ease of removal. After the root pass is complete, the clamp must be removed without disturbing the weld. Quick-release mechanisms or hinged designs speed up this step, reducing downtime between joints.
Corrosion resistance. In stainless steel or high-chromium pipe welding, carbon steel clamps can leave iron contamination that causes rust spots. Stainless steel fit up clamps or those with protective coatings are preferred for such work.
Common Applications Across Industries
Stainless Steel Hose Clamps appear in nearly every sector that joins metallic pipe:
Oil and gas pipeline construction. Field welders use internal line-up clamps to align large-diameter transmission pipe before firing the root pass.
Power plant piping. High-pressure steam and feedwater lines require precise fit up to meet ASME code requirements.
Pharmaceutical and food processing. Sanitary stainless tubing demands clamps that avoid crevices and contamination; specialized fit up tools with smooth surfaces are used.
HVAC and refrigeration. Copper and steel pipe joints in chiller plants benefit from lightweight alignment clamps that won't crush thin-wall tubing.
Shipbuilding and offshore. Confined spaces and vibration-prone environments call for robust clamps with secure locking mechanisms.
How to Select the Right Fit Up Clamp
Start with the pipe diameter range. Most clamps cover a specific span (e.g., 2–8 inches or 6–12 inches). Choose a model that covers your most common sizes, or invest in modular systems with interchangeable inserts. Next, consider the welding process: for TIG welding of thin-wall stainless, a lightweight aluminum clamp with fine adjustment works well; for stick welding of heavy-wall carbon steel, a forged steel clamp with high clamping force is more appropriate. Finally, check the clamp's rated load and temperature limits. A clamp that deforms under heat will release its grip at the worst possible moment.
Complementary Clamping Solutions from Glorex

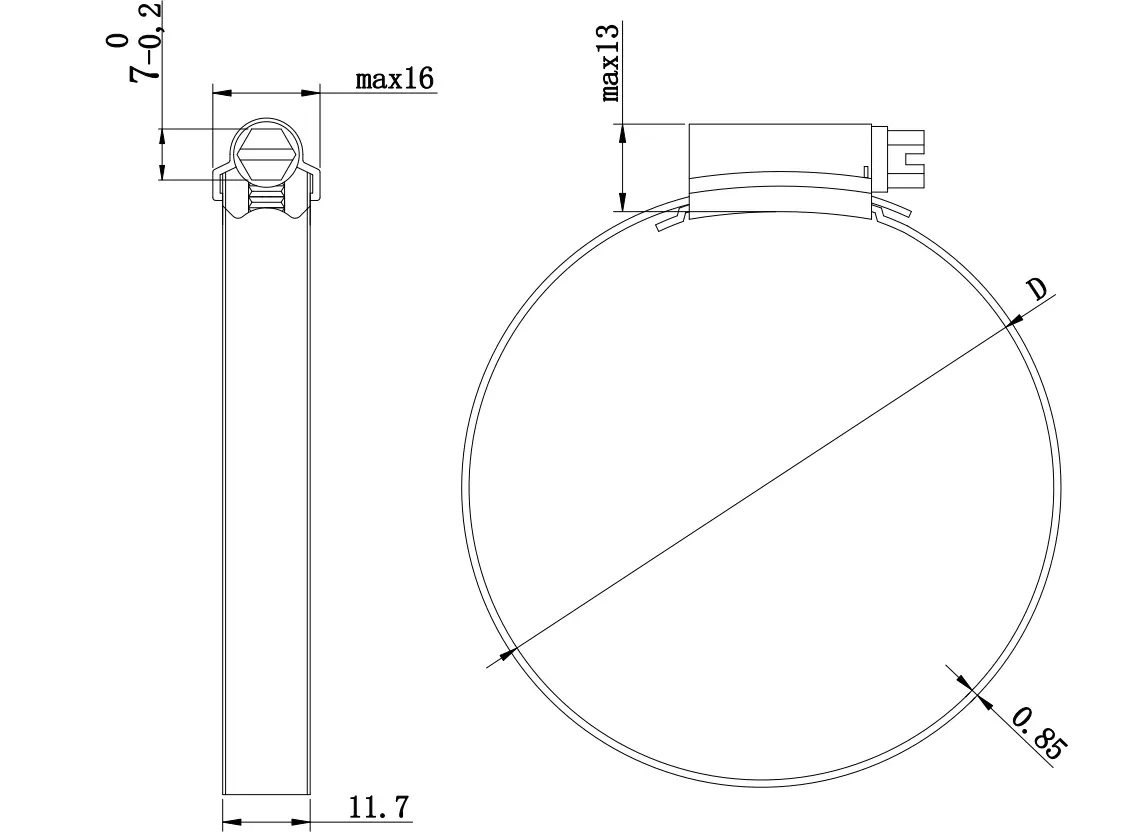

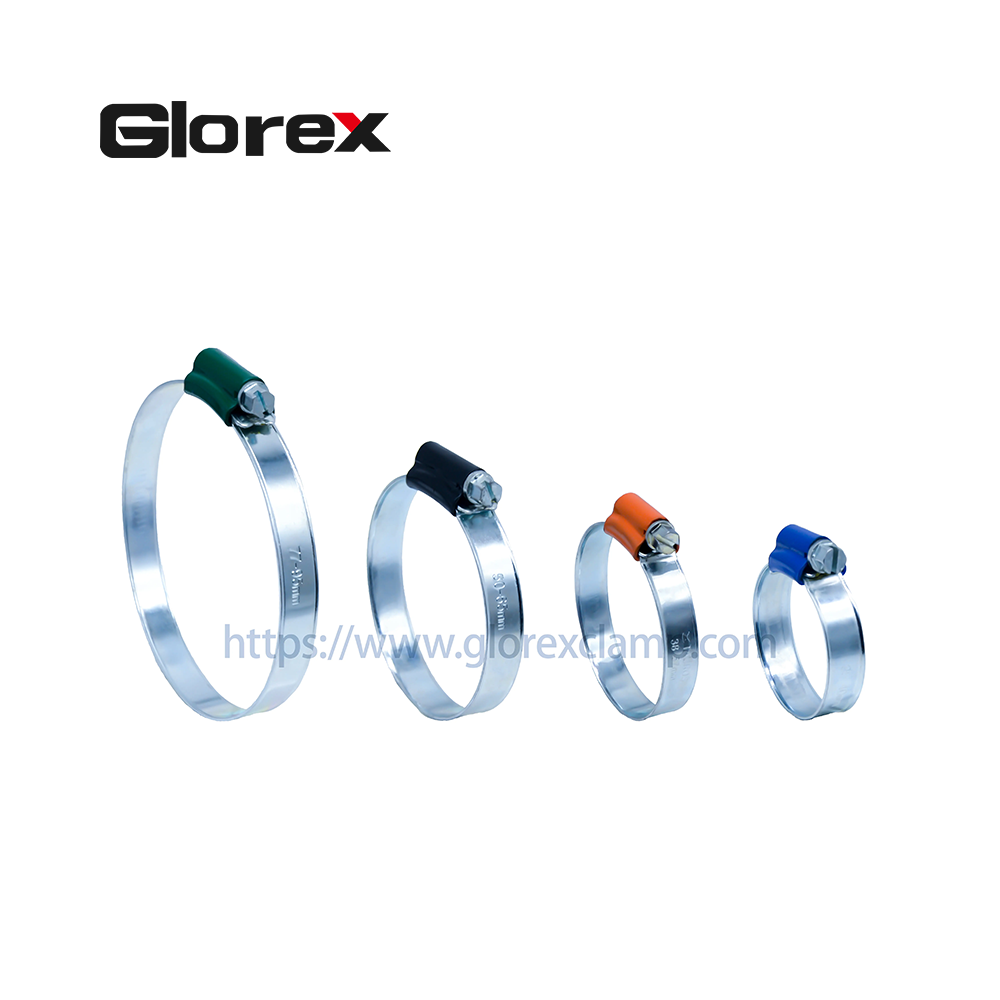

While Radiator Hose Clamps handle metal-to-metal alignment, many fabrication and assembly operations also involve hose and tube connections. Glorex manufactures the British Type Hose Clamp with Tube Housing, which uses a unique tube housing design to distribute contact pressure evenly and protect hoses from damage. This clamp is available in zinc-plated steel (W1) and 304 stainless steel (W4) for corrosion-sensitive environments. It is particularly useful for engine coolant lines, hydraulic return hoses, and pneumatic systems in welding shops and heavy equipment maintenance.
For detailed specifications, packaging data, and material options, visit the British Type Hose Clamp with Tube Housing product page. The same factory-direct quality control that applies to Glorex pipe clamps—in-house inspection from raw material to finished goods—carries over to this hose clamp line.
About Glorex
Mika (Tianjin) Pipeline Technology Co., Ltd (Glorex) operates from Tianjin, China, a major international shipping hub with access to Tianjin Airport, Xingang Port, and Dongjiang Port. The company specializes in pipe clamp products for automotive, military, industrial, and fluid handling applications. With a team of experienced engineers and quality inspectors, Glorex maintains rigorous in-house testing for dimensional accuracy, thread torque, and surface treatment. The company's own transport fleet and logistics partnerships ensure fast delivery to global destinations. Glorex's product range includes single ear stepless hose clamps, British type hose clamps, and related fastening solutions.
Certificate
FAQ
Q: Can pipe welding fit up clamps be used for both tack welding and root pass welding?
A: Yes, most fit up clamps are designed to remain in place during tacking and the root pass. However, for the fill and cap passes, the clamp is usually removed to allow full access to the joint. Always follow the clamp manufacturer's instructions regarding heat exposure limits.
Q: What is the difference between an internal and external pipe alignment clamp?
A: An internal clamp expands inside the pipe bore to align the two ends from within, leaving the entire outside circumference free for welding. An external clamp wraps around the outside of the pipe and is easier to position for small-diameter or short pipe sections. The choice depends on pipe size, access, and welding sequence.
Q: How do I prevent the clamp from damaging the pipe surface?
A: Use clamps with smooth, rounded contact pads or protective coatings. For stainless steel pipe, dedicated stainless or plastic-lined clamps prevent carbon steel contamination. Avoid over-tightening; the clamp should hold alignment, not crush the pipe.
Q: Are Glorex pipe clamps suitable for high-temperature welding?
A: Glorex offers clamps in various materials and designs. For welding applications, please contact our technical team with your specific temperature and load requirements. For hose clamping near welding operations, the British Type Hose Clamp with Tube Housing is available in 304 stainless steel for better heat and corrosion resistance.
Q: Do you provide custom sizes or branding on clamps?
A: Yes. Glorex offers dual marking technologies—stencil typing and laser engraving—for permanent identification. Custom sizes and material configurations are available upon request. Contact our sales team for minimum order quantities and lead times.
Conclusion
Pipe welding fit up clamps may not be the most glamorous tool in the shop, but they directly influence weld quality, rework rates, and project timelines. Selecting the right clamp for your pipe diameter, material, and welding process pays for itself in fewer repairs and faster fit up. And when your work involves hose connections alongside pipe welding, Glorex provides reliable clamping solutions backed by factory-direct engineering and logistics support.
