Premium Heavy Duty Exhaust 304 Stainless Steel V Band Pipe Clamps
Stainless Steel V Band Clamp Overview
In critical applications where downtime is not an option and leaks are unacceptable, the integrity of your connection points is paramount. Whether you are tuning a high-performance turbocharger or managing a complex industrial pipeline, the choice of your clamping solution directly impacts system efficiency, safety, and maintenance costs.
For decades, flanged connections have relied on bulky, multi-bolt configurations that are time-consuming to install and prone to uneven pressure distribution. Enter the V-Band Clamp: an engineered fastening solution that redefines reliability. It operates on a simple yet effective mechanical principle—converting the torque of a single bolt into uniform axial and radial clamping forces. This design not only ensures a robust, leak-proof seal but also significantly reduces the space required for installation.
At Mika (Tianjin) Pipeline Technology Co., Ltd., we manufacture these critical components from premium materials to meet the rigorous demands of modern engineering. Our V-Band clamps are designed to perform consistently in high-temperature and high-vibration environments.
V Band Clamp Features
The V-Angle Advantage: The geometry of the V-groove is critical. When the bolt is tightened, the wedge action of the V shape translates the tightening force directly into a compressive axial load. This ensures the flanges are pulled together with equal force around the entire circumference, creating a seal that is far superior to traditional gasket methods.
Rapid Installation & Maintenance: The single-bolt mechanism is a game-changer for assembly lines and field repairs. It eliminates the tedious process of torquing multiple fasteners, reducing installation time by up to 80%. This design also allows for operation in tight engine bays or compact piping racks where a standard wrench cannot access multiple bolts.
Thermal & Pressure Resilience: Designed to function where rubber hoses fail. When paired with appropriate gaskets (such as graphite or metallic), these clamps withstand extreme temperature fluctuations and high-pressure surges, making them ideal for critical points like the turbine outlet.
Weight-Saving Design: In the automotive and aerospace sectors, every gram counts. The clamp's compact profile reduces the overall mass of the piping system, contributing to better fuel efficiency and reduced material costs without compromising strength.
Heavy Duty Hose Clamps Comprehensive Applications
Automotive & Motorsport: The primary application for high-performance V-Band clamps is in exhaust systems, specifically connecting the turbocharger downpipe to the catalytic converter or the exhaust manifold. They are also standard in EGR (Exhaust Gas Recirculation) and intake plumbing.
Heavy-Duty Industrial: In chemical plants and refineries, these clamps are used to seal covers on filters, dust collectors, and pneumatic conveying lines. They provide a secure seal that can be opened quickly for cleaning and inspection.
General Engineering: They serve as reliable connectors in cooling loops, irrigation headers, and diesel engine exhaust systems, where a dependable, vibration-resistant joint is required.
Pipe Clamp Technical Specifications & Material
Material: Constructed from high-grade 304 Stainless Steel, ensuring excellent corrosion resistance, high tensile strength, and durability in harsh outdoor or high-heat environments.
Sizing: We offer a comprehensive range of sizes to match standard pipe IDs, covering from 1.5 inches (38mm) up to 6 inches (152mm). See the size chart below for exact specifications.
| Product Name | Material | Size (inches) | Steel Pipe (ID) |
| V Band Clamp | 304 Stainless Steel | 1.5" | 38mm |
| 1.75" | 45mm | ||
| 2" | 51mm | ||
| 2.25" | 57mm | ||
| 2.36" | 60mm | ||
| 2.5" | 63mm | ||
| 2.75" | 70mm | ||
| 3" | 76mm | ||
| 3.25" | 83mm | ||
| 3.5" | 89mm | ||
| 4" | 102mm | ||
| 4.5" | 114mm | ||
| 5" | 127mm | ||
| 6" | 152mm |
Size customization is supported.

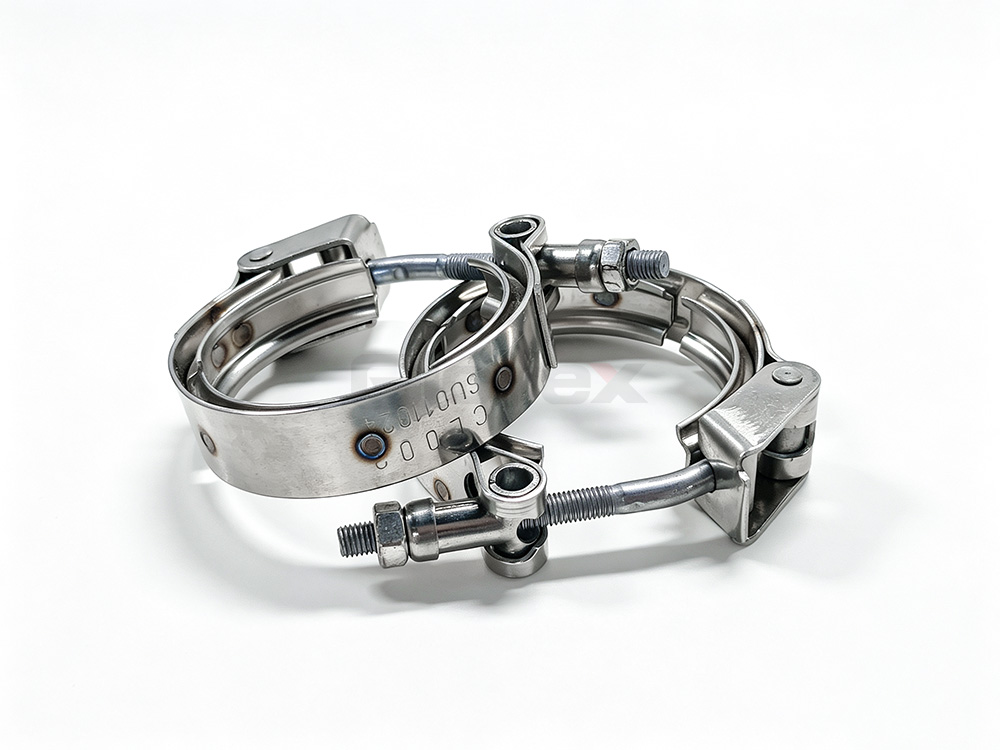

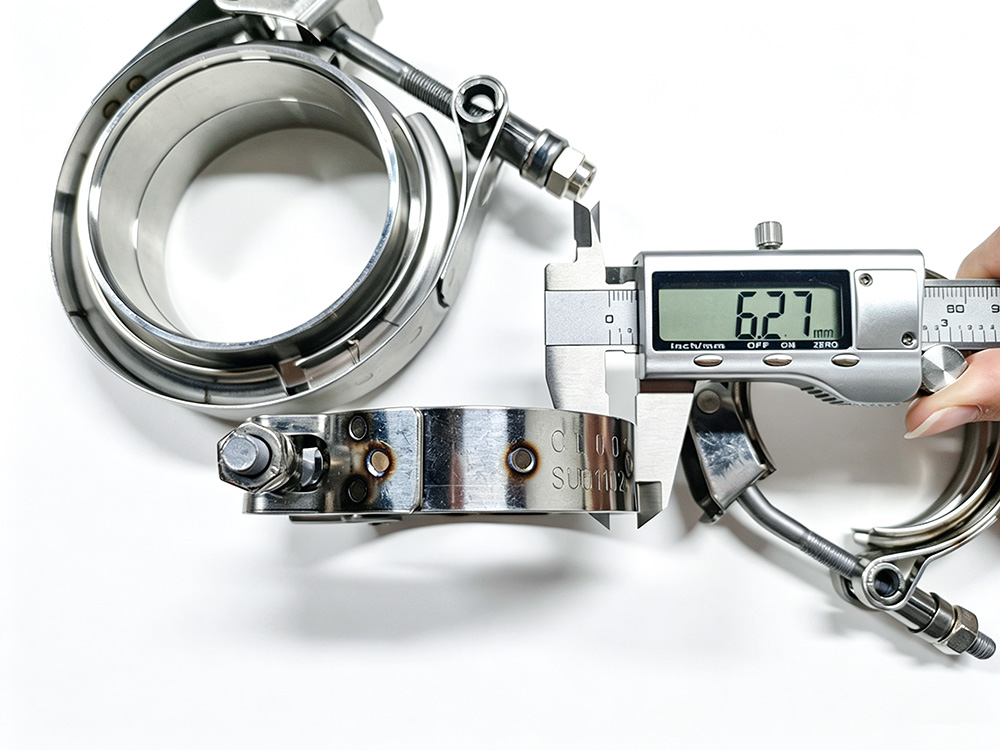

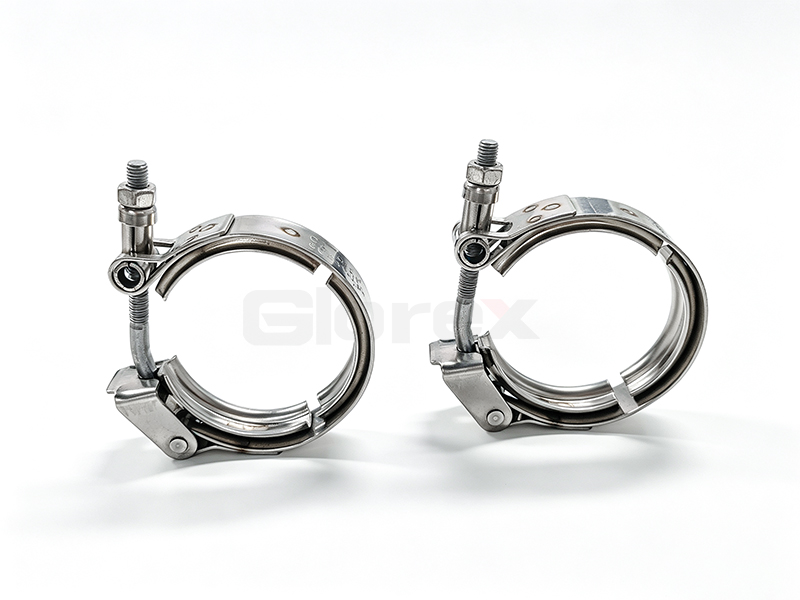

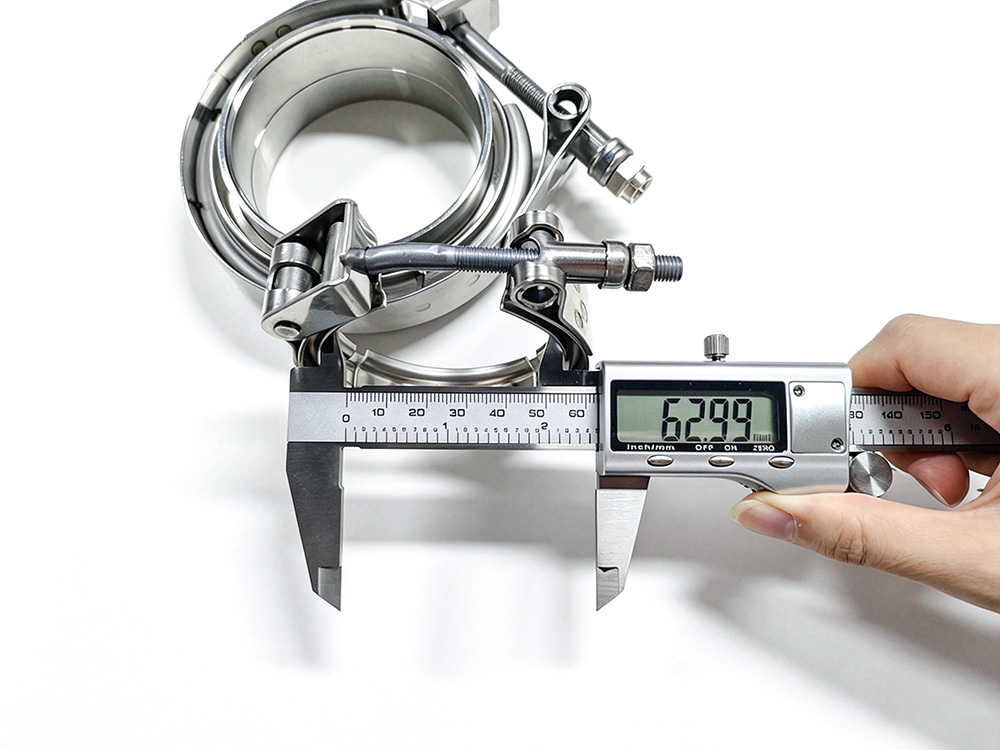

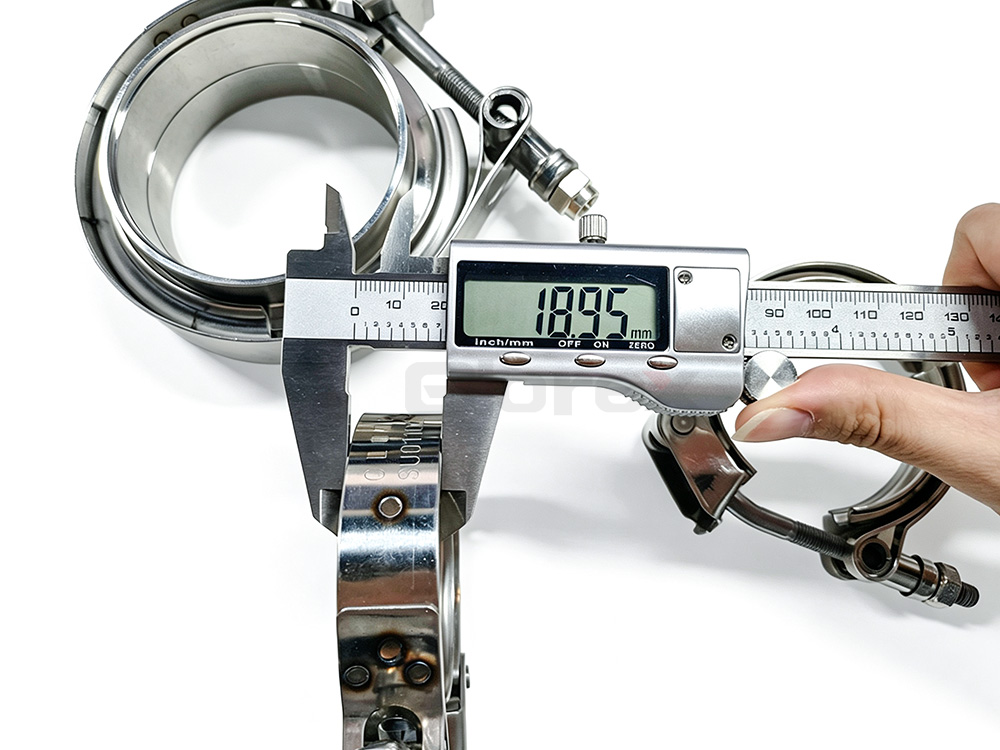

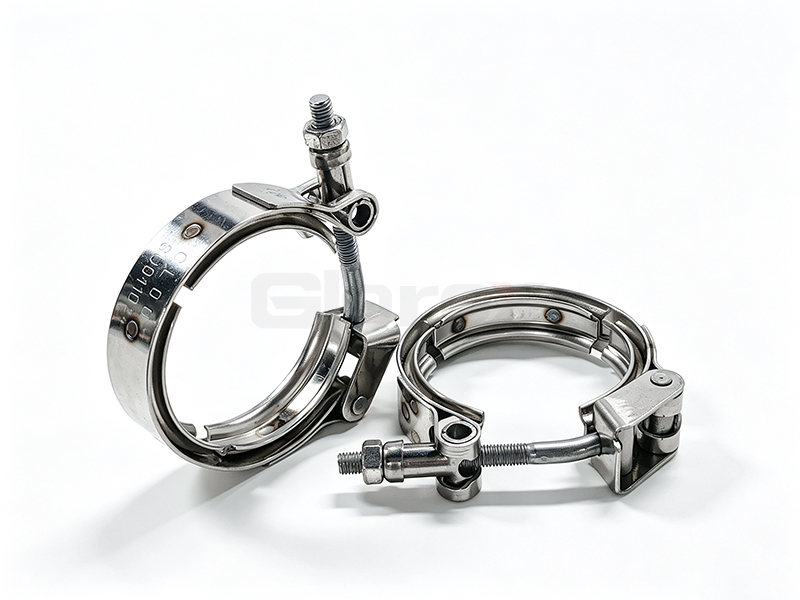

Stainless Steel V Band Clamp Showcase
V Band Clamp Installation
Achieving the perfect seal requires more than just tightening the bolt. Follow these professional tips for a flawless installation:
Preparation: Clean both flange faces and the clamp V-band groove. Remove any burrs, rust, or debris that could prevent proper seating.
Alignment: Fit the clamp over the flanges. Ensure the flanges are seated squarely together before tightening. Do not use the clamp to force misaligned pipes together, as this can stress the hardware and cause future failure.
Torquing: Tighten the nut by hand first to seat the clamp. Then, using a torque wrench, tighten in increments to the recommended specification.
Even Distribution: While tightening, lightly tap the outer circumference of the clamp with a soft mallet. This "shocks" the components, allowing the metal to settle and ensuring uniform clamping pressure across the entire joint.
Maintenance: Regularly inspect the threads of the locking nut. The locking feature (nylon patch or deformed thread) has a limited number of reuse cycles. Replace the clamp if the locking mechanism shows signs of wear to maintain vibration resistance.

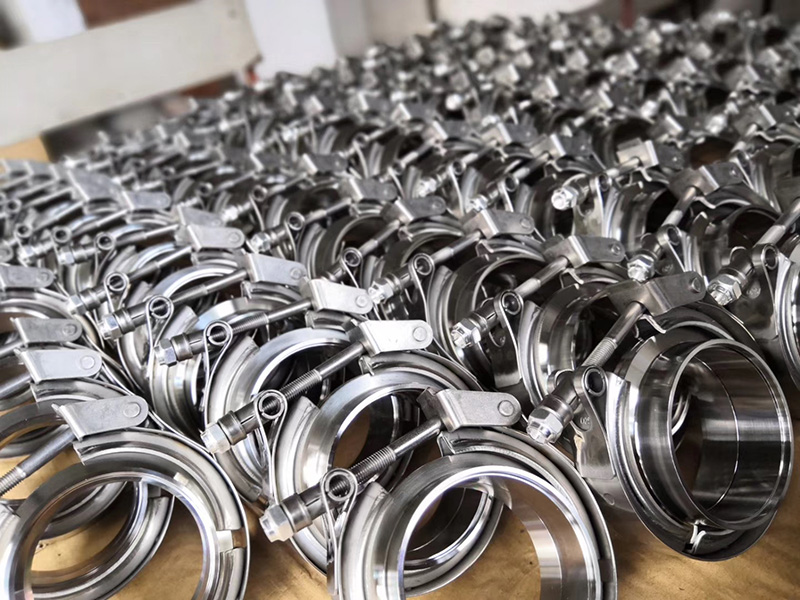

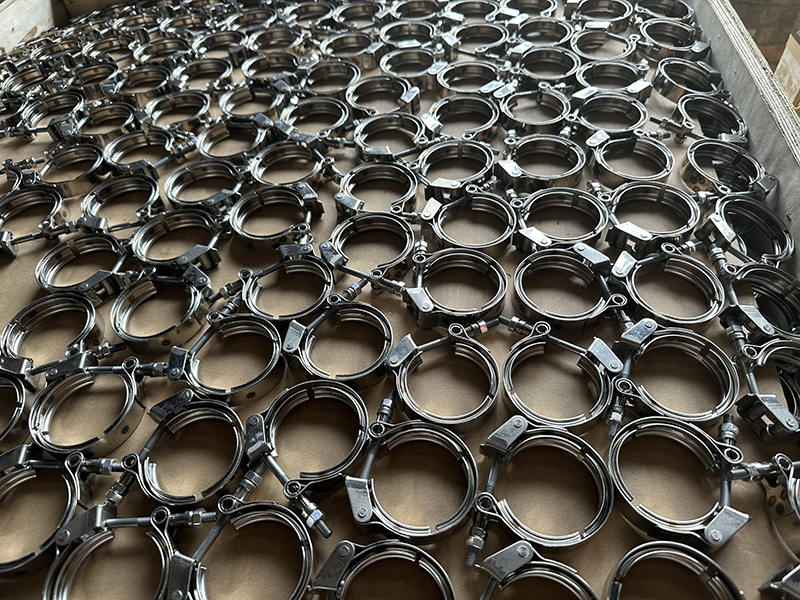

V Band Exhaust Clamp Package
Company Profile
Mika (Tianjin) Pipeline Technology Co., Ltd. is a specialized manufacturer of high-integrity clamping and pipe connection solutions. With a staff of nearly 100 skilled professionals—including 15 dedicated sales and after-sales personnel, and 8 technicians (5 of whom are senior engineers)—we are committed to delivering reliable, non-leakage sealing for critical applications.
Serving the automotive, military, industrial filtration, and engine exhaust sectors, our products are trusted to perform under extreme conditions in air intake, cooling/heating, irrigation, and drainage systems. At Mika, a sunny and pragmatic company culture drives our first-class teams to ensure your projects run smoothly from design through to after-sales support.
FAQs
A: Standard hose clamps apply radial pressure to compress a hose onto a pipe, relying on friction. V-Band clamps utilize a V-shaped groove to draw two flat flanges together axially, creating a rigid, airtight metal-to-metal or gasket seal. V-Bands are designed for permanent joints that may need to be opened for maintenance, whereas hose clamps are generally for softer tubing.
A: You should select the clamp based on the Outer Diameter (OD) or Pipe ID matching your flange. Our sizing chart (e.g., 2.5" clamp fits 63mm pipe ID) ensures you get the right fit. If you are unsure, measure the OD of the pipe where the flange is welded.
A: Yes. The mechanical advantage of the V-groove allows it to withstand significant axial loads and internal pressures. The 304 stainless steel construction ensures the clamp maintains integrity even under extreme thermal cycling. Performance is also dependent on the flange design and gasket used.
A: Absolutely. This is the most common application. Our clamps are rated for high-temperature exhaust gases, making them perfect for turbocharger connections, downpipes, and cat-back systems, where they outperform standard slip-fit clamps in sealing and durability.
