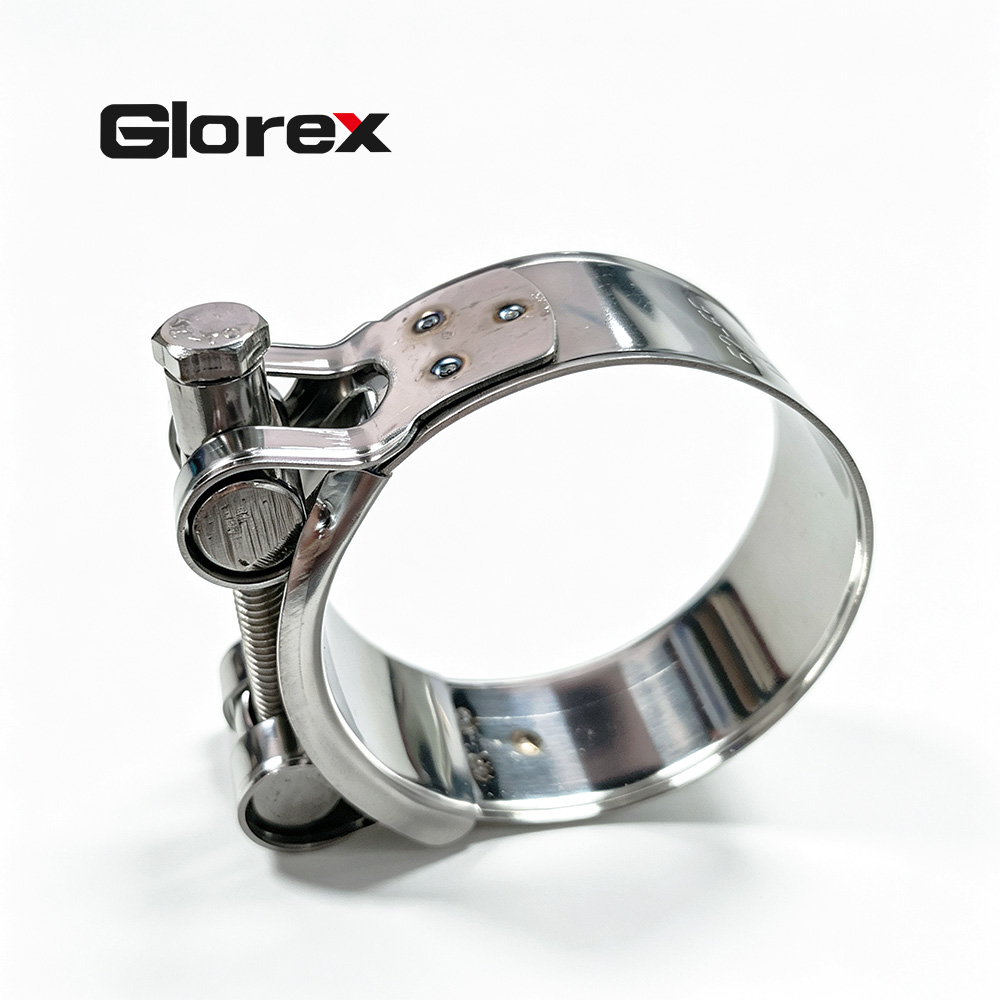

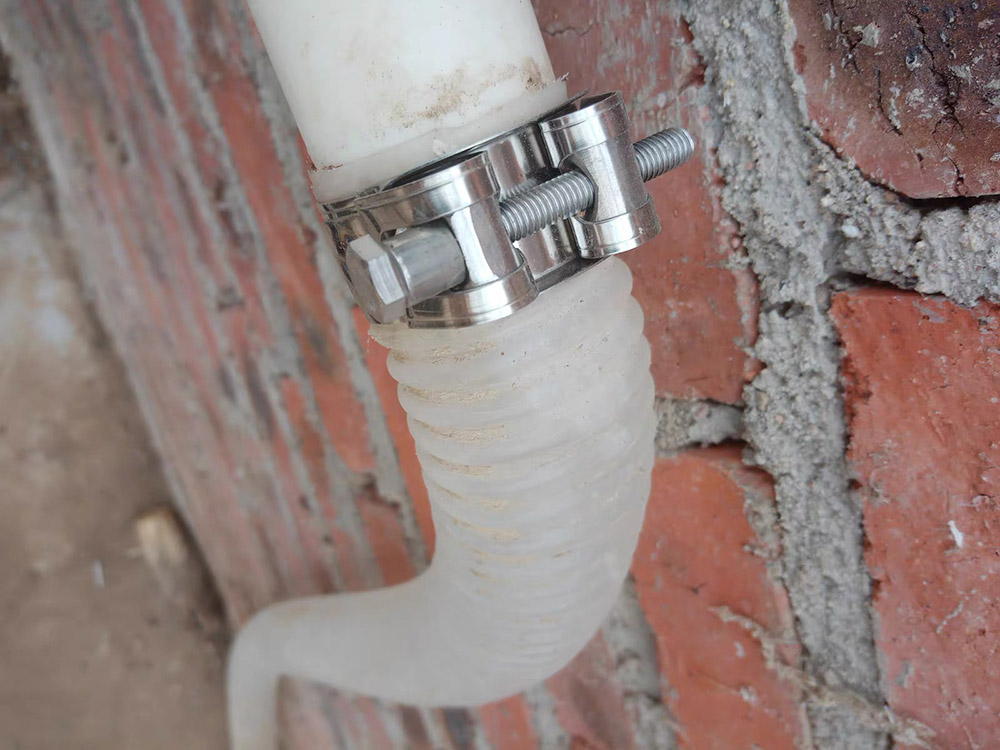

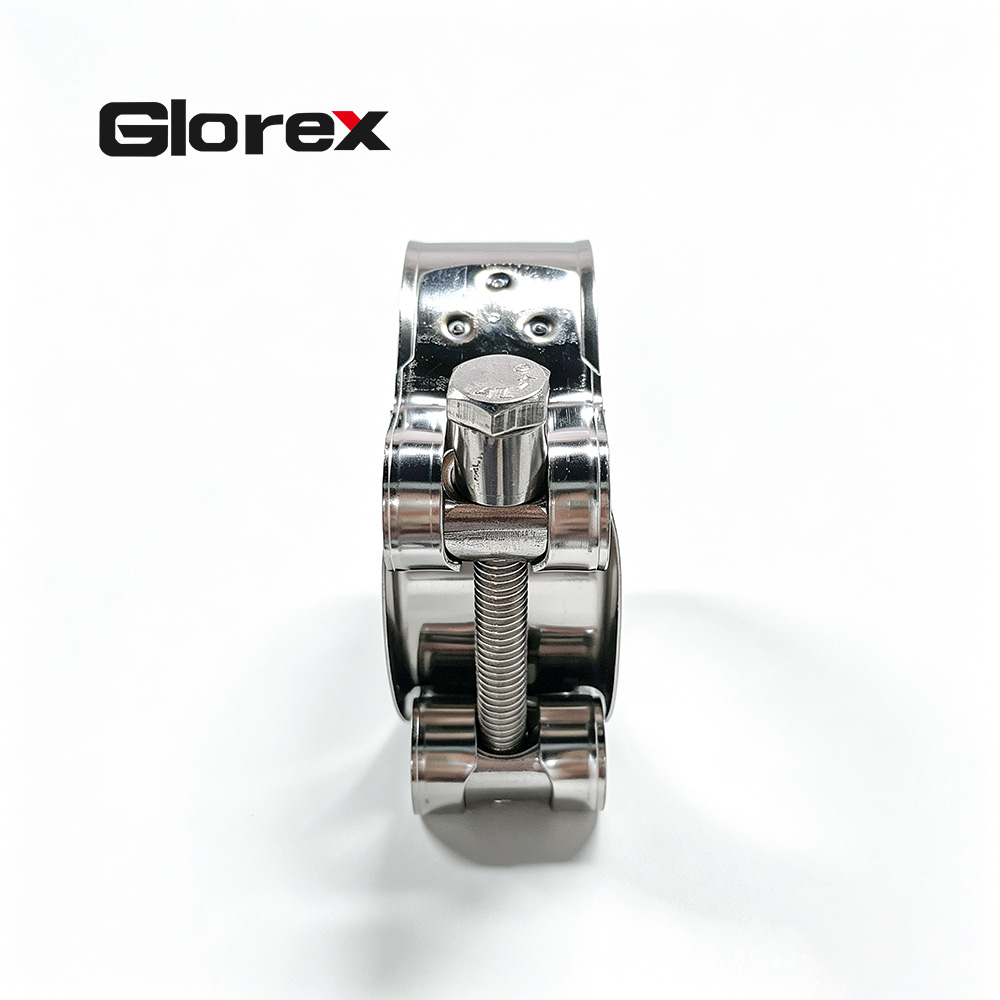

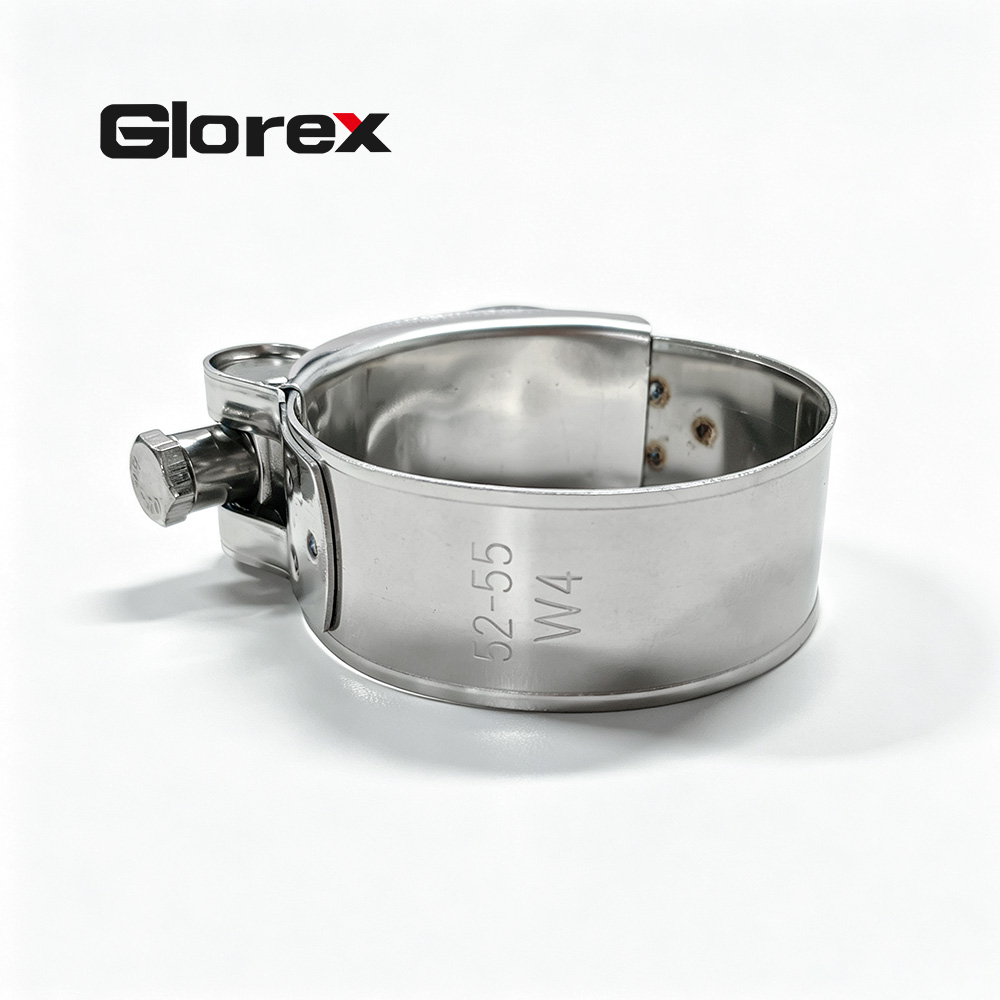

Heavy Duty Bolt Type Non-Leak Solid Trunnion Pipe Clamp
Heavy Duty Pipe Clamp Overview
When you need a reliable fastening solution that can stand up to high pressure, vibration and corrosive environments, our full stainless steel robust clamp with solid trunnion is the ideal choice. Unlike ordinary lightweight clamps, this solid hose clamp is built with reinforced solid trunnions that eliminate weak points in the structure, ensuring the clamp stays securely fastened even under extreme working conditions.
Pipe Clamp Key Features
Extreme Pressure Resistance: This clamp is engineered to withstand extremely high working pressure, making it suitable for heavy-duty applications that standard clamps can't handle.
Tool-Free Easy Installation: The bolt design allows for simple, quick installation with standard tools, you can adjust the tightening force easily to get a perfect fit.
Full Stainless Steel Durability: All components of this solid band full stainless clamp are made of high-grade stainless steel (201, 304 or 316 optional), offering excellent rust and corrosion resistance. It works perfectly in wet, outdoor or chemical-exposed environments, with a much longer service life than plated steel clamps.
Even Force Distribution: The integrated bridge design under the bolt provides 360-degree contact on the hose, distributing the clamping force evenly across the entire band. This prevents damage to your hoses and ensures a consistent, non-leakage seal.
Smooth Edges: The band features deburred smooth edges to avoid scratching or cutting your hoses during installation or use, protecting your pipeline system from damage.

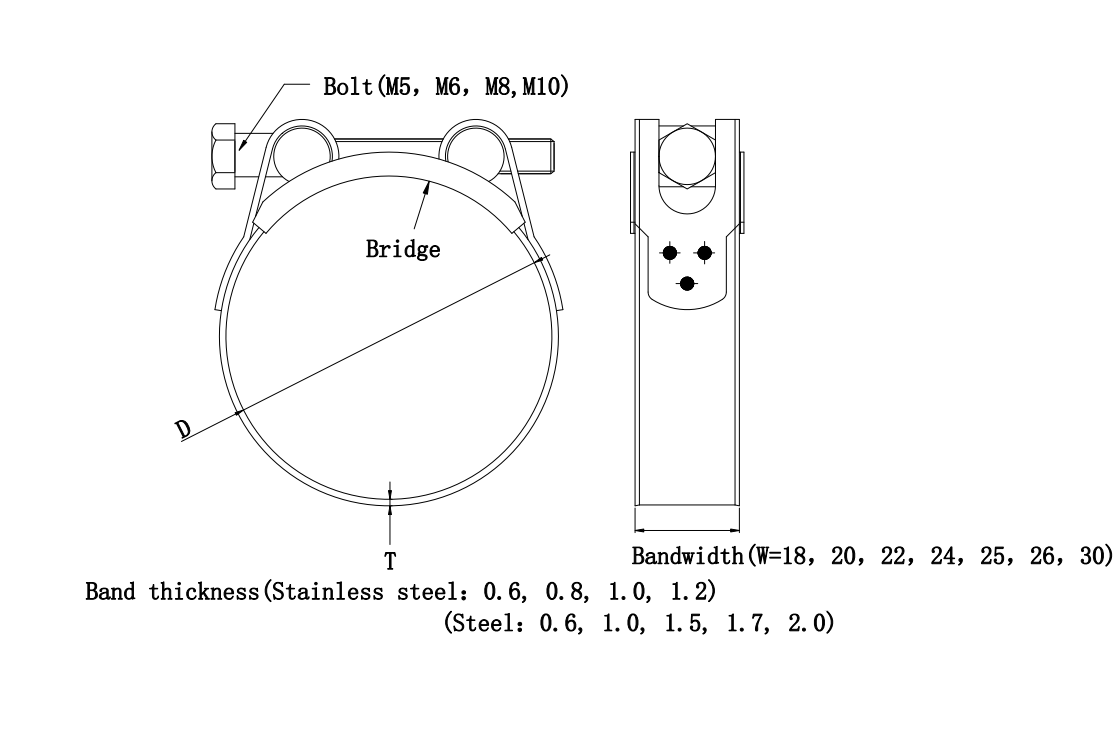

Stainless Steel Hose Clamp Design Drawings
Retaining Pipe Clamp Customization Options
Product Lettering: We support both stencil typing and laser engraving, you can add your brand logo or product markings on the clamp band for brand recognition.
Custom Packaging: We offer flexible packaging solutions to meet your needs. Standard packaging includes inner plastic bags and outer cartons with labels. We also support custom options like plain white boxes, kraft boxes, color boxes, plastic boxes and more.

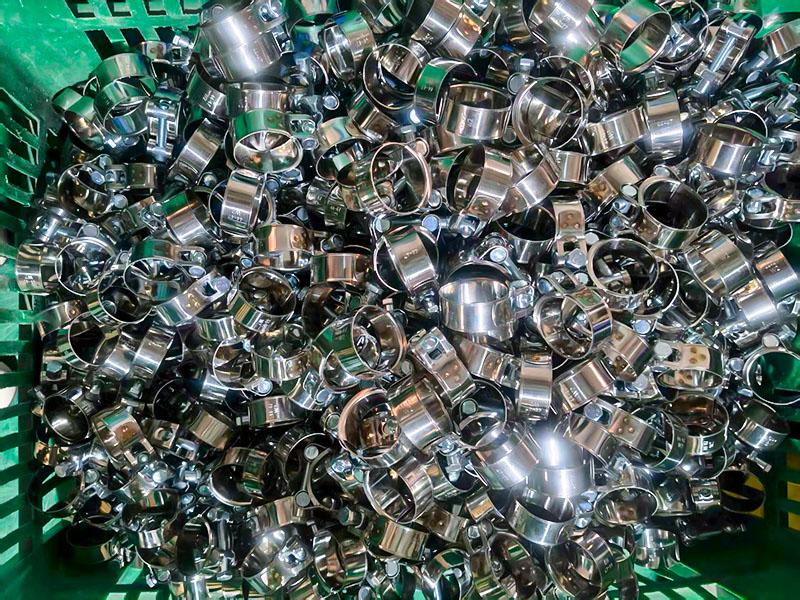

Rubber Pipe Clamps Quality Assurance
We have a complete inspection system and strict quality standards to ensure every product meets your requirements. Our accurate inspection tools, combined with skilled workers with strong self-inspection capabilities, and professional inspectors assigned to each production line, guarantee that every clamp leaving our factory is in perfect condition.

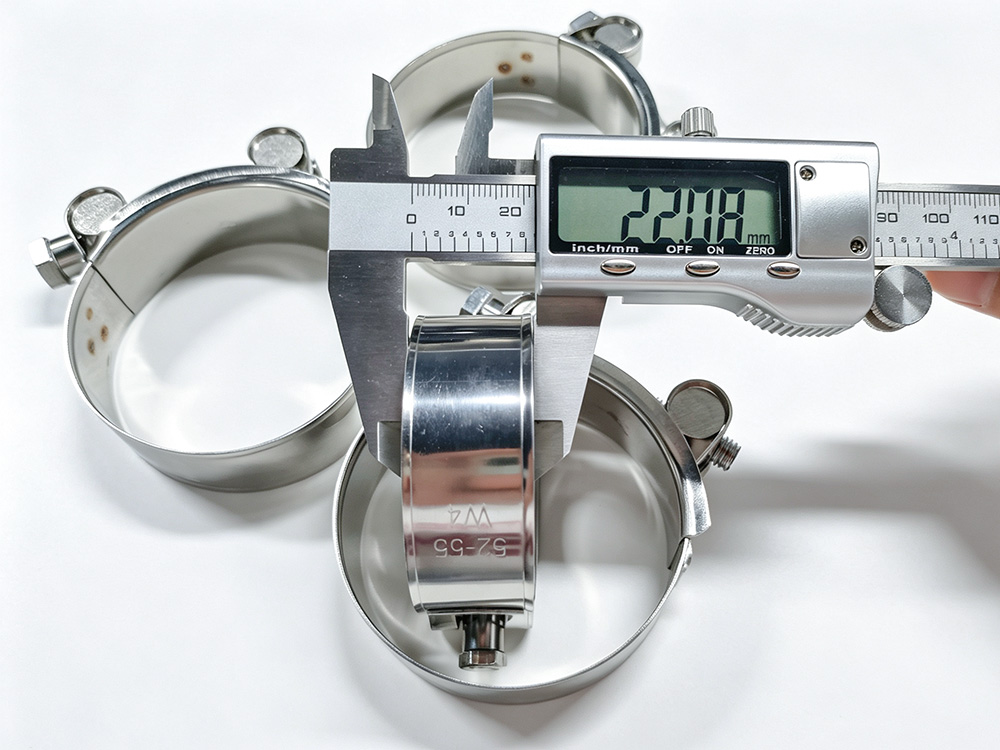

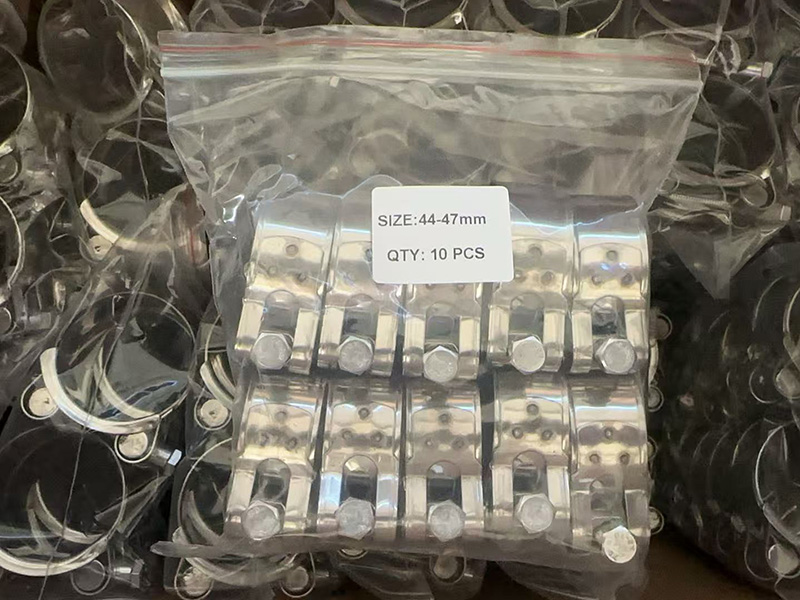

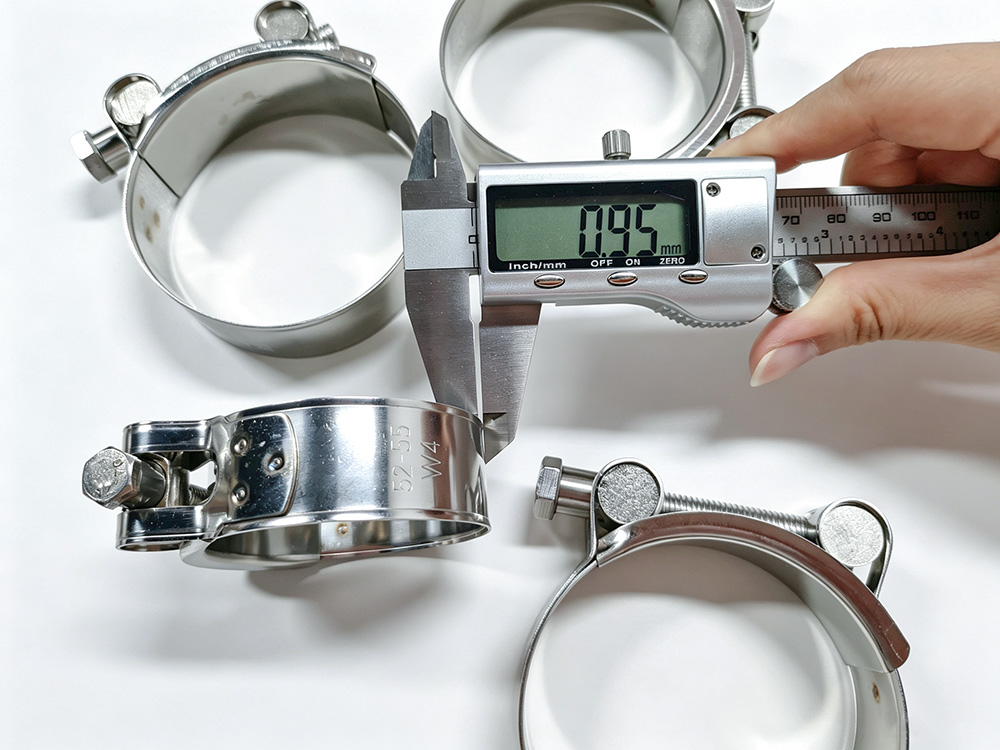

Solid Band Full Stainless Clamp Showcase

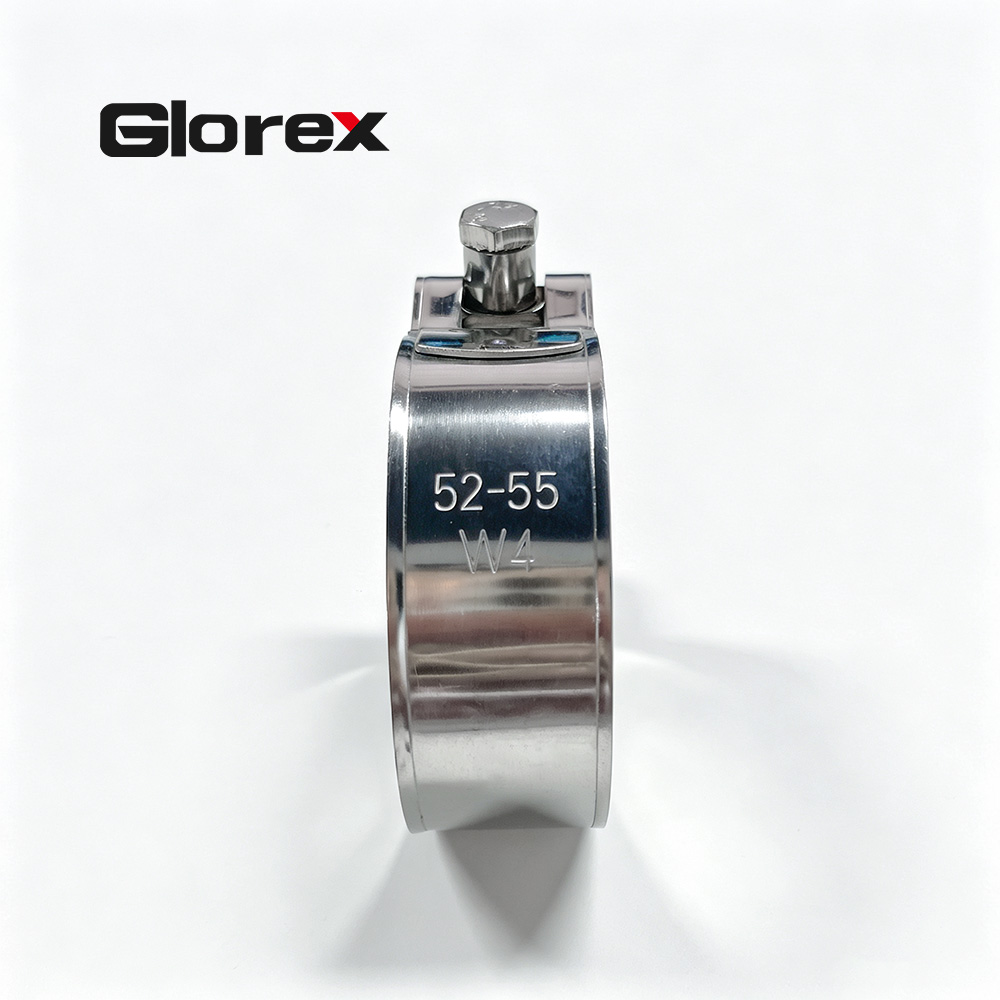

Stainless Steel Exhaust Pipe Clamps Specifications
Material Options
|
Material |
W1 |
W2 |
W4 |
W5 |
|
Band |
Zinc plated |
430/200ss/300ss |
300ss |
316 |
|
Bridge |
Zinc plated |
430/200ss/300ss |
300ss |
316 |
|
Sleeving |
Zinc plated |
Zinc plated |
300ss |
316 |
|
Trunnion |
Zinc plated |
Zinc plated |
300ss |
316 |
|
Bolt |
Zinc plated |
Zinc plated |
300ss |
316 |
Size Specifications
|
Band size (W1) |
Band size (W2、W4、W5) |
Size |
Bolt size |
pcs/carton |
carton size(cm) |
|
18*0.6 |
18*0.5 |
17-19mm |
M5*40 |
200 |
31*22*13 |
|
20-22mm |
200 |
31*22*13 |
|||
|
23-25mm |
200 |
30*25*12 |
|||
|
26-28mm |
200 |
36*25*12 |
|||
|
20*0.8 |
20*0.6 |
29-31mm |
M6*50 |
200 |
36*25*12 |
|
32-35mm |
200 |
36*25*15 |
|||
|
36-39mm |
200 |
36*25*15 |
|||
|
40-43mm |
100 |
27*22*12 |
|||
|
22*1.2 |
22*0.8 |
44-47mm |
M6*55 |
100 |
33*23*13 |
|
48-51mm |
100 |
33*26*14 |
|||
|
52-55mm |
100 |
33*26*14 |
|||
|
56-59mm |
100 |
33*26*15 |
|||
|
60-63mm |
100 |
33*28*16 |
|||
|
64-67mm |
M8*60 |
100 |
37*25*17 |
||
|
24*1.5 |
24*0.8 |
68-73mm |
100 |
40*28*19 |
|
|
74-79mm |
50 |
35*17*20 |
|||
|
80-85mm |
50 |
35*18*21 |
|||
|
86-91mm |
50 |
35*19*23 |
|||
|
92-97mm |
50 |
35*21*24 |
|||
|
98-103mm |
50 |
35*21*24 |
|||
|
104-112mm |
M8*70 |
50 |
35*24*27 |
||
|
113-121mm |
50 |
36*26*29 |
|||
|
122-130mm |
50 |
35*28*31 |
|||
|
26*1.7 |
26*1.0 |
131-139mm |
M10*85 |
50 |
37*30*33 |
|
140-148mm |
50 |
37*32*35 |
|||
|
149-161mm |
50 |
37*33*36 |
|||
|
162-174mm |
M10*105 |
25 |
37*37*38 |
||
|
175-187mm |
25 |
39*38*21 |
|||
|
188-200mm |
25 |
42*40*23 |
|||
|
201-213mm |
25 |
43*38*24 |
|||
|
214-226mm |
25 |
46*39*25 |
|||
|
227-239mm |
25 |
50*40*26 |
|||
|
240-252mm |
25 |
52*40*28 |
Custom sizes are available upon request, please contact us for details.
Solid Hose Clamps Application Areas
This heavy duty pipe clamp is suitable for a wide range of applications:

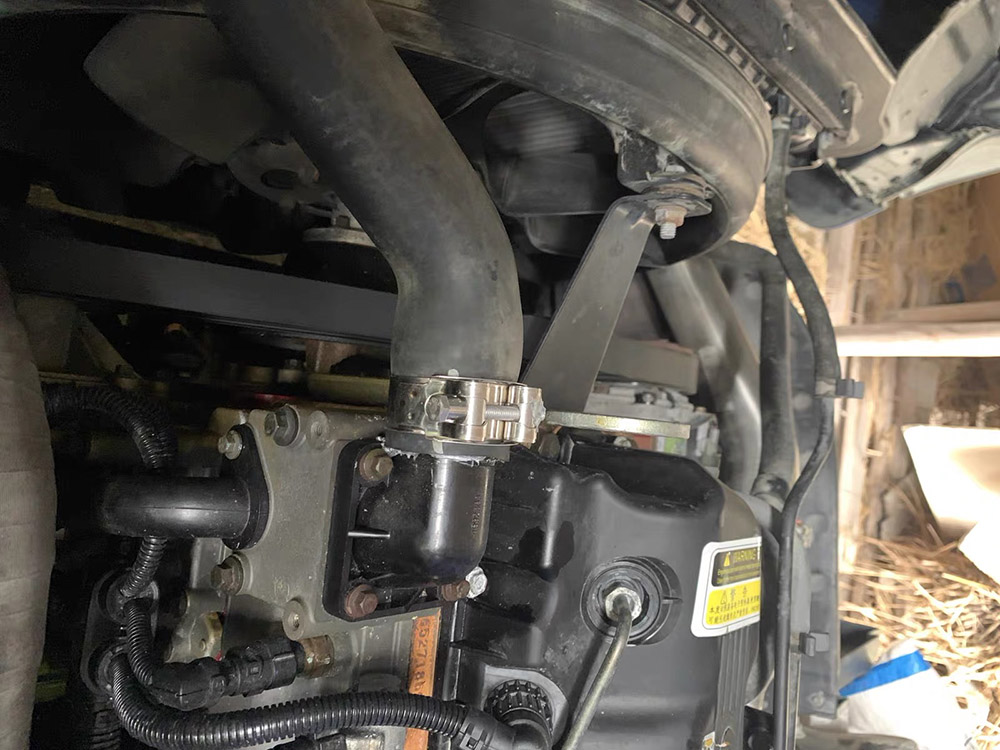

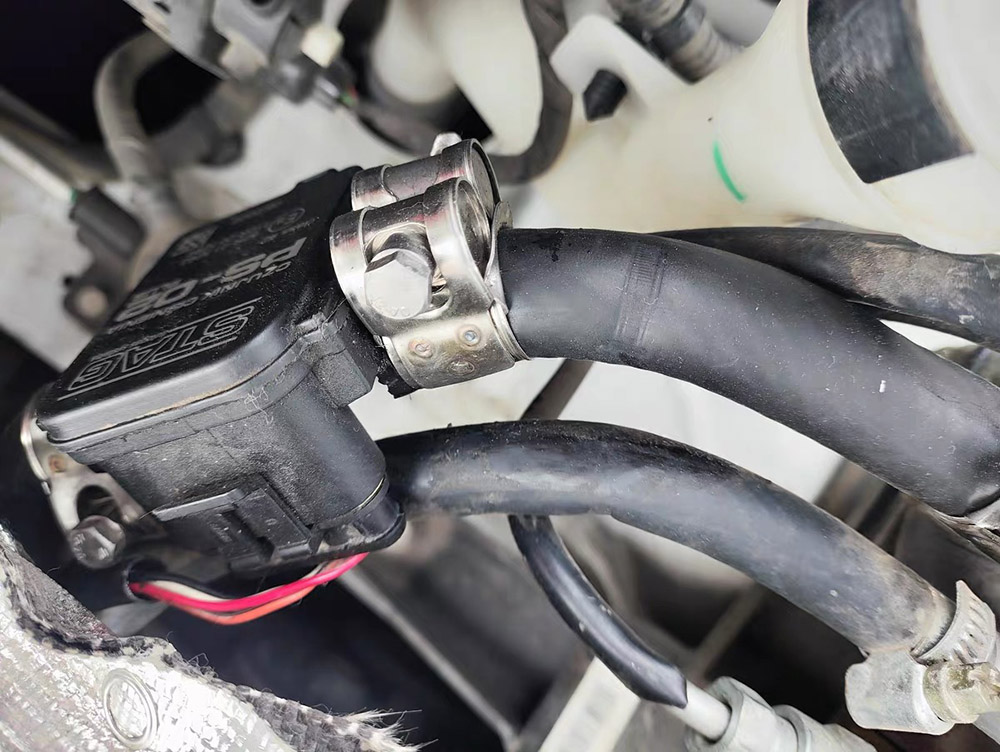

Automotive systems: including engine exhaust systems, cooling and heating systems, air intake systems
Military equipment: reliable fastening for demanding military applications
Agricultural applications: irrigation systems, agricultural machinery
Industrial systems: industrial drainage systems, machinery manufacturing, hydraulic systems
Special vehicles: thin wall pipe fastening, special vehicle pipeline systems
Stainless Steel Hose Clamp Shipping & Logistics
Located in Tianjin, we have great logistics advantages. We have established long-term cooperative relationships with major logistics companies, as well as Tianjin Airport, Xingang and Dongjiang Port. This allows us to deliver your orders to your designated address faster than ever, no matter where you are in the world.
Exhibition
Company Profile
Our products are widely used in various application areas, including: automotive, military, air intake systems, engine exhaust systems, cooling and heating systems, irrigation systems, industrial drainage systems.
We have a first-class sales, design, production, aftersale team to support your business. Our company has nearly 100 employees, among them, there are 15 pre and after sales service staff, 8 technicians (including 5 senior engineers) who can provide professional technical support. We have a sunny, pragmatic, upward company culture, focusing on providing the best products and service to our global customers.
Mika (Tianjin) Pipeline Technology Co., Ltd. We provide reliable and high quality pipe clamp products, ensure non-leakage seal for your pipeline systems.
FAQs

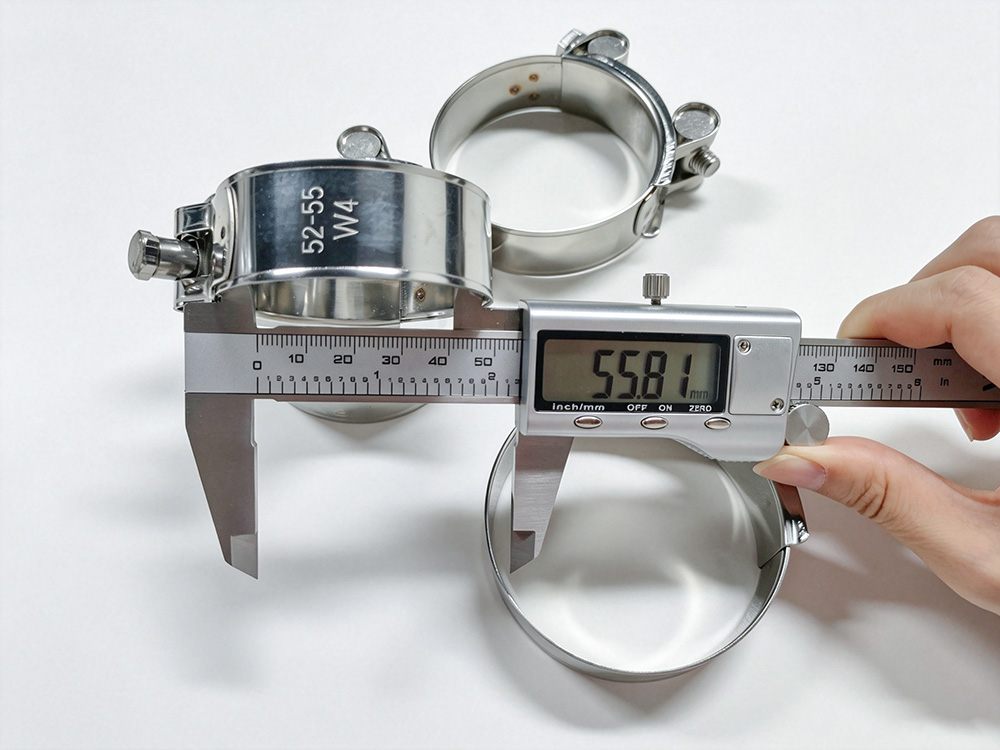

A: To choose the right size, you can measure the outer diameter of your hose or pipe when it is installed over the fitting. Our clamp's size range is designed to cover that measurement with extra adjustment room, so you can easily get a perfect and secure fit.
A: Absolutely. Our solid band full stainless clamp offers far better rust and corrosion resistance compared to regular plated clamps. It can work reliably in wet, outdoor, or even chemical-exposed environments, with a much longer service life, which saves you replacement costs in the long run.
A: Yes, this clamp is specially designed to withstand extremely high working pressure. The solid trunnion structure and even force distribution design ensure that it can maintain a tight seal even under high pressure, making it perfect for demanding applications like engine systems or industrial hydraulic systems.
A: No. Our clamp band has deburred smooth edges, which will not scratch or cut your rubber hoses during installation or use. The even force distribution also prevents concentrated pressure that could damage your hoses, so it works perfectly as rubber pipe clamps.
A: Yes, we support various custom services. We can customize the size of the clamp to fit your special pipeline, add your brand logo via laser engraving or stencil typing, and also provide custom packaging solutions to meet your business needs.
