Why Floor Mounting Brackets Matter in Cable Tray Systems
When you're running cable trays through a commercial building, industrial plant, or data centre, the weakest point in the system is often where the tray meets the floor. That's where floor mounting brackets come in.
These brackets do more than hold things in place. They transfer the weight of the tray, the cables inside it, and any dynamic loads from the floor slab to the supporting structure. Get the bracket wrong, and you'll see sagging trays, cracked welds, or worse—cable damage that costs thousands to fix.
For pre-galvanised wire cable trays and basket trays, the bracket choice gets a bit more specific. The tray itself is lightweight and flexible, so the bracket needs to provide rigid support without introducing galvanic corrosion at the contact points.
What to Look for in a Pre-Galvanised Floor Bracket
If you're specifying brackets for a basket tray installation, here are the practical things that matter:
Material compatibility. Pre-galvanised steel (also called mill-galvanised) has a thin zinc coating. Your bracket should either match that finish or use a compatible material like hot-dip galvanised steel or stainless steel. Mixing metals carelessly can accelerate corrosion in damp or outdoor environments.
Load path. A good floor bracket directs the load straight down into the slab. Avoid designs that create bending moments or rely on small weld points to carry the weight.
Adjustability. Real installations are never perfectly level. Brackets with slotted holes or threaded adjustment let you fine-tune tray height without shimming or re-drilling.
Fastener quality. The bracket is only as strong as the bolts holding it. Look for stamped or forged brackets that accept standard M8 or M10 fasteners, and always use corrosion-resistant hardware.
Installation Notes for Basket Tray Floor Fixings
Installing floor brackets for wire mesh trays is straightforward if you follow a few field-tested practices:
Set out your bracket spacing based on the tray manufacturer's load tables. For basket tray, typical support spacing is 1.5 m to 2 m, but heavy cable loads require closer spacing.
Drill and anchor correctly. Use mechanical anchors rated for the substrate—concrete, steel, or composite deck. Don't rely on plastic plugs for load-bearing applications.
Check the tray alignment before final tightening. Wire trays are flexible; once you fix the brackets, the tray will follow their line.
Torque to spec. Over-tightening can crush the wire mesh or deform the bracket. Under-tightening leads to vibration loosening.

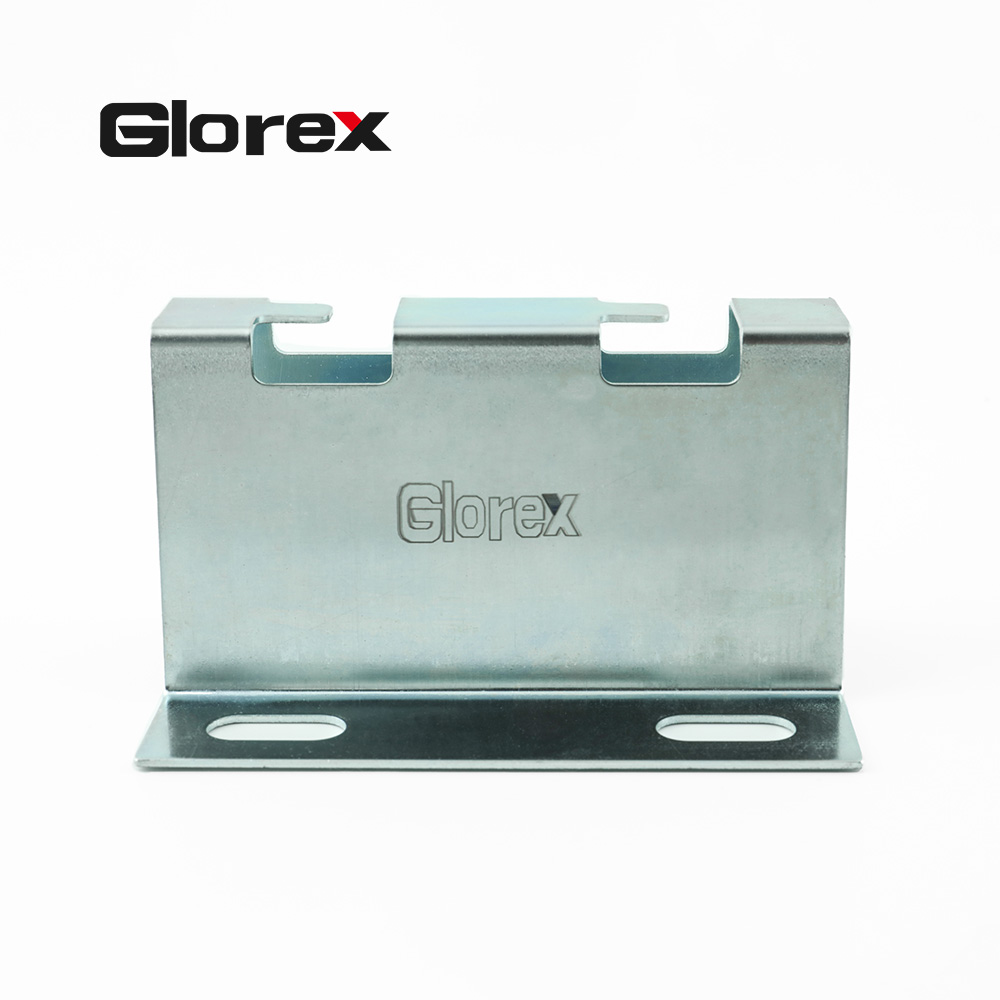

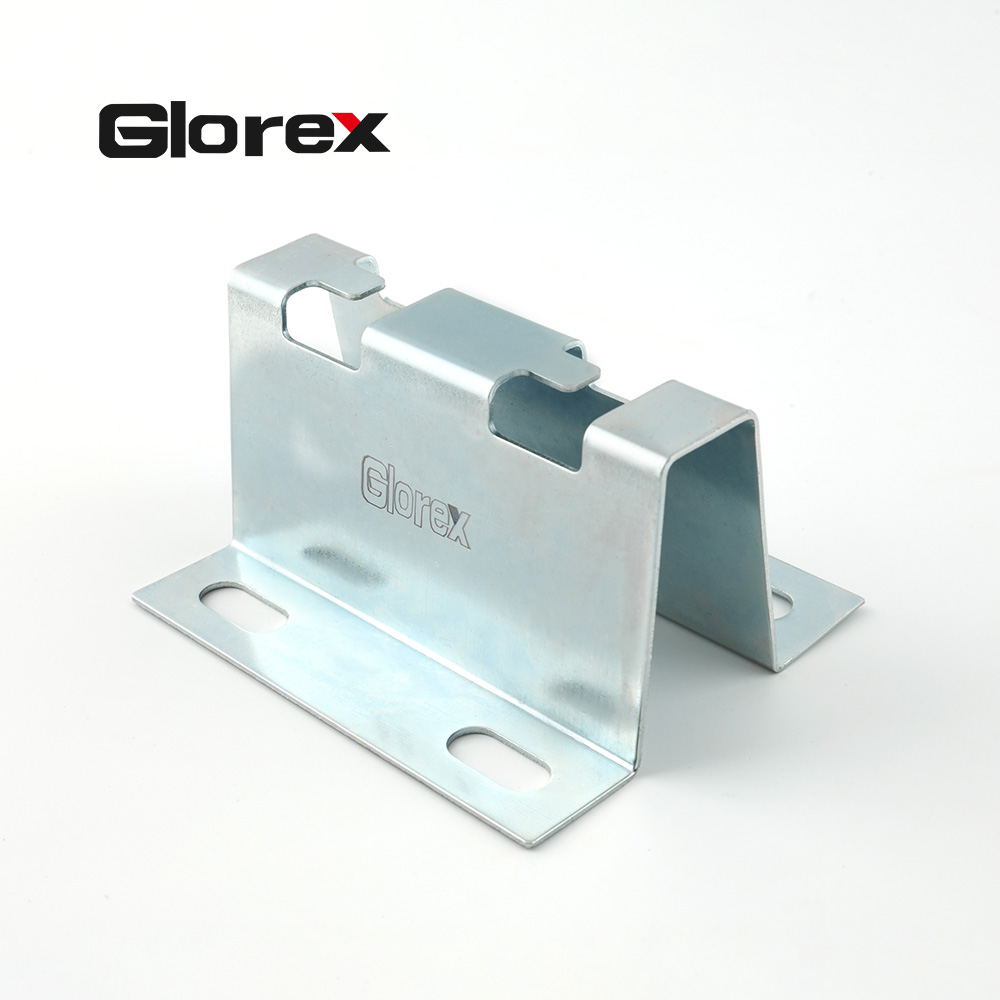

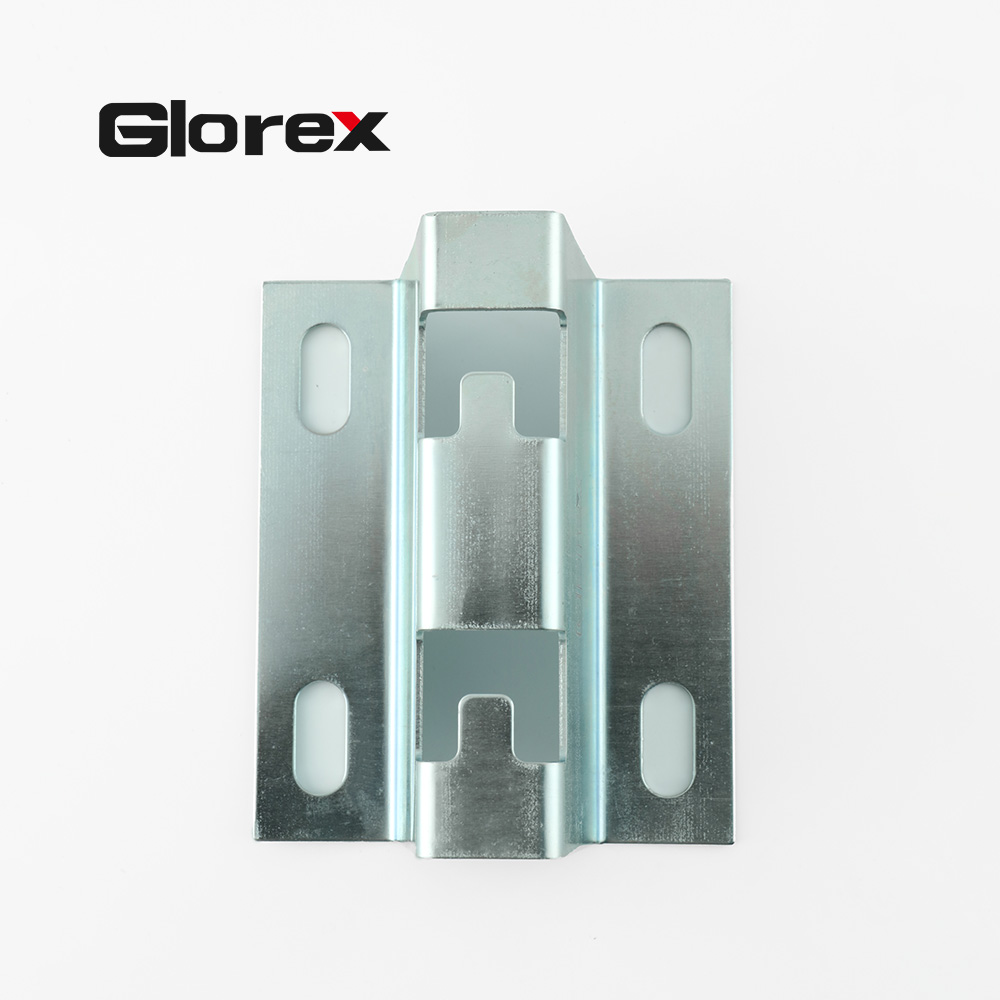

For a reliable pre-galvanised floor bracket designed specifically for steel wire cable trays and basket trays, you can view the product here: Pre-Galvanised Fix Floor Bracket for Basket Tray.
About Us
Mika (Tianjin) Pipeline Technology Co., Ltd.We provide reliable and high quality pipe clamp products，ensure non-leakage seal，application areas include：automotive, military, air intake systems, engine exhaust systems, cooling and heating systems, irrigation systems, industrial drainage systems.We have a first-class sales, design, production, aftersale team，Our company has nearly 100 employees, among them, there are 15 pre and after sales, 8 technicians (including 5 senior engineers), We have a sunny, pragmatic, upward company culture.
Certificate
FAQ
Q: Can I use these floor mounting brackets outdoors?
A: Yes, if the bracket and fasteners are suitable for the environment. Pre-galvanised brackets work in sheltered outdoor areas. For direct rain exposure or coastal sites, specify hot-dip galvanised or stainless steel brackets.
Q: What's the difference between a quick-fix floor bracket and a fixed floor bracket?
A: A quick-fix bracket allows faster installation, often with a single anchor point and a slotted connection. A fixed bracket is more rigid and is used where precise alignment or higher load capacity is required.
Q: Do these brackets fit all basket tray sizes?
A: Most brackets are designed for common wire tray widths (50 mm to 200 mm). Check the bracket's slot spacing and the tray's wire pitch. Custom sizes are available on request.
Q: How do I prevent corrosion at the bracket-to-tray connection?
A: Use compatible metals, avoid bare steel contact in damp areas, and apply a zinc-rich touch-up coating to any cut edges or drilled holes.
Q: Can I order samples before placing a bulk order?
A: Yes. We provide samples for evaluation so you can verify fit, finish, and load performance before committing to a full production run.
