In the demanding world of industrial pipelines and fluid transfer systems, the integrity of every connection is non-negotiable. A minor leak or a loose hose can lead to significant downtime, safety hazards, and costly repairs. This is where the choice of a high-quality clamping solution becomes paramount. Enter the Germany Type Hose Clamp, a design revered for its robust construction and reliable performance, particularly when manufactured to the stringent DIN3017 standard.

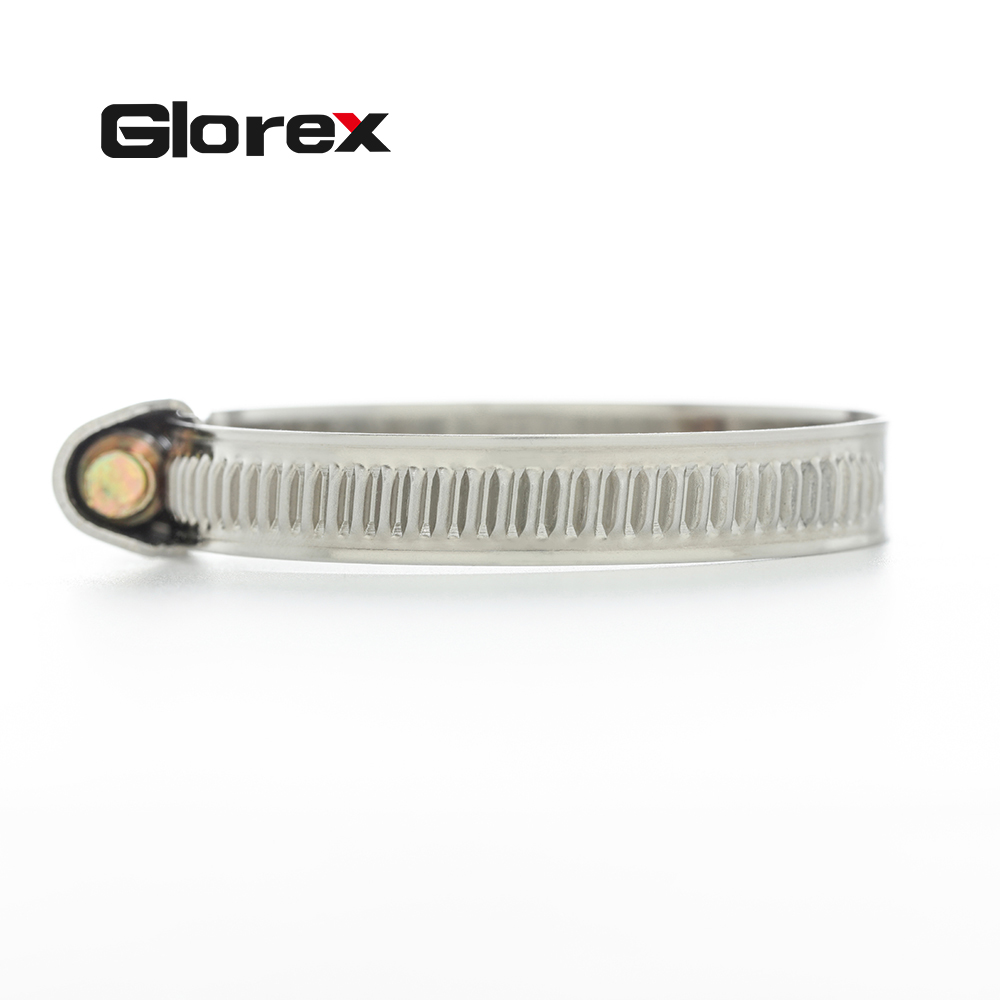

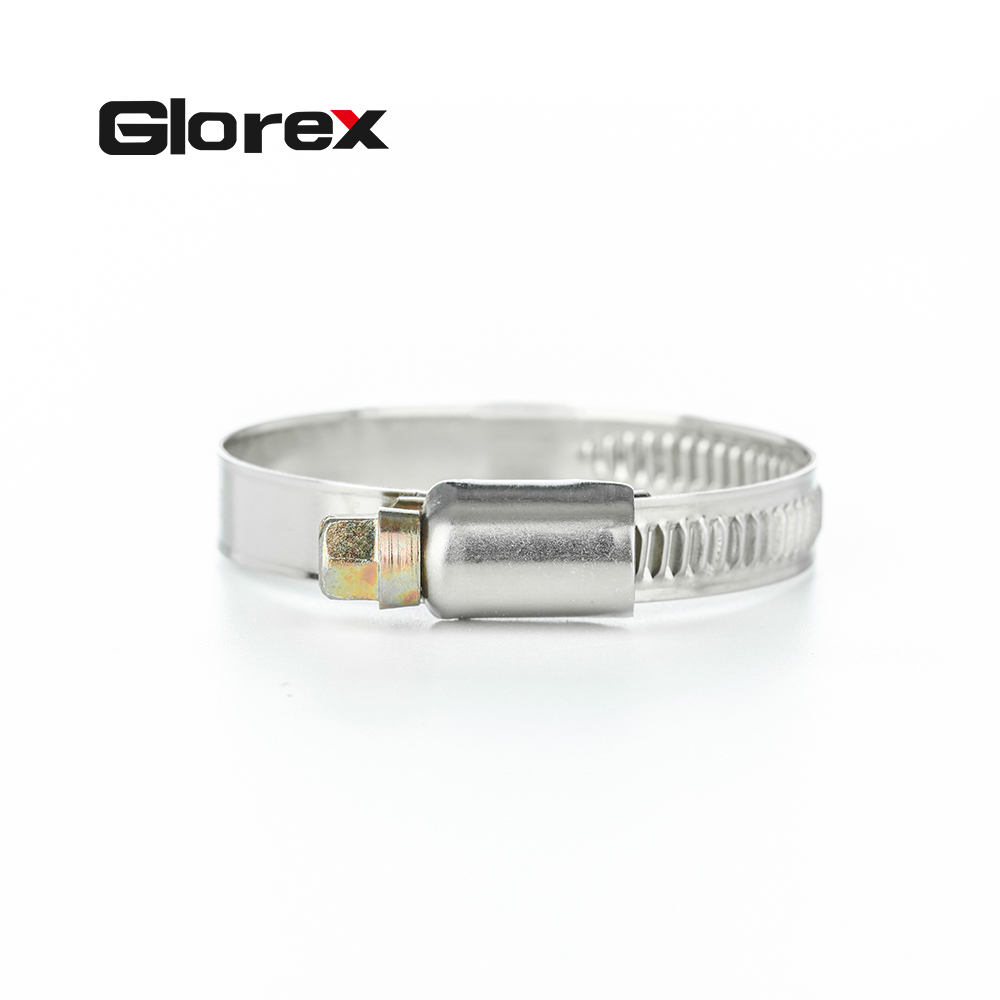

What Defines a DIN3017 Germany Type Hose Clamp?
The "Germany Type" designation, often associated with the DIN3017 specification, represents a specific design philosophy focused on strength and hose preservation. Unlike simple worm-drive clamps, these clamps are distinguished by several key engineering features.
At Glorex, our industrial-quality clamps are precision-engineered to meet the highest standards. A primary feature is the extruded tooth design on the inner band. This is a critical detail; instead of sharp edges that can bite into and weaken the hose material, these smooth, extruded teeth provide a firm, non-slip grip. This engagement ensures the hose remains securely fastened without the risk of being pinched, abraded, or cut during installation or when final torque is applied. The result is a secure, consistent seal that maintains the structural integrity of the hose over its entire service life.
Furthermore, these clamps are available in 9mm and 12mm bandwidths, offering versatility for various hose sizes and pressures. The band’s design also contributes to a "fixing effect" that actively prevents the hose from retracting or slipping off the fitting, a common issue in applications involving vibration or thermal cycling.
Material Options: Matching the Clamp to the Environment
To cater to the diverse conditions found in industrial settings, these clamps are manufactured in a range of material combinations, often categorized by W-series standards. Glorex provides full transparency on material options, ensuring you select the right clamp for your specific needs.
| Material Code | Hoop & Shell Material | Screw Material | Key Properties | Ideal Application |
|---|---|---|---|---|
| W1 | Iron (Galvanized) | Iron (Galvanized) | Cost-effective, basic corrosion protection | General, non-corrosive indoor environments |
| W2 | 200/300 Series Stainless Steel | Iron (Galvanized) | Good corrosion resistance with cost savings in mind | Automotive underhood, light industrial |
| W4 | 200/300 Series Stainless Steel | 200/300 Series Stainless Steel | Excellent rust resistance, high strength | Marine, outdoor, and most demanding industrial settings |
| W5 | 316 Stainless Steel | 316 Stainless Steel | Superior resistance to corrosion, chemicals, and saltwater. Maximum durability. | Chemical plants, offshore, food processing |
This comprehensive selection allows engineers and procurement specialists to balance cost and performance, guaranteeing a reliable connection that withstands the specific challenges of their operation.
Key Advantages and Application Fields
The Glorex DIN3017 clamp series is not just a component; it is an investment in system reliability. The primary advantages are clear:
Sturdy and Durable: Built from high-grade materials (e.g., 304SS) with a polished finish for added protection.
Hose Protection: The crimped edges on both sides and the extruded teeth safeguard the hose from damage during installation.
Reusability: Unlike some clamps that are one-time use, these can be reused, providing long-term cost savings and environmental benefits.
This combination of features makes them the go-to choice across a broad spectrum of industries, including:
Automotive Industry: For securing coolant, fuel, and vacuum lines.
Machinery & Equipment: Used in hydraulic systems, pneumatic circuits, and cooling systems.
Shipbuilding: Widely employed for various fluid and gas lines where reliability is critical in a harsh environment.
Conclusion: A Reliable Partnership for Your Pipeline Needs
Choosing the correct hose clamp is a critical decision for system reliability and operational efficiency. Glorex, as a professional manufacturer, provides a range of DIN3017 Germany type hose clamps that deliver on performance, quality, and durability. From the robust material selection to the thoughtful design details, every aspect is tailored for a long-lasting, secure seal.
Explore the full specifications and find the perfect clamp for your application: Radiator Hose Clamps
