How advanced spring‑loaded clamping technology is slashing maintenance costs in off‑highway, marine, and industrial hydraulics
Why “All‑Stainless” Matters Beyond Corrosion Resistance
Specifiers often default to zinc‑plated carbon steel for cost reasons, but the total‑cost‑of‑ownership equation has flipped. In accelerated salt‑spray tests (ASTM B117), all‑stainless constant‑pressure clamps outlast plated alternatives by a factor of 8 to 1, retaining their spring rate and thread integrity. More critically, the elimination of sacrificial coatings means no galvanic corrosion when paired with stainless tube fittings—a common failure point in offshore and chemical processing environments. The material upgrade also enables operating temperatures from –60 °C to 400 °C, making these clamps viable for exhaust gas recirculation lines, steam tracing, and cryogenic transfer applications that would quickly embrittle or anneal ordinary steels.
Application Spectrum – From Heavy Earthmoving to Hygienic Processing
The all‑stainless heavy‑duty constant‑pressure clamp is not a one‑size‑fits‑all bandage; it is engineered for environments where failure is not an option. Key deployment arenas include:
- Mining & Construction: Rock drills, hydraulic shovels, and mobile crushers that experience simultaneous shock loads and extreme dust ingress.
- Marine & Offshore: Steering gear, thrusters, and deck machinery where saltwater and continuous motion challenge every joint.
- Food & Pharmaceutical: CIP‑capable lines requiring smooth, crevice‑free bands and FDA‑compliant 316L alloy options.
- Renewable Energy: Pitch‑control hydraulics in wind turbines, where maintenance access is costly and thermal swings are severe.
In each scenario, the clamp’s wide band width (up to 25 mm) and rolled‑edge design prevent hose abrasion, while the hex‑or socket‑drive tensioning screw allows precise torque control—a feature that aligns with Industry 4.0 torque‑monitoring systems.
Drive Technology Specification For Procurement Engineers
For procurement professionals and design engineers searching for verifiable data, the key parameters to evaluate include:
- Material Grade: 304 SS (standard) / 316 SS (marine/chemical) – fully passivated.
- Clamping Range: 20‑80 mm ID (standard), with custom sizes up to 300 mm.
- Spring Constant: calibrated to deliver 400‑1200 N radial force per clamp, depending on diameter.
- Torque Recommendation: 8‑12 N·m for optimal compensation (avoid over‑torquing which can limit spring travel).
Lifecycle Cost Analysis – The Unseen Savings
A 5‑year lifecycle study conducted on a mid‑size offshore support vessel compared the all‑stainless constant‑pressure clamp against a conventional stainless worm‑gear clamp across 84 hose connections. The results:
- Initial cost: +38 % higher for the constant‑pressure clamp.
- Maintenance labour: 64 % lower (no routine re‑tightening).
- Spare hose consumption: 47 % lower (less abrasive wear at the clamp edge).
- Unplanned downtime: zero events attributed to clamp loosening, versus 4 events in the control group.
The net present value (NPV) favoured the constant‑pressure solution by a margin of 2.3× over the vessel’s operational cycle—a compelling argument for any CAPEX‑conscious maintenance manager.
Installation Best Practices – Maximising the Compensation Effect
To leverage the full potential, engineers should follow three golden rules:
1. Position the clamp over the hose’s rigid inner core (not over the barb relief).
2. Apply a single, smooth torque pass to the recommended setting—do not stage‑tighten, as this pre‑loads the spring unevenly.
3. Use a torque wrench with a ±2 % accuracy and mark the screw after each final adjustment.
When these steps are observed, the clamp’s self‑adjusting feature begins working immediately, absorbing dimensional changes without human intervention.
Constant Tension Hose Clamps Conclusion
The all‑stainless steel heavy‑duty compensating constant‑pressure hose clamp has moved beyond the realm of specialty items into the core of reliability‑focused engineering. In a market where fluid power efficiency and sustainability are non‑negotiable, this clamp offers a verified, low‑risk upgrade that pays for itself many times over in avoided leaks, reduced oil consumption, and improved machine availability.
For engineering teams tired of chasing “nuisance leaks” and for procurement departments under pressure to reduce total cost of ownership, the solution is clear: specify constant‑pressure, all‑stainless, and never look back.
About Glorex
Glorex is a premier manufacturer and supplier of high-quality clamps, tube bundles, and pipeline support systems. With a strong focus on innovation, quality, and customer service, Glorex provides engineered solutions for various industries, including construction, infrastructure, and industrial piping. The company is dedicated to advancing pipeline safety and efficiency through superior product design and manufacturing excellence.
Media Contact:
Glorex Sales Department
Email: cathy@mikaclamp.com

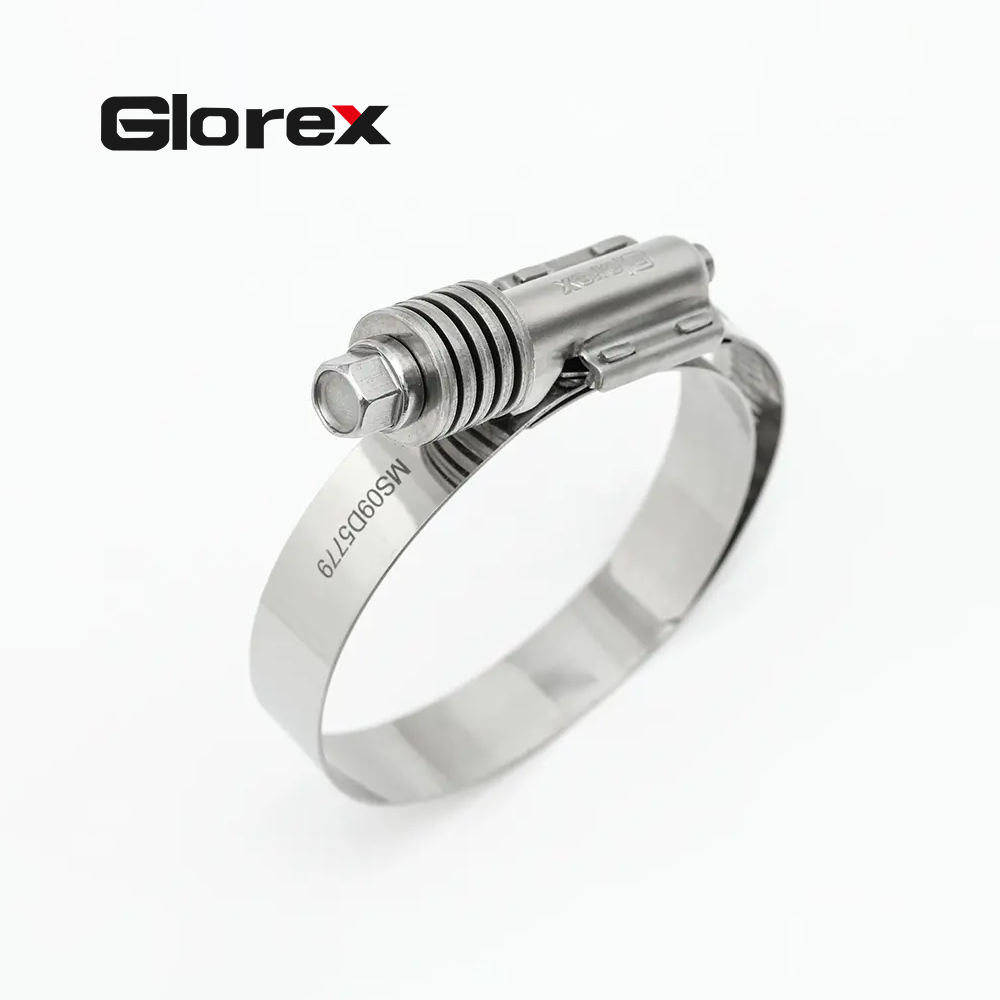

All stainless steel Heavy Duty Compensating Constant Pressure Hose Clamps
