Introduction

In the demanding worlds of automotive engineering and industrial piping, a connection is only as strong as the clamp that secures it. For high-pressure, high-vibration applications, the American Standard 304 Stainless Steel Hose Clamp stands as the premier choice for professionals who demand reliability and safety. This guide delves into the engineering, advantages, and selection criteria of the heavy-duty 12.7mm worm drive hose clamp, explaining why it is the superior fastening solution for critical systems.

What Defines an American-Style Hose Clamp?

The American-style worm drive clamp is distinguished from its German counterpart by several key design features aimed at maximum holding power. Engineered for high-stress environments, its design incorporates a wider 12.7mm stainless steel band, a unique through-hole or perforated slot design, and robust one-piece housing.

Unlike standard clamps, the American type is built to withstand high installation torque—up to 12Nm—without distortion. This capability makes it indispensable for applications like turbocharger systems, heavy machinery, and large-diameter piping where constant thermal cycling and vibrations are prevalent.

Advantages of the 304 Stainless Steel Construction

Material selection is critical in fastening solutions. The choice of 304 stainless steel for these clamps offers a suite of benefits:

Superior Corrosion Resistance: 304 stainless steel provides excellent resistance to oxidation, chemicals, and moisture, making it ideal for marine, outdoor, and chemical environments.

Enhanced Durability: It withstands higher temperatures and harsh conditions better than other materials, ensuring a long service life.

Cost-Effective Alternative: For less demanding applications, a 201 stainless steel option is also available, providing good rust resistance at a more budget-friendly price point, suitable for general automotive and indoor use.

Key Features and Engineering Excellence

The design of the 12.7mm American hose clamp focuses on solving common failure points in hose connections:

Wider Band (12.7mm): The broader surface area ensures uniform clamping force distribution around the entire hose circumference. This eliminates leak paths and prevents damage to softer hose materials.

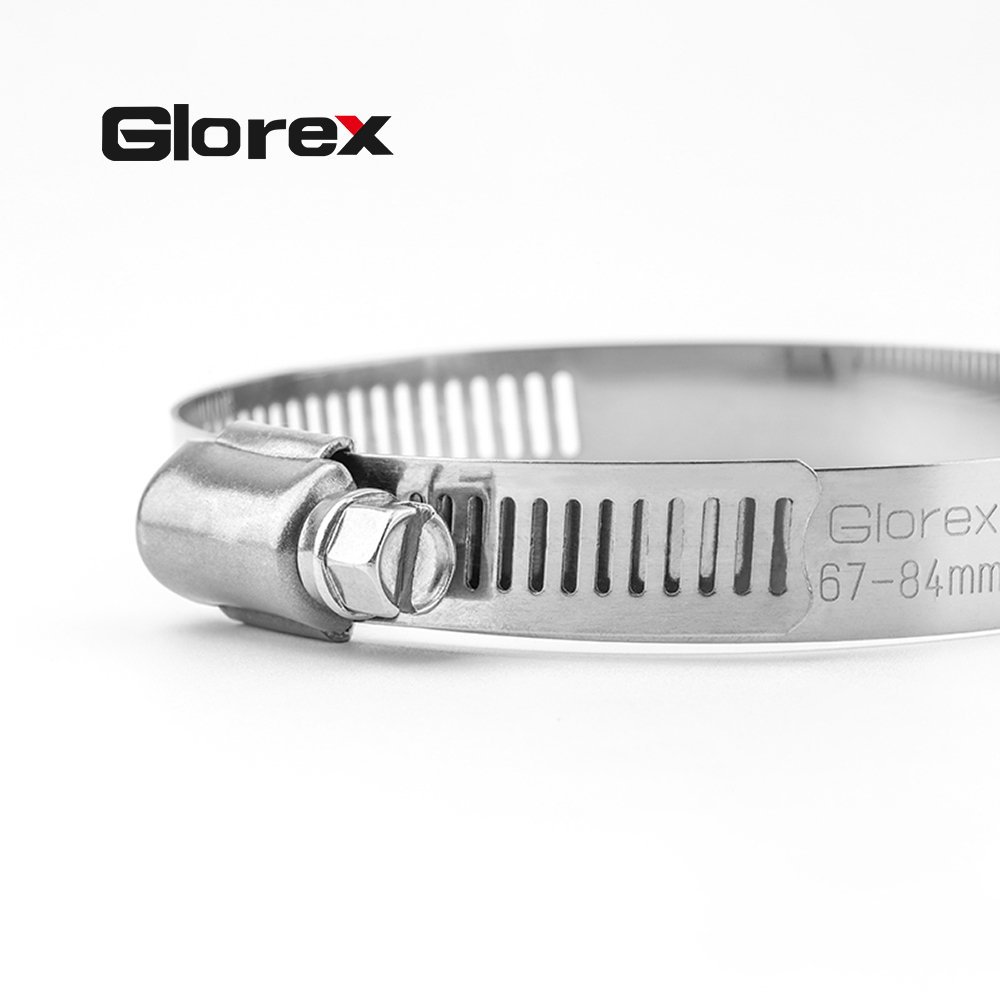

Perforated Slot Design: The through-hole design of the band not only allows for a tighter, more aggressive grip but also serves as a visual indicator of the clamping tension, ensuring a secure lock.

Dual-Slotted Hex-Head Screw: This allows for convenient installation using a flathead, Phillips, or hex socket, providing flexibility during assembly and maintenance.

One-Piece Riveted Housing: This robust construction provides superior structural integrity, preventing the housing from spreading under high torque loads.

Versatile Application Across Industries

The wide adjustment range of these clamps, from 10mm to 180mm, makes them incredibly versatile. They are the go-to solution for:

Automotive: Securing turbocharger hoses, fuel lines, radiator hoses, and coolant pipes.

Industrial: Connecting hydraulic lines, pneumatic systems, and heavy-duty piping.

Agriculture & Construction: Used in irrigation systems and on heavy machinery.

Marine: Resistant to corrosion, making them perfect for engine and deck fittings.

Selection Guide: How to Choose the Right Clamp

Selecting the correct clamp is vital for optimal performance. Follow these steps:

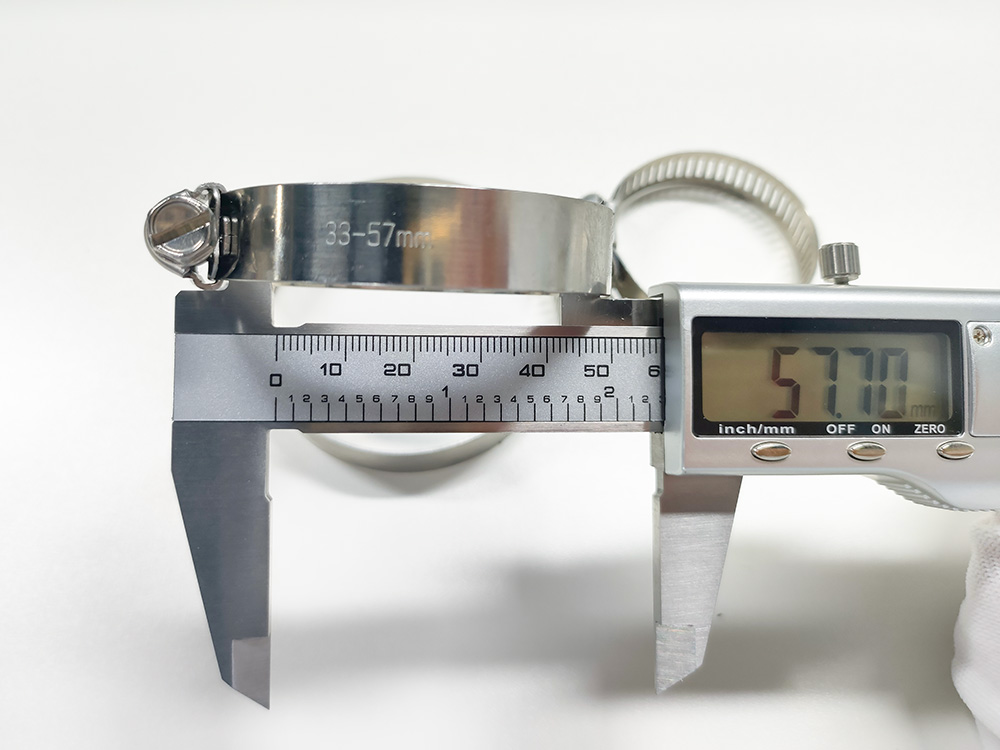

Measure the Hose Outer Diameter (OD): Measure the hose's outer diameter while it is installed over the fitting (in its working state).

Find the Optimal Range: Select a clamp whose diameter range comfortably encompasses your measured OD. For example, if your hose OD is 70mm, a clamp with a range of 64-76mm or 65-89mm is ideal to ensure proper sealing and adjustment.

Choose the Correct Material: Select 304 stainless steel for highly corrosive environments, 201 stainless steel for general use, or galvanised steel for light-duty indoor applications.

Product Specifications at a Glance

Our comprehensive range of 12.7mm American Hose Clamps ensures a perfect fit for any project. All models share the same robust construction, a bandwidth of 12.7mm, and a recommended installation torque of 12Nm to ensure consistent quality.

Diameter Range (mm)	Bandwidth (mm)	Installation Torque (Nm)	Material Options	Surface Finish	Band Thickness (mm)
10-16 to 160-180	12.7	12	304 / 201 Stainless Steel	Polished	0.65

(Note: A full list of 21 size variants, from 10-16mm to 160-180mm, is available upon request to ensure a perfect fit for your application.)

Installation Best Practices

For optimal performance, always use a torque wrench to achieve the recommended 12Nm installation torque. This ensures the clamp is tight enough to secure the connection and prevent leaks, but not so tight as to damage the hose or clamp. The dual-slotted hex head allows for easy adjustment from multiple angles, ensuring a secure fit even in tight engine bays.

Conclusion

The American Standard 304 Stainless Steel Hose Clamp is more than just a fastener; it is a critical component for ensuring safety, preventing downtime, and extending the life of your equipment. By choosing a high-quality clamp from a reliable manufacturer, you are making a long-term investment in the integrity and performance of your systems.

Why Choose Glorex?

Located in Tianjin, China, Glorex (Mika Pipeline Technology Co., Ltd) is a leading manufacturer dedicated to high-performance pipe clamping solutions. Our commitment to quality is demonstrated through our strict end-to-end control, from precision tooling to rigorous testing. We provide one-on-one technical support to help you select the perfect clamp for your specific operating conditions, ensuring you receive a product that meets the highest standards of performance and reliability.

Media Contact:

Glorex Sales Department
Email: cathy@mikaclamp.com
Phone: 0086-18322014703
Website: https://www.glorexclamp.com

FAQS

Q1: What is the difference between American-style and German-style hose clamps?

A: American-style clamps feature a wider 12.7mm band and a through-hole thread design, providing greater clamping force for high-torque applications like turbochargers. German-style clamps have a narrower band and a smooth inner surface, ideal for soft hoses where even pressure distribution is critical.

Q2: How do I select the correct clamp size for my hose?

A: Measure the outer diameter (OD) of your hose when it is fitted over the connection. Choose a clamp whose diameter range covers this measurement, ensuring your OD falls comfortably in the middle of the range for optimal sealing.

Q3: Are these clamps suitable for fuel and gas lines?

A: Yes. The 304 stainless steel option offers excellent compatibility with a wide range of fluids, including fuels, oils, and chemicals, making it a reliable choice for automotive and industrial fuel and gas lines.

Q4: Can I get custom sizes or materials like 316 stainless steel?

A: Absolutely. We offer customization services for diameter ranges, band widths, materials (including 316 stainless steel on request), and surface treatments to meet unique application requirements.
