In the world of fluid and air management—whether in a high-performance vehicle engine, a military-grade generator, or a commercial irrigation system—the weakest point is often the connection. A single leak can lead to system failure, costly downtime, or safety hazards.
While traditional worm-gear clamps have served industry for decades, the demand for higher precision and reliability has driven a shift toward stepless crimp clamps. This article explores the mechanics of the 300 Series Stainless Steel Single Ear Stepless Hose Clamp and why it has become the gold standard for engineers who cannot afford failure.
The Problem with “Stepped” Technology
To understand the value of a stepless design, one must first understand the flaw in conventional clamps. A standard worm-gear clamp operates via a screw mechanism that tightens a band with a series of perforations or "steps." When tightened, these steps can crimp the hose material unevenly. Furthermore, the screw housing creates a localized pressure point rather than distributing force evenly.
Over time, vibration and thermal cycling—common in automotive and industrial environments—can cause the screw to back off, leading to a loss of torque and, eventually, a leak.
The Stepless Solution: Uniform Pressure Distribution
Stepless crimp clamps, specifically the single-ear design, eliminate these variables. Instead of a screw mechanism, these clamps use a deformable "ear" that is mechanically crimped down. This action tightens the clamp without the need for a threaded band.
The primary advantage here is the true 360° seal. Because the inner circumference of the band is perfectly smooth, there are no steps or gaps to compromise the seal. When the ear is crimped, the clamping force is distributed uniformly around the entire hose surface. This prevents the "cold flow" or creep that can occur in hoses clamped with localized pressure points.
Why 300 Series Stainless Steel?
Material selection is just as critical as the design. The 300 series stainless steel used in Glorex clamps offers a specific balance of properties that are ideal for demanding applications:
Corrosion Resistance: It withstands exposure to road salt, coolant additives, and humidity, making it suitable for automotive under-hood environments.
Thermal Stability: The material maintains its mechanical integrity across a wide temperature range, which is essential for engine components that undergo constant heating and cooling cycles.
Edge Protection: A detail often overlooked is the edge grinding process. By removing burrs and sharp corners, these clamps prevent the band from cutting into soft silicone or rubber hoses during installation, significantly extending the hose assembly's lifespan.
Key Applications and Performance Features
The design of these clamps addresses specific pain points in various industries:

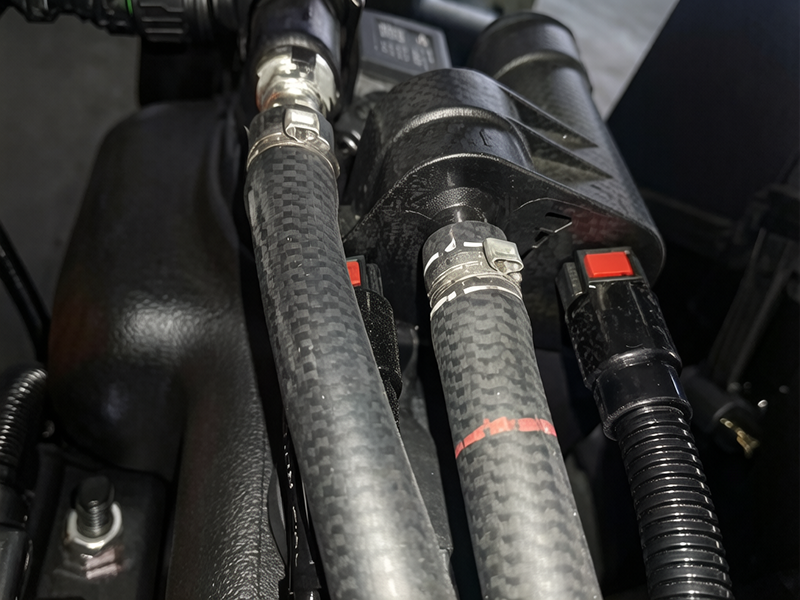

Automotive & Engine: For intercooler hose clamps and coolant lines, the "ear" acts as a spring element. As the hose expands with heat, the ear absorbs the dimensional shift, maintaining consistent surface pressure. This built-in thermal compensation prevents leaks during cold starts and high-temperature operation.
Military & Defense: In tactical vehicles and field equipment, the absence of a screw mechanism means there is no risk of loosening under severe vibration. The low-profile design also reduces the risk of snagging on wires or debris.
Industrial & Irrigation: For gas hose clamps and irrigation manifolds, the tamper-resistant nature of the crimped ear is a benefit. Once installed, the connection is secure and less likely to be inadvertently adjusted by unauthorized personnel.
Factory-Direct Engineering Support
When sourcing stepless O clip clamps, working directly with a manufacturer provides distinct advantages. Glorex, operating out of the logistics hub of Tianjin, controls the production chain from raw material to final inspection.
This factory-direct model allows for:
Customization: Adjustments to clamping ranges and band widths are possible for specific OEM applications.
Traceability: Batch numbers on packaging ensure material traceability, with test reports available upon request.
Technical Consultation: With a team of senior engineers on staff, customers receive guidance on selecting the correct clamp size to ensure the hose outer diameter falls within the optimal clamping range.
About Glorex
Mika (Tianjin) Pipeline Technology Co., Ltd (Glorex) is a specialized manufacturer of pipe clamp products. Located in Tianjin, a designated international transportation hub, the company leverages its strategic position to serve global markets. With a focus on reliable, non-leakage sealing solutions, Glorex serves the automotive, military, air intake, and industrial drainage sectors. The company maintains a technical support team and a culture of continuous improvement to solve customer challenges from specification to installation.
Certificate
FAQ
Q: What is the difference between a stepless clamp and a worm-gear clamp?
A: Worm-gear clamps use a screw and a band with steps or perforations, creating uneven pressure. Stepless clamps use a smooth band and a deformable ear, providing uniform 360° compression without steps that can damage the hose or localized pressure points.
Q: Are these clamps reusable?
A: No. Single ear stepless clamps are designed for one-time installation. The ear deforms plastically during crimping. Removing it compromises the seal integrity, so a new clamp should be used for service.
Q: How do I choose the correct size?

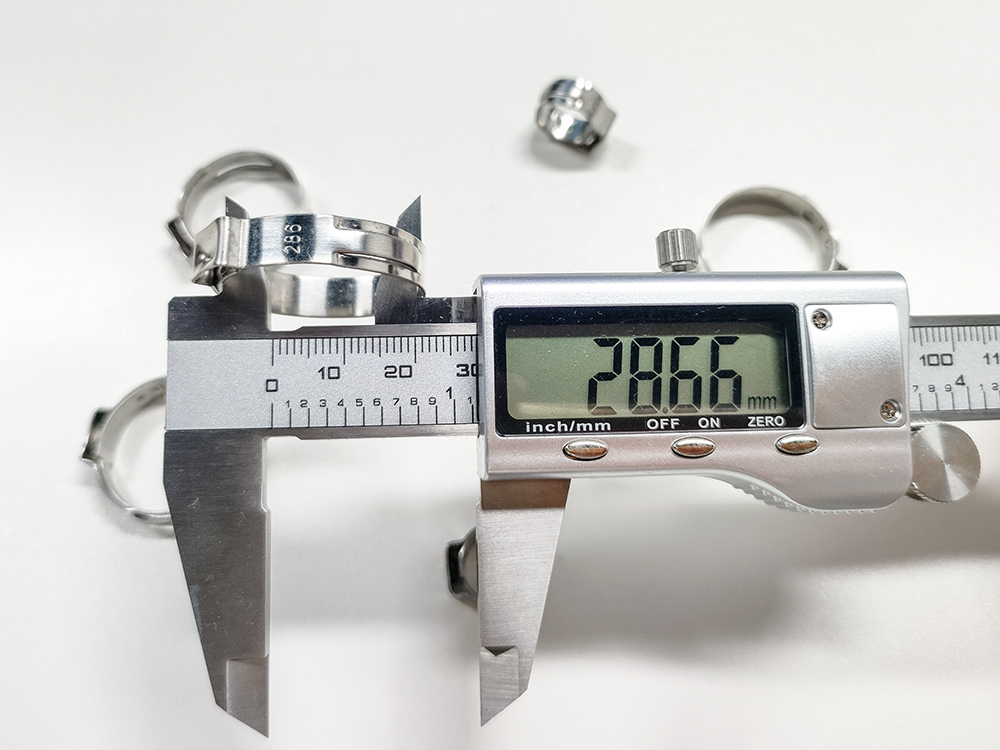

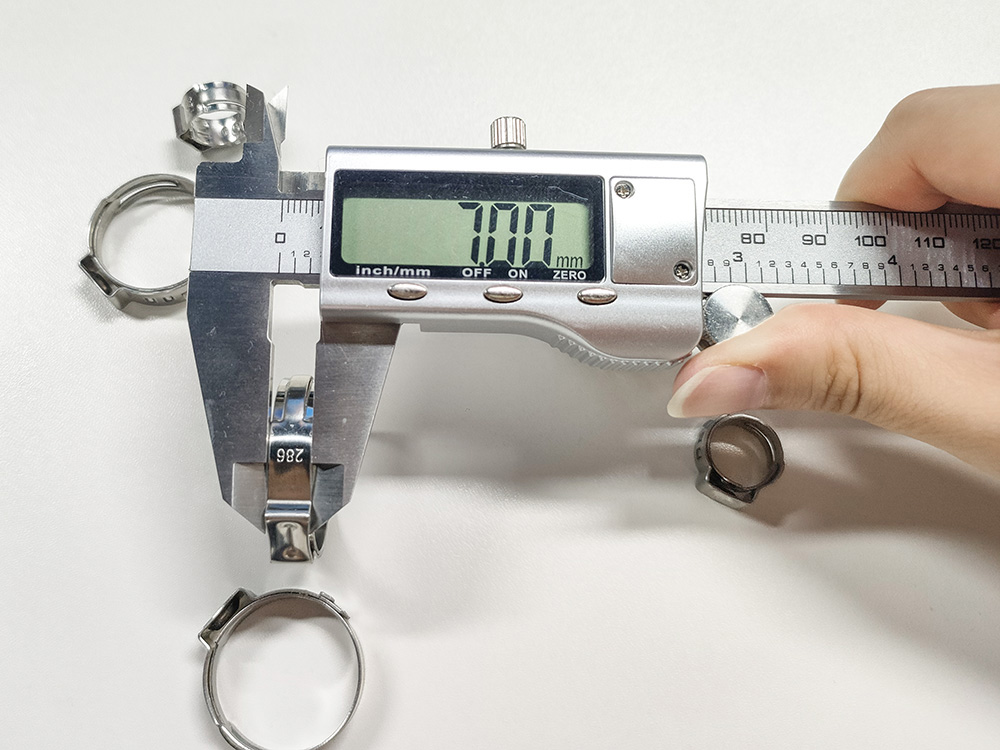

A: Measure the hose's outer diameter after it is fitted over the connection nipple. Select a clamp whose clamping range brackets that measurement, ideally with the hose OD sitting near the middle of the range to allow for thermal expansion.
Q: Do I need a special tool?
A: Yes, a standard single ear clamp pincer is required. For high-volume production, pneumatic closing tools are recommended to ensure consistent ear deformation and speed.
Q: Can these clamps handle high temperatures?
A: The 300 series stainless steel band can maintain properties up to approximately 400°C, but the practical limit is usually dictated by the hose material (e.g., silicone hoses typically max out around 200°C). The ear design helps maintain pressure during temperature cycles.
