Why Constant Torque Hose Clamps Outperform Traditional Worm Gear Clamps
If you've ever dealt with a coolant leak that keeps coming back, or a hydraulic line that seeps no matter how hard you tighten it, you already understand the problem. Standard worm gear clamps lose their grip over time. The hose compresses, the rubber ages, temperatures swing — and suddenly that "tight" connection isn't tight anymore.
Constant torque hose clamps solve this problem at the engineering level.
Unlike conventional clamps that rely on a fixed screw position, constant torque designs use a self-compensating spring mechanism built into the band. As the hose expands or contracts, the clamp adjusts automatically, maintaining consistent radial pressure around the entire circumference. The result: no re-tightening, no seasonal maintenance, no surprise leaks during critical operations.
At Glorex, we manufacture American type constant torque hose clamps that bring this technology to a wide range of industrial, automotive, and marine applications — with the material grades and bandwidth options to match virtually any operating environment.
Understanding the American Type Design
The American type constant torque clamp follows established dimensional standards that make it directly compatible with common hose sizes used across North America and global markets. This isn't a proprietary fitting that locks you into a single supplier — it's a standardized form factor that works with standard hose assemblies.
Key structural elements:
Precision-machined worm screw: Delivers smooth, incremental adjustment during installation without binding or stripping
Spring-loaded band architecture: Provides the constant tension behavior that distinguishes these clamps from standard worm gear designs
Rolled band edges: Prevent cutting or gouging of the hose outer surface during tightening and throughout service life
Full circumferential contact: Distributes clamping force evenly, eliminating the pressure gaps that cause leaks

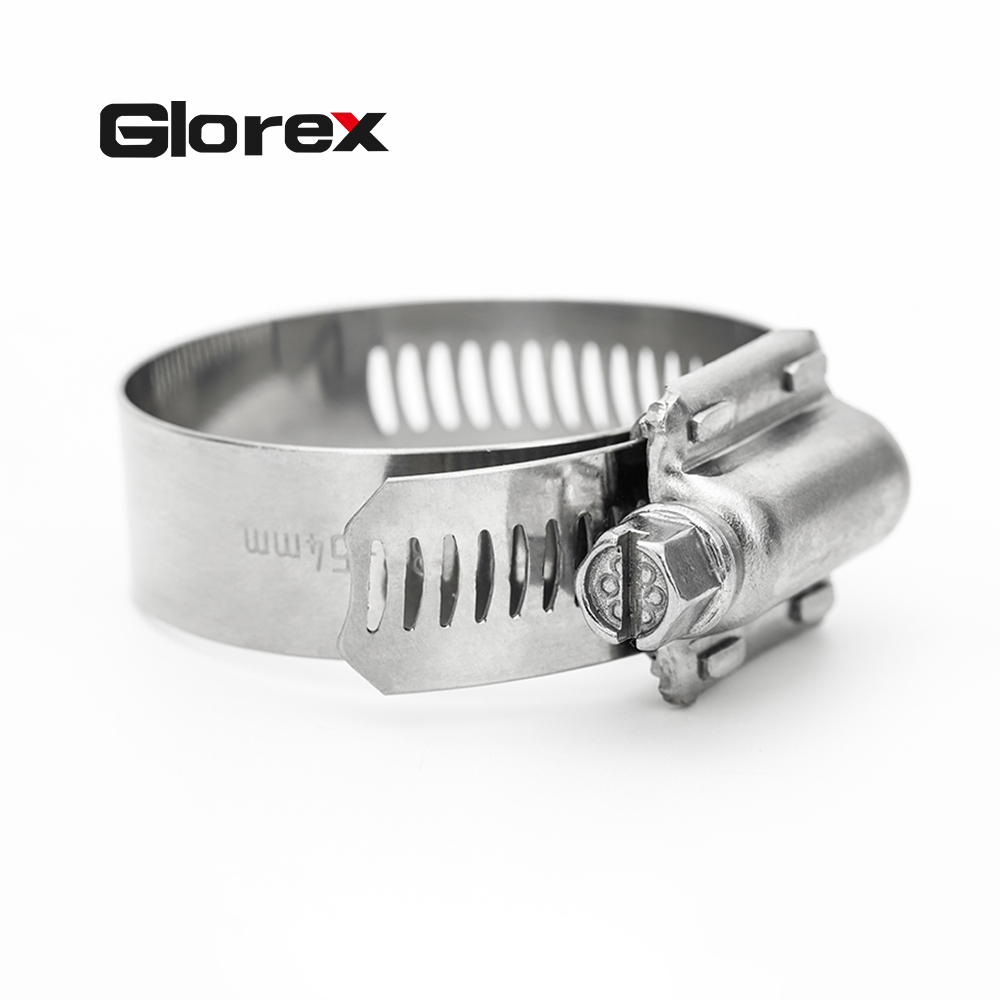

Our American type stainless steel constant torque hose clamps are available in three bandwidth profiles and three stainless steel grades, covering diameters from 11mm to 232mm (7/16" to 9 1/8").
Bandwidth Selection: Matching the Clamp to the Application
One of the most common questions we hear from procurement teams and engineers is: "Which bandwidth do I actually need?" The answer depends on hose diameter, operating pressure, and the consequences of failure.
12.7mm Bandwidth — Standard Duty
The 12.7mm profile is our most versatile option. It's the right choice for small to medium diameter hoses in low to medium pressure systems. Typical applications include:
Automotive auxiliary lines (coolant bypass, vacuum lines)
Residential and commercial plumbing connections
Agricultural irrigation systems
Light industrial fluid transfer
This bandwidth offers an excellent balance of cost efficiency and reliable sealing performance. For many general-purpose applications, it's all you need.
14.2mm Bandwidth — Medium Duty
When pressures climb or hose diameters increase, the 14.2mm band provides additional clamping surface area without excessive bulk. We recommend this profile for:
Medium-pressure industrial pipelines
Commercial HVAC and refrigeration systems
General equipment piping and process connections
The wider band distributes force over a larger contact patch, reducing point loading on the hose and improving long-term sealing reliability.
15.8mm Bandwidth — Heavy Duty
The 15.8mm wide-band option is engineered for the most demanding conditions. When you're dealing with large diameter hoses, high-torque requirements, or critical high-pressure systems, this profile delivers:
Maximum clamping force distribution
Reduced risk of hose damage under extreme tightening
Enhanced sealing reliability for hydraulic lines and heavy equipment
Industries relying on this bandwidth include heavy construction equipment, large-scale industrial piping, and high-pressure hydraulic systems where failure is not an option.
Material Selection: SS201 vs. SS304 vs. SS316
The stainless steel grade you choose directly affects corrosion resistance, service life, and cost. Here's how to decide:
SS201 — Economical Indoor Performance
SS201 is a cost-effective stainless steel suitable for dry, indoor environments with minimal moisture or chemical exposure. It's a practical choice for:
- Indoor drainage systems
- Signage mounting and general fixture installation
- Low-demand applications where corrosion risk is minimal
If your installation is climate-controlled and away from corrosive media, SS201 delivers reliable performance at an attractive price point.
SS304 — The Universal Industrial Standard
SS304 is the workhorse grade for most industrial and commercial applications. It offers balanced corrosion resistance and mechanical strength, performing reliably in:
- Outdoor atmospheric environments
- Water-based systems and plumbing
- Mild chemical exposure
- Automotive and food processing auxiliary lines
For most general industrial installations, SS304 is the default recommendation. It handles the majority of real-world conditions without the premium cost of higher grades.
SS316 — Premium Corrosion Resistance
SS316 adds molybdenum to the alloy, significantly enhancing resistance to chlorides and harsh chemicals. This grade is essential for:
- Marine equipment and offshore installations
- Chemical processing and pharmaceutical production
- Coastal outdoor applications
- Desalination plant piping
When your application involves saltwater, strong acids, or aggressive chemical environments, SS316 provides the durability and service life that lower grades cannot match.
Applications Across Industries
Constant torque clamps from Glorex serve a diverse range of sectors. Here's where our customers deploy these products:
Automotive & Transportation
Air intake systems, coolant hoses, fuel auxiliary lines, exhaust connections, and turbocharger piping.
Marine & Offshore
Ship piping systems, coastal equipment fluid lines, desalination plant connections, and offshore platform plumbing.
Industrial Manufacturing
Chemical transfer pipelines, process equipment connections, industrial drainage, and pneumatic systems.
HVAC & Refrigeration
Heating and cooling system hoses, chiller piping, ventilation duct connections, and refrigerant lines.
Food & Beverage
Processing equipment auxiliary lines and clean water piping (SS316 recommended for sanitary zones).
Agriculture & Landscaping
Sprinkler system connections, agricultural equipment fluid lines, greenhouse piping, and irrigation networks.
Infrastructure
Traffic signage mounting, street lighting pole fixation, outdoor billboard installation, and structural connections.
Installation Best Practices
Even the best clamp can underperform if installed incorrectly. Follow these guidelines for optimal results:
Verify hose and clamp compatibility. Confirm the clamp's range covers your hose outer diameter with room for compression. The clamp should fit snugly before tightening.
Position the clamp correctly. Place it behind the hose barb or bead, not directly on it. This ensures proper sealing without damaging the hose.
Tighten to specification. Use a torque wrench when possible. Over-tightening can damage the hose; under-tightening defeats the purpose. Constant torque clamps are more forgiving than standard worm gear designs, but proper torque still matters.
Check for even compression. After tightening, inspect the hose surface under the clamp. It should show uniform compression, not pinching or bulging.
Allow for thermal cycling. Constant torque clamps self-adjust, but initial installation should account for the expected temperature range. In extreme applications, consult our technical team for specific guidance.
About Glorex — Mika (Tianjin) Pipeline Technology Co., Ltd.
Glorex is the brand of Mika (Tianjin) Pipeline Technology Co., Ltd., a professional manufacturer of high-quality pipe clamping solutions. We focus on delivering reliable, leak-proof piping connection products for industrial and commercial clients worldwide.
Our capabilities:
Nearly 100 employees across sales, design, production, and after-sales teams
15 client support specialists and 8 technical engineers (including 5 senior engineers)
Full customization services for non-standard specifications
Dedicated bulk production with strict quality control
Our products are widely applied in automotive systems, military equipment, air intake and engine exhaust systems, cooling and heating infrastructure, irrigation networks, and industrial drainage systems.
We operate with a pragmatic, solution-focused culture — supporting customers from initial specification selection through to after-sales service. Whether you need standard catalog items or fully custom solutions, our team is ready to help.
Certificate
FAQS
Q: How do I choose the right bandwidth for my application?
For hoses under 30mm diameter in light-duty use, 12.7mm bandwidth is usually sufficient. For 30–80mm hoses in medium-pressure scenarios, 14.2mm is the recommended choice. For hoses over 80mm or high-pressure heavy-duty conditions, 15.8mm wide-band clamps provide the best sealing and holding performance.
Q: What's the difference between SS201, SS304, and SS316?
The core difference is corrosion resistance and cost. SS201 is the most economical for dry, low-corrosion indoor use. SS304 is the standard industrial grade for most outdoor and general industrial environments. SS316 offers the highest corrosion resistance, especially against saltwater and strong chemicals, making it suitable for marine and chemical processing scenarios.
Q: Are your clamps compatible with both metric and imperial hose sizes?
Yes. All our standard clamps are marked with both millimeter and inch dimensions. Our size range spans 11mm to 232mm (7/16" to 9 1/8"), fully compatible with global hose sizing standards.
Q: Can you produce custom specifications?
Yes, we support fully custom specifications for bulk orders, including non-standard bandwidths, mixed material components, and special performance treatments. Contact our technical team with your project details for a tailored quotation.
Q: Do constant torque clamps work in high-temperature applications?
Yes, the constant torque design is engineered to compensate for thermal expansion and contraction of hoses during temperature cycles, maintaining stable clamping force and preventing leaks caused by temperature fluctuations. For extreme high or low temperature scenarios, we can recommend the most suitable material grade.
Q: What's the minimum order quantity?
We don't enforce a minimum order limit for standard catalog sizes. For custom specifications, minimum quantities may apply depending on the complexity of the requirement. Contact us for details.
