Why Metal-on-Metal Contact Quietly Destroys Systems
A hose, cable, or tube that rubs directly against a metal bracket will fail. Not immediately—but steadily. Vibration grinds away the outer jacket. Moisture reaches the reinforcement layer. Noise travels through the structure. By the time the leak or short circuit appears, the root cause is often a fastener that was never designed to cushion.

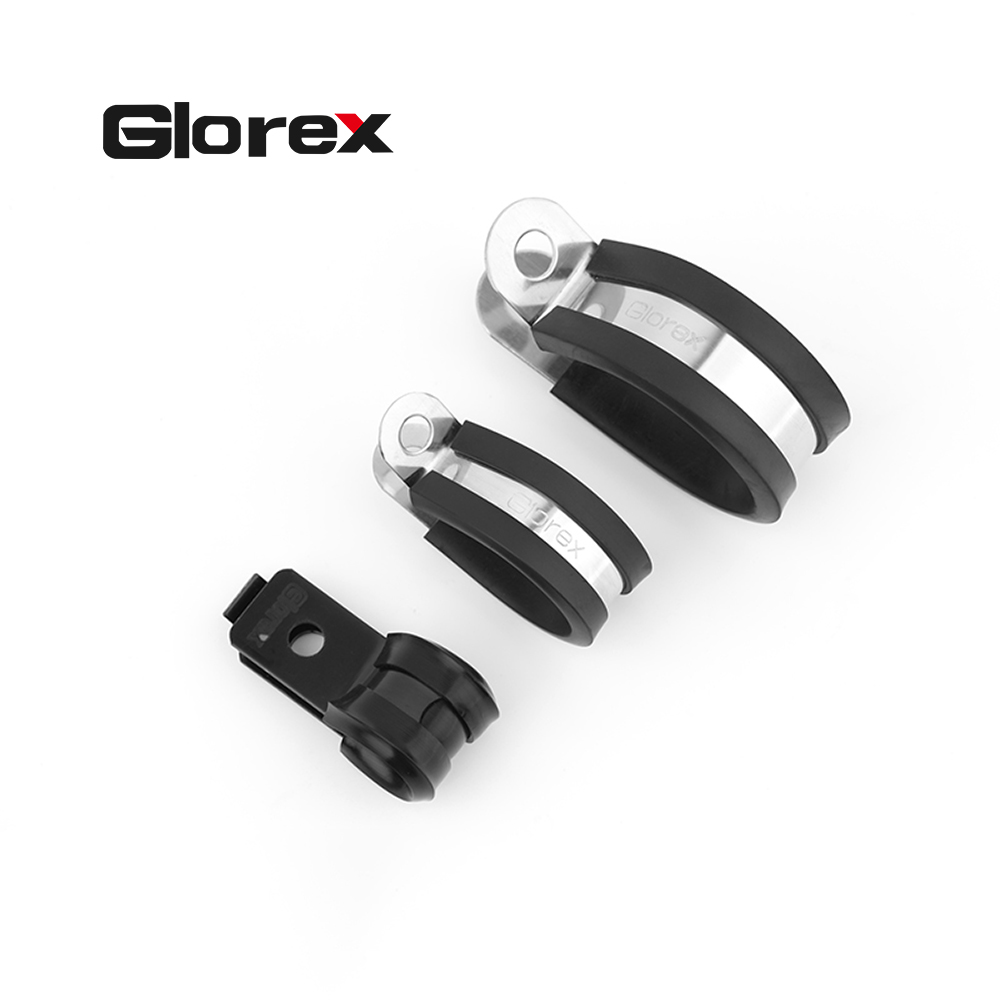

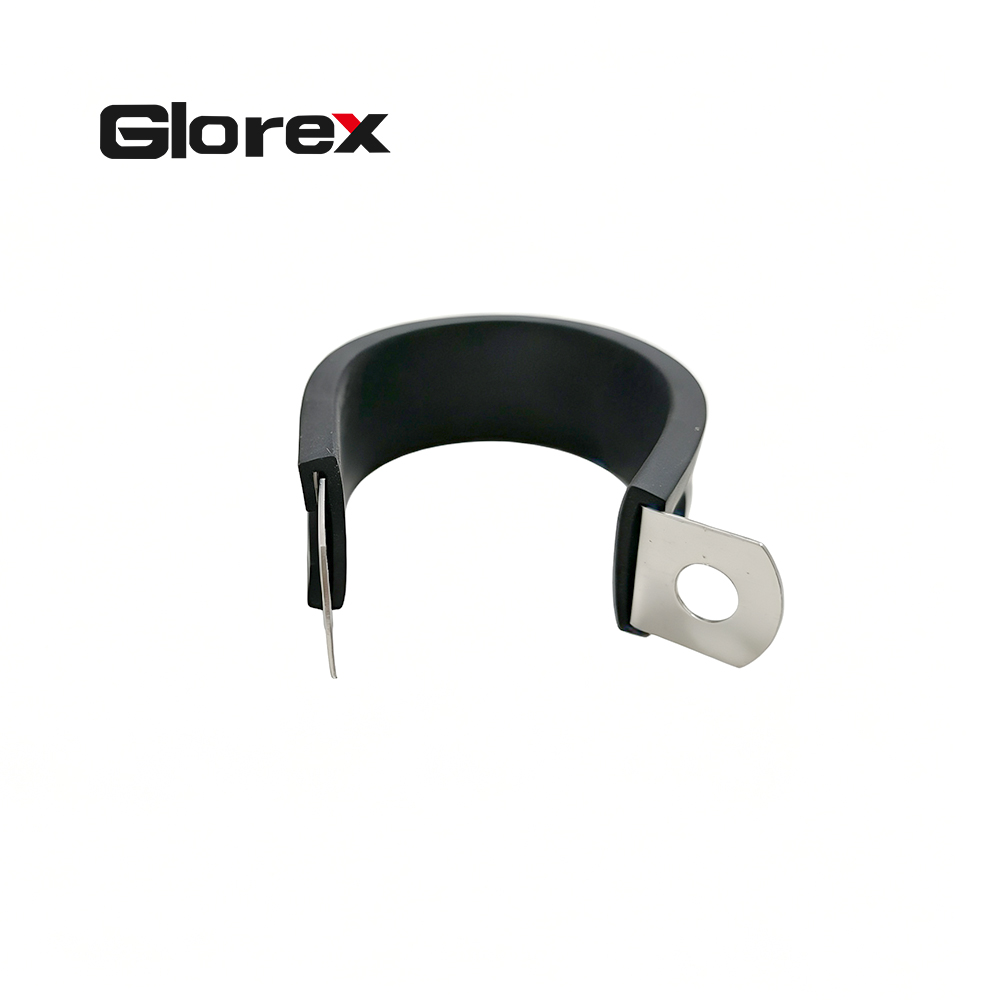

Rubber lined pipe clamps solve this at the fixing point. A bonded EPDM insert sits between the steel band and the secured object, turning a rigid connection into a damped, insulated one. The clamp still holds firmly—but it no longer transmits shock, abrasion, or electrical potential.
Glorex manufactures these clamps in two material systems: W1 zinc-plated iron for general-purpose work, and W4 304 stainless steel for corrosive or outdoor environments. Both use the same high-grade EPDM cushion. The full specification is available on the rubber lined pipe clamp product page.
What the Clamp Is Actually Made Of
The performance of a cushioned clamp depends on three interfaces: the band, the rubber, and the rivet. A weak point in any of them defeats the purpose.
| Component | W1 Option | W4 Option |
|---|---|---|
| Steel band | Zinc-plated iron | 304 stainless steel |
| Rivets | Zinc-plated iron | 304 stainless steel |
| Rubber insert | EPDM | EPDM |
The EPDM insert is the functional heart of the clamp. It is not a loose sleeve that can shift during installation—it is bonded to the band so the cushion stays in place under clamping force. EPDM was chosen for its resistance to heat, ozone, and water. The clamp performs continuously from -40°C to 120°C, with short-term tolerance up to 200°C for spike conditions.

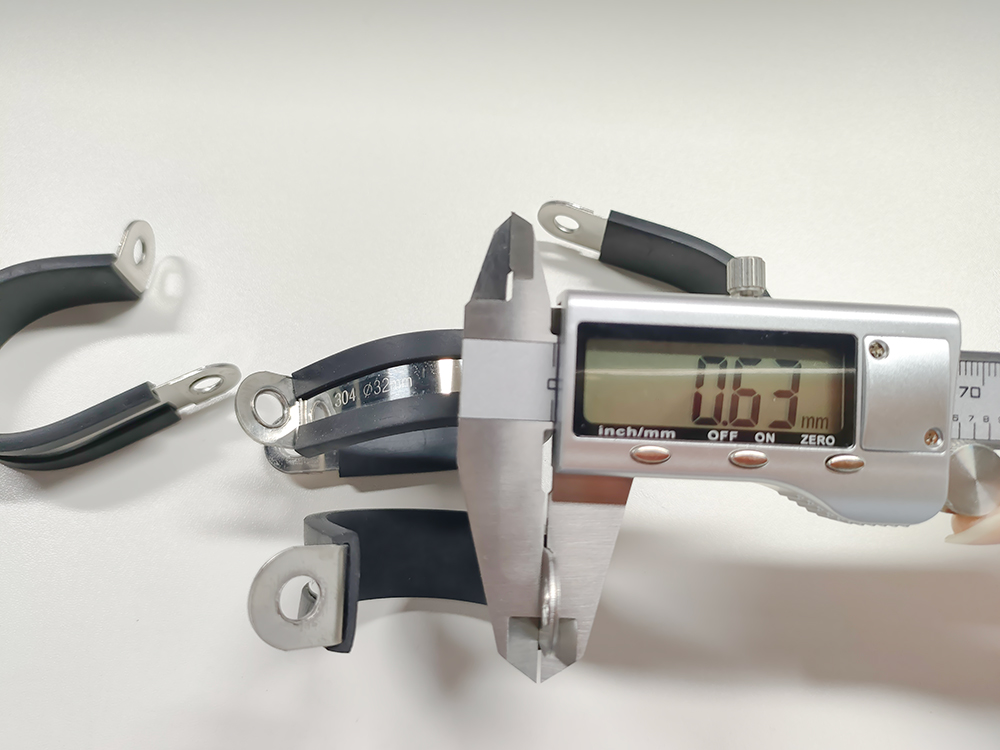

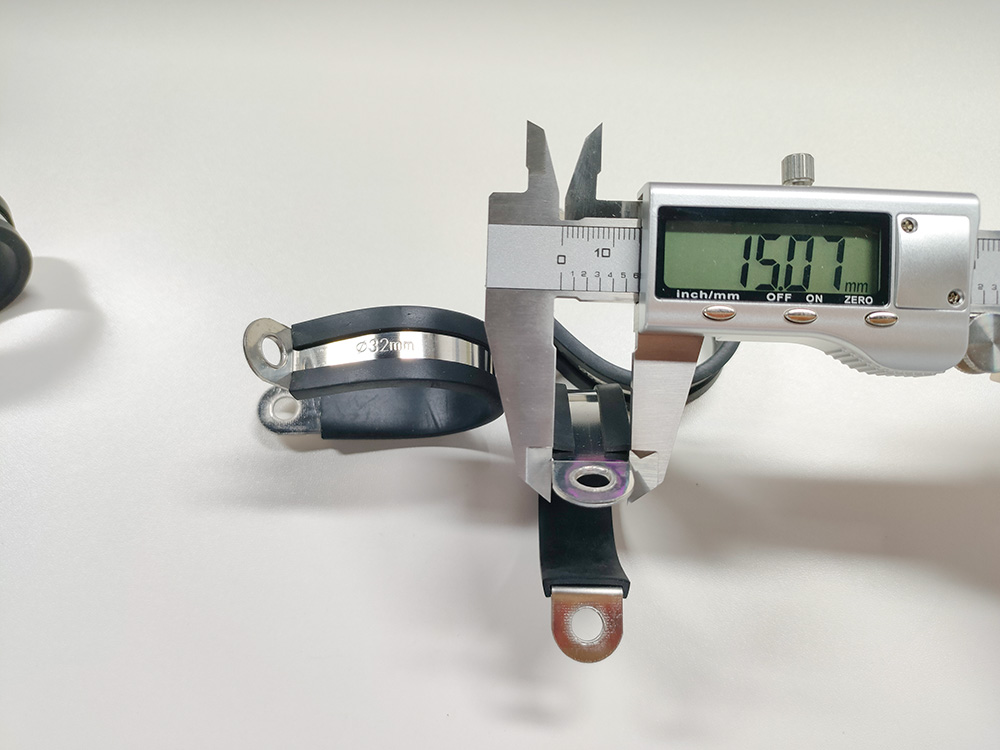

Bandwidth options are 12mm, 15mm, and 20mm, with material thickness of 0.6mm or 0.8mm depending on size. The range covers bore diameters from 4mm to 50mm, which spans small cable bundles up to larger coolant and hydraulic lines.
Four Performance Reasons Engineers Specify Rubber-Lined Clamps
1. Vibration damping that protects both the line and the structure. The EPDM layer acts as a viscoelastic damper. In automotive engine bays, hydraulic power units, and heavy equipment, this reduces the amplitude of vibration reaching the hose or cable. The result is fewer fatigue failures at fittings and less structure-borne noise.
2. Anti-friction protection for soft surfaces. Rubber hose, cable jackets, and thin-wall tubing are easily abraded by a bare metal band. The EPDM insert eliminates direct metal contact, so the outer surface of the secured object remains intact even under sustained micro-movement.
3. Electrical insulation at the fixing point. When routing wiring harnesses, a metal clamp can create an unintended ground path or chafe through insulation. The rubber lining adds a dielectric barrier, which is why these clamps are common in automotive wiring, control panels, and equipment with sensitive electronics.
4. Corrosion resistance matched to the environment. W1 zinc-plated clamps are cost-effective for indoor machinery and standard automotive use. W4 304 stainless steel clamps are the correct choice for marine decks, chemical plants, outdoor HVAC, and anywhere salt or moisture is present. The rubber insert is unaffected by either choice.
How to Select the Right Size and Material
Selection comes down to three decisions, in order.
Step 1 — Match the material to the environment. Indoor, dry, general-purpose: W1. Outdoor, wet, salty, or chemically exposed: W4. If the clamp will outlive the hose it secures, the small cost difference for 304 stainless is usually justified.
Step 2 — Measure the actual outer diameter. For a single pipe or hose, measure the outside diameter. For a cable bundle, measure the total bundle diameter with the cables dressed as they will be installed. Match that measurement to the size chart. Do not select by nominal pipe size alone—wall thickness and insulation vary.
Step 3 — Confirm bandwidth and thickness. Larger diameters and higher vibration loads benefit from the 20mm bandwidth and 0.8mm thickness. Smaller cable routing can use the 12mm band with 0.6mm thickness. The product specification table lists every combination.
If the application falls outside the standard range, Glorex’s engineering team can review custom diameters, widths, or material combinations against drawings or samples.
Where Rubber Lined Pipe Clamps Are Used
The same basic function—secure, cushion, insulate—applies across industries, but the operating conditions differ enough that material choice matters.
Automotive and transportation: fuel lines, brake lines, wiring harnesses, and coolant circuits routed near vibration sources.
Industrial machinery: hydraulic and pneumatic lines on presses, pumps, and mobile equipment.
Marine and offshore: deck piping, engine room systems, and cable runs exposed to salt air.
Construction and HVAC: refrigerant lines, condensate piping, and conduit fixing where noise transmission is a concern.
Petrochemical and power: instrument tubing and cable trays in demanding plant environments.
In each case, the clamp is a small line item that prevents a much larger failure mode. That is the economic argument for specifying a cushioned clamp rather than a bare metal one.
About Glorex — Mika (Tianjin) Pipeline Technology Co., Ltd.
Glorex is a Tianjin-based manufacturer of clamping and pipeline fastening products. The company serves automotive, military, engine air intake and exhaust, cooling and heating, irrigation, and industrial drainage markets.
The team includes nearly 100 employees, with 8 technical staff—5 of them senior engineers—and 15 pre- and after-sales specialists. That structure allows one-on-one technical support from design through delivery, rather than a pure catalog-order relationship. Quality control runs through standardized processes, precision tooling, and testing equipment, so the clamp that arrives in volume matches the sample that was approved.
For buyers who need a cushioned clamp that performs consistently across shipments, the Rubber Lined Pipe Clamp product page is the starting point for specifications, samples, and quotation.
FAQ
What is the difference between W1 and W4 rubber lined pipe clamps?
W1 uses a zinc-plated iron band and rivets for general indoor and automotive applications. W4 uses 304 stainless steel for the band and rivets, giving it corrosion resistance in marine, outdoor, and chemical environments. Both use the same EPDM rubber insert.
What temperature range does the EPDM cushion handle?
Continuous service from -40°C to 120°C, with short-term exposure up to 200°C. This covers most engine bay, HVAC, and industrial machinery conditions.
How do I choose the correct clamp size?
Measure the outer diameter of the pipe, hose, or the total diameter of the cable bundle. Match it to the size chart, which runs from 4mm to 50mm. Bandwidth and thickness options are listed per size.
Can these clamps be used on electrical cables?
Yes. The EPDM lining provides electrical insulation between the cable and the steel band, which is one reason they are used for wiring harnesses and control cables.
Do you offer samples before a bulk order?
Yes. Sample orders are supported so the fit and cushion performance can be checked under actual working conditions before committing to production quantities.
Can Glorex produce custom sizes or materials?
The in-house engineering team, including five senior engineers, routinely develops custom clamp solutions. Provide a drawing or specification and the team will review feasibility and tooling.
