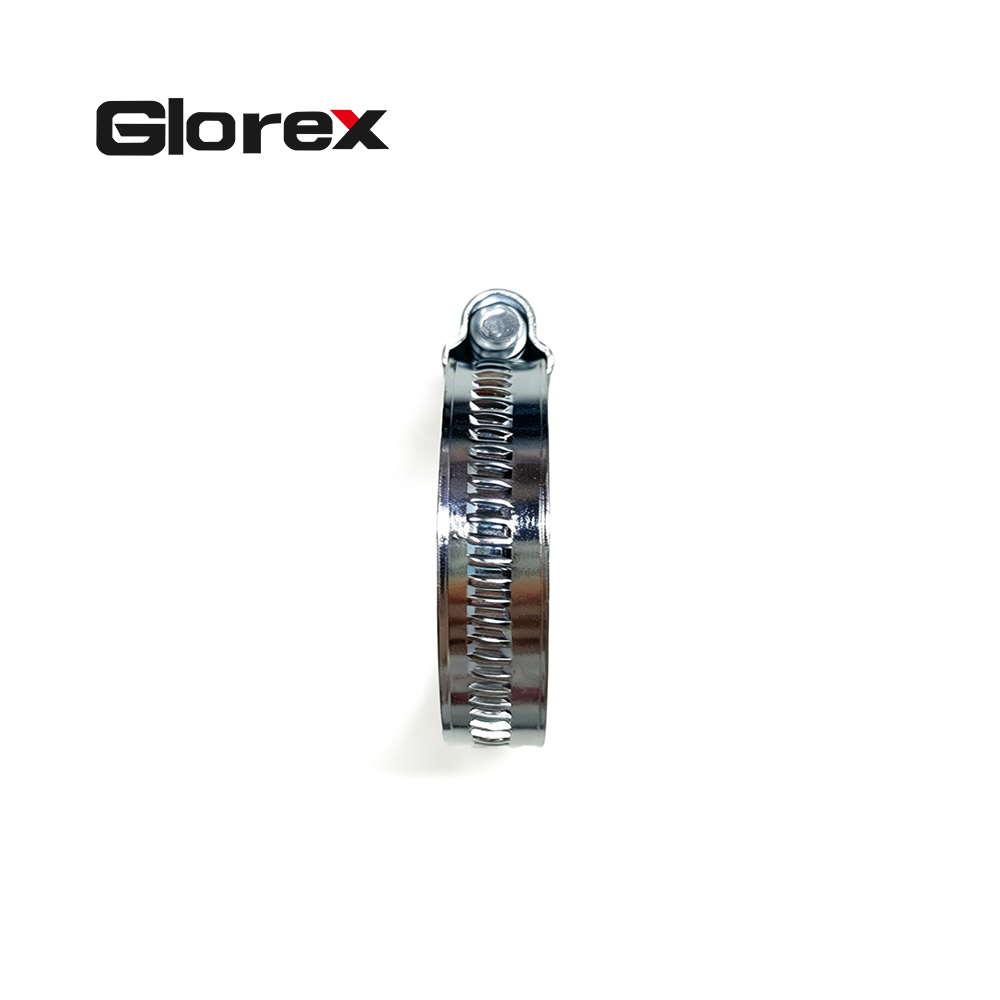

When specifying clamps for high-pressure tubing and hose assemblies, engineers often face a trade-off between corrosion resistance, mechanical strength, and budget. The high pressure galvanized tube clamp has emerged as a practical middle ground—offering reliable sealing performance in harsh environments without the premium price tag of full stainless steel construction.
What Is a Heavy Duty Hose Clamp?
A Heavy Duty Hose Clamp is a worm-drive fastening device made from zinc-plated carbon steel. The galvanized coating—typically applied through electroplating—provides a sacrificial layer that protects the underlying steel from rust and environmental corrosion.
Unlike standard low-pressure clamps, these units are engineered with thicker band material, reinforced housings, and optimized thread geometry to maintain clamping force under vibration, thermal cycling, and internal pressure fluctuations.
The British Standard (BS) worm gear design is particularly common in high-pressure applications because its interlocked housing prevents band separation when torque is applied. This design also allows for smooth adjustment using a flat-head screwdriver or socket wrench.
Why Choose Galvanized Over Stainless Steel?
Stainless steel clamps are often the default recommendation for corrosive environments. However, there are scenarios where galvanized carbon steel makes more economic and practical sense:
1. Cost Efficiency Without Sacrificing Performance
A quality galvanized clamp delivers approximately 95% of the anti-rust performance of a standard stainless clamp at roughly 60% of the cost. For large-scale projects involving hundreds or thousands of connection points, this cost differential becomes significant.
2. Better Thread Engagement
Stainless steel is prone to galling—a form of cold welding that can seize threads during tightening. Galvanized carbon steel threads slide more smoothly, reducing the risk of stripped screws or damaged housings during installation and maintenance.
3. Adequate Corrosion Protection for Many Environments
With a 72-hour salt spray rating, electro-galvanized clamps handle indoor industrial settings, freshwater systems, and protected outdoor applications without issue. They are not intended for direct saltwater immersion, but for many real-world installations, they offer sufficient durability.
4. Ideal for Frequent Disassembly
Maintenance-heavy operations benefit from galvanized clamps because they can be loosened and re-tightened repeatedly without the thread seizing issues common in stainless variants.
Technical Considerations for High-Pressure Applications
Not all galvanized clamps are created equal. When selecting a clamp for high-pressure tubing, pay attention to these specifications:
| Parameter | Recommendation for High Pressure |
|---|---|
| Band Width | 11.7mm or wider for diameters above 20mm |
| Band Thickness | 0.9mm minimum for heavy-duty use |
| Housing Type | Interlocked (not spot-welded) |
| Screw Type | Hexagon slotted nut for higher torque |
The clamping diameter range should match your tubing or hose outside diameter with some adjustment margin. For high-pressure lines, avoid using a clamp at the extreme end of its adjustment range—the band should sit near the middle of its specified range for optimal load distribution.
Applications Where Galvanized Tube Clamps Excel
Automotive Cooling Systems
Radiator hoses, heater lines, and charge air cooler piping operate under constant pressure and vibration. Galvanized worm gear clamps provide secure sealing without the cost of stainless.
Agricultural Irrigation
High-pressure water delivery systems for pivot irrigation and drip lines rely on durable clamps that can withstand outdoor exposure and seasonal maintenance.
Mobile Machinery
Tractors, forklifts, and construction equipment use hydraulic and coolant lines that require vibration-resistant fastening. The interlocked housing design prevents failure under shock loads.
Industrial Plumbing and Pneumatics
Air lines, chemical transfer hoses, and process piping in manufacturing facilities often specify galvanized clamps for their balance of strength and affordability.
Marine and Offshore (Protected Areas)
While not suitable for direct saltwater contact, galvanized clamps work well in enclosed engine rooms, bilge areas with freshwater rinse, and deck equipment housings.
About Us
Mika Pipeline Technology is a manufacturing-driven enterprise located in Tianjin, one of China's four direct-controlled municipalities and a key hub on the Maritime Silk Road. Our strategic position supports efficient logistics to ports worldwide, particularly for Belt and Road Initiative trade routes.
We employ nearly 100 staff, including 15 pre-sales and after-sales specialists and 8 in-house technicians (5 senior engineers) focused on continuous product improvement and custom tooling development.
Our product line serves automotive, military, air intake, engine exhaust, cooling and heating circuits, irrigation, and industrial drainage sectors. Every shipment undergoes rigorous quality control to ensure leak-proof sealing and reliable performance under pressure.
We welcome factory audits and on-site visits from prospective partners.
Certificate
Frequently Asked Questions
Q: Are you a factory or a trading company?
A: We are a genuine factory with full in-house production, from raw material processing to final assembly. We welcome on-site audits at our Tianjin facility.
Q: What is your minimum order quantity (MOQ)?
A: Our standard MOQ is 500–1,000 pieces per size. We also accept trial orders in smaller quantities to help buyers evaluate quality before committing to larger volumes.
Q: Do you provide free samples?
A: Yes, we offer free samples—buyers only cover the freight cost. This allows you to test fit, finish, and performance before purchasing.
Q: Can you customize clamps with our logo or specifications?
A: Absolutely. We specialize in OEM projects including logo laser-engraving, non-standard diameters, and custom packaging. Provide your specifications or authorization, and our engineering team will handle the rest.
Q: What is the difference between W1, W2, and W4 clamps?
A: W1 indicates all parts are galvanized steel (most economical). W2 has a galvanized band with a stainless steel screw. W4 is all stainless steel (maximum corrosion resistance). For high-pressure applications in moderate environments, W1 offers the best cost-performance balance.
Q: Can galvanized clamps be used on stainless steel tubing?
A: Yes, but be aware of galvanic corrosion risk in wet environments. If the connection will be exposed to moisture or salt, consider using a stainless clamp or applying a barrier compound at the contact point.
Conclusion
The high pressure galvanized tube clamp fills an important niche in industrial fastening—delivering dependable sealing performance at a price point that makes large-scale projects viable. By understanding the material limitations and selecting the right band width, thickness, and housing design, engineers can specify galvanized clamps with confidence for a wide range of automotive, agricultural, and industrial applications.
For bulk orders, OEM customization, or technical consultation, visit Glorex Clamp to discuss your requirements with their engineering team.
