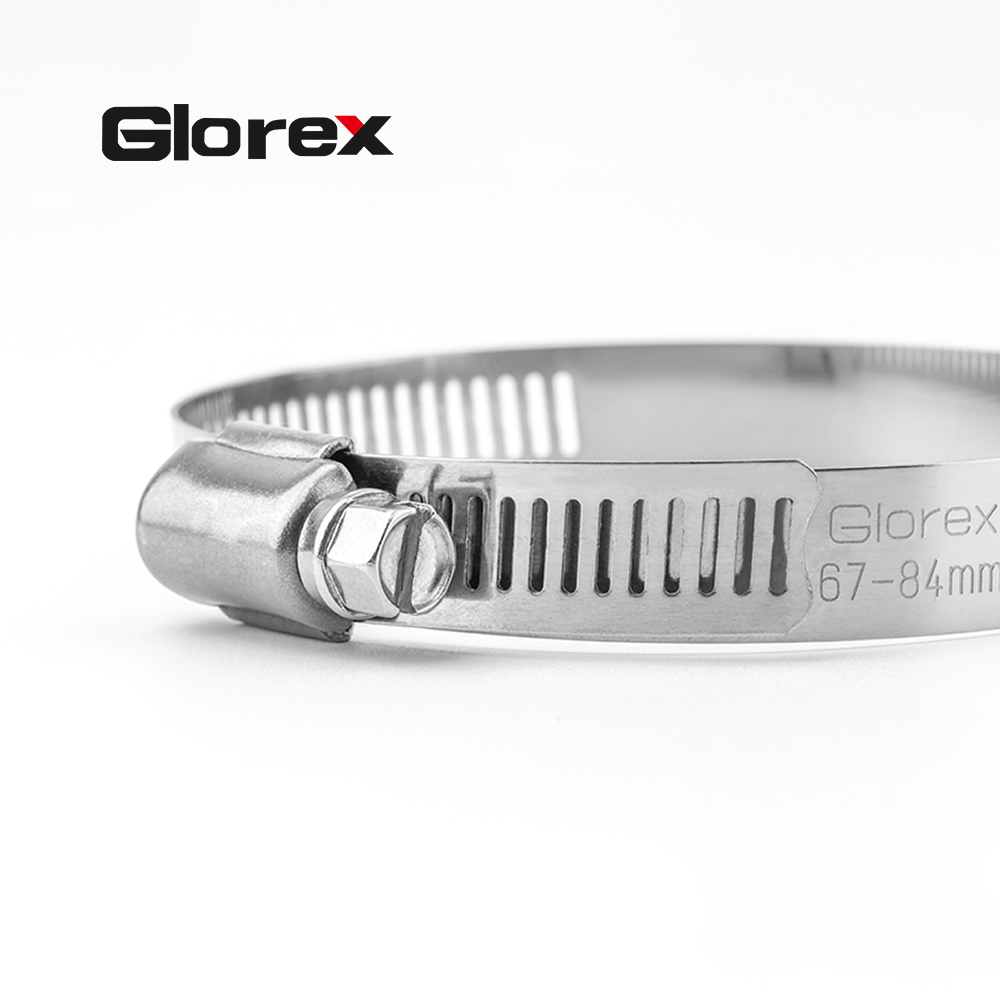

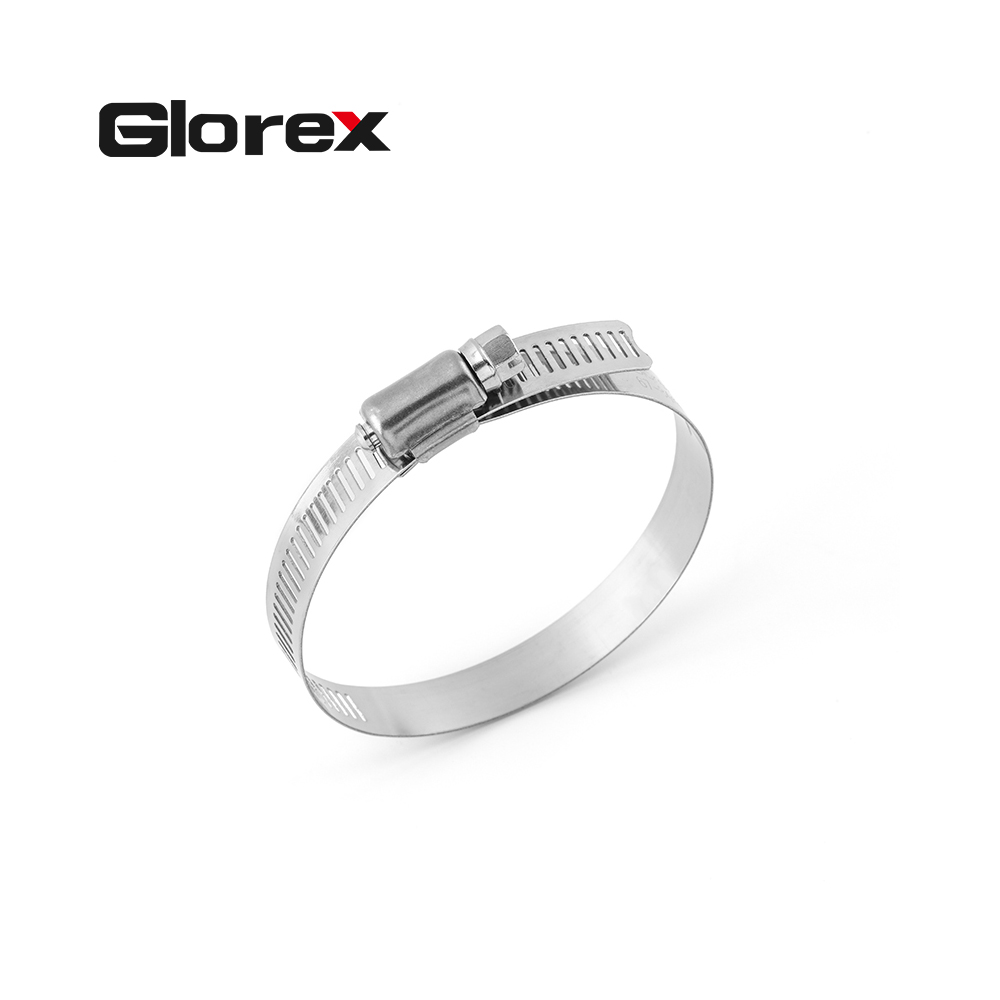

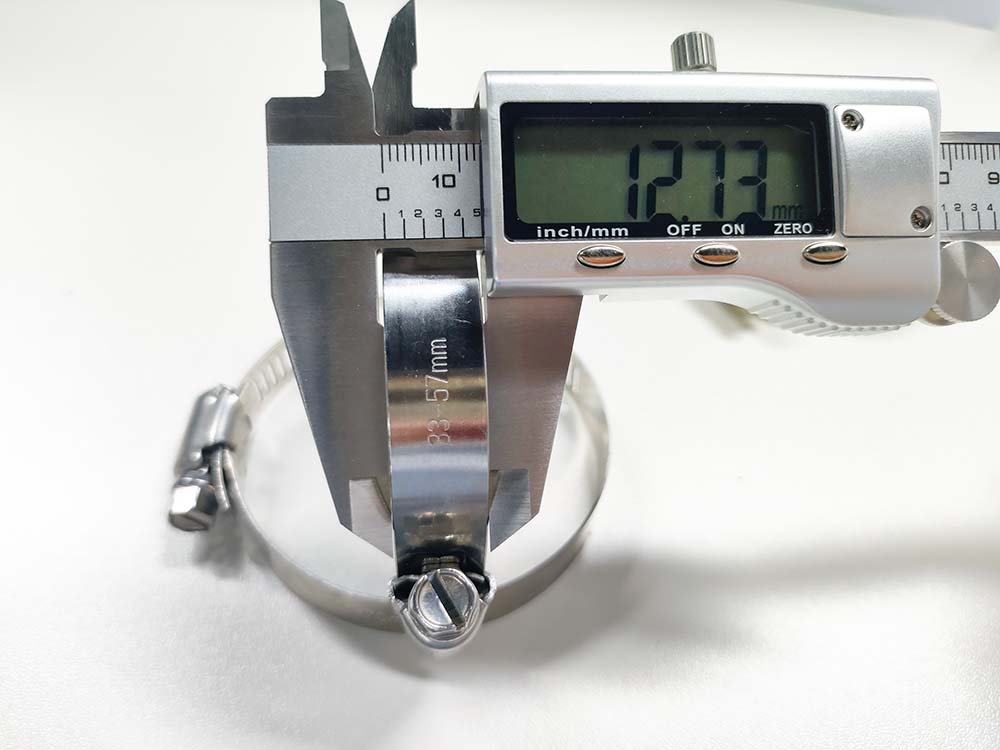

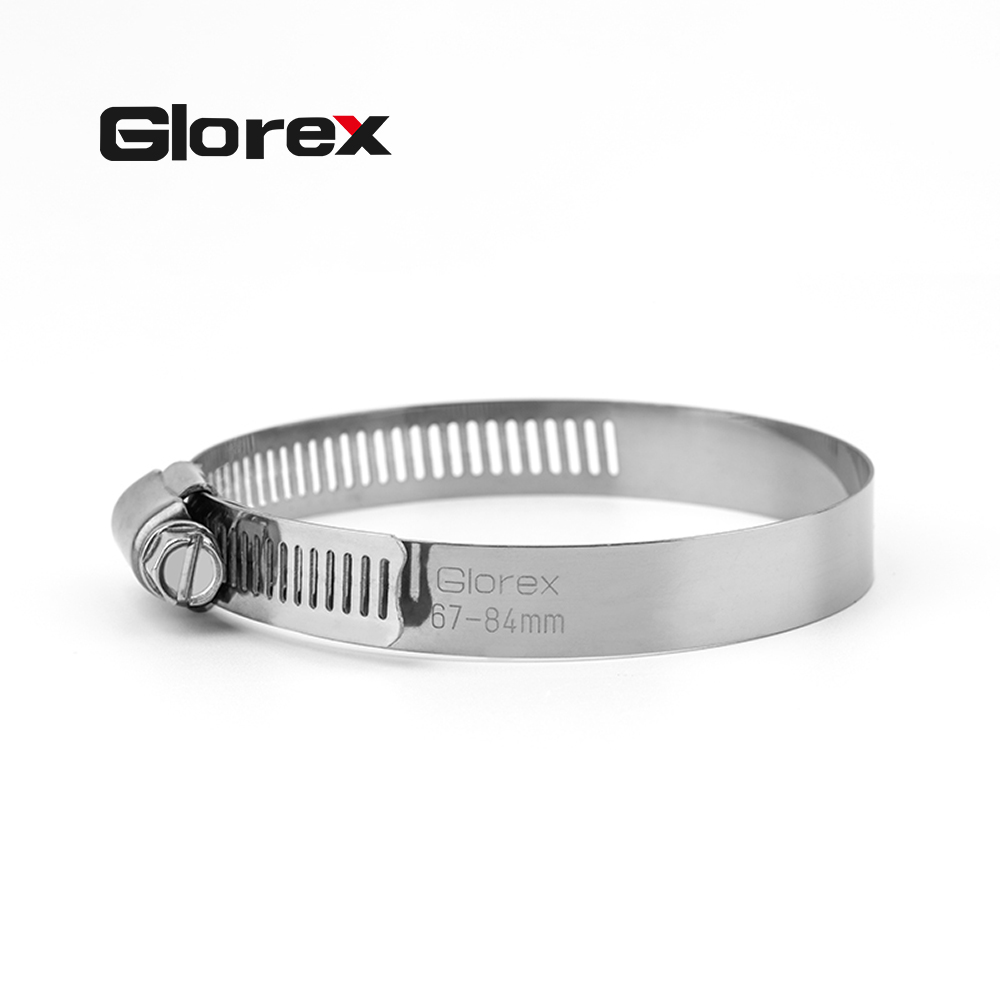

This 12.7mm American hose clamp has been precisely engineered to address the challenges of fastening and sealing under harsh working conditions. The core technology lies in the adoption of high-hardness materials and a unique through-hole structure. This design ensures the uniform distribution of clamping force during the fastening process, thereby achieving extremely high compressive strength and anti-vibration performance, and guaranteeing long-term sealing reliability.
| Material | W1 | W2 | W4 | W5 |
| Hoopstraps | Iron galvanized | 200ss/300ss | 300ss | 316 |
| Hoop shell | Iron galvanized | 200ss/300ss | 300ss | 316 |
| Screw | Iron galvanized | Iron galvanized | 300ss | 316 |
The structural advantage is reflected in the one-piece formed integrated riveted housing, which eliminates the weak point of the traditional split design, can withstand higher torque and prevent deformation, ensuring a permanent safe and tight fit.
In terms of functional configuration, the product offers two professional screw options: standard screws that meet general needs and anti-backflow screws specifically designed for equipment at risk of continuous vibration, effectively preventing loosening and failure caused by vibration and providing additional safety guarantees for critical systems.
In addition, together with the reliable 304 perforated hose clamps, it forms a product matrix. This series of products jointly provide comprehensive pipe connection solutions ranging from general to professional for diverse application scenarios such as automotive, industrial, and irrigation systems.
| Specification | Diameter range(mm) | Installation Torque (Nm) | Material | Surface Finish | Bandwidth (mm) | Thickness (mm) |
| 304 All Steel 14-27 | 14-27 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 18-32 | 18-32 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 21-38 | 21-38 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 21-44 | 21-44 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 27-51 | 27-51 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 33-57 | 33-57 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 40-63 | 40-63 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 46-70 | 46-70 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 52-76 | 52-76 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 59-82 | 59-82 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 65-89 | 65-89 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 72-95 | 72-95 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 78-101 | 78-101 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 84-108 | 84-108 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 91-114 | 91-114 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 105-127 | 105-127 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 118-140 | 118-140 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 130-152 | 130-152 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 141-165 | 141-165 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 155-178 | 155-178 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 175-197 | 175-197 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 194-216 | 194-216 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 213-235 | 213-235 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 232-254 | 232-254 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 251-273 | 251-273 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 270-292 | 270-292 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 289-311 | 289-311 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-100 | 0-100 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-150 | 0-150 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-200 | 0-200 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 75-235 | 75-235 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-250 | 0-250 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-300 | 0-300 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-350 | 0-350 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-400 | 0-400 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-450 | 0-450 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-500 | 0-500 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-550 | 0-550 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 304 All Steel 0-600 | 0-600 | 12Nm | 304 stainless steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 14-27 | 14.27 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 18-32 | 18-32 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 21-38 | 21-38 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 21-44 | 21-44 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 27-51 | 27-51 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 33-57 | 33-57 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 40-63 | 40-63 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 46-70 | 46-70 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 52-76 | 52-76 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 59-82 | 59-82 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 65-89 | 65-89 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 72-95 | 72-95 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 78-101 | 78-101 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 84-108 | 84-108 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 91-114 | 91-114 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 105-127 | 105-127 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 118-140 | 118-140 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 130-152 | 130-152 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 141-165 | 141-165 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 155-178 | 155-178 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 175-197 | 175-197 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 194-216 | 194-216 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 213-235 | 213-235 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 232-254 | 232-254 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 251-273 | 251-273 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 270-292 | 270-292 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 289-311 | 289-311 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-100 | 0-100 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-150 | 0-150 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-200 | 0-200 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 75-235 | 75-235 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-250 | 0-250 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-300 | 0-300 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-350 | 0-350 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-400 | 0-400 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-450 | 0-450 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-500 | 0-500 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-550 | 0-550 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 All Steel 0-600 | 0-600 | 12Nm | 201 All Steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 14-27 | 14-27 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 18-32 | 18-32 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 21-38 | 21-38 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 21-44 | 21-44 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 27-51 | 27-51 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 33-57 | 33-57 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 40-63 | 40-63 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 46-70 | 46-70 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 52-76 | 52-76 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 59-82 | 59-82 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 65-89 | 65-89 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 72-95 | 72-95 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 78-101 | 78-101 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 84-108 | 84-108 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 91-114 | 91-114 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 105-127 | 105-127 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 118-140 | 118-140 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 130-152 | 130-152 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 141-165 | 141-165 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 155-178 | 155-178 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 175-197 | 175-197 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 194-216 | 194-216 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 213-235 | 213-235 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 232-254 | 232-254 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 251-273 | 251-273 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 270-292 | 270-292 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 289-311 | 289-311 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-100 | 0-100 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-150 | 0-150 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-200 | 0-200 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 75-235 | 75-235 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-250 | 0-250 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-300 | 0-300 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-350 | 0-350 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-400 | 0-400 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-450 | 0-450 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-500 | 0-500 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-550 | 0-550 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| 201 Semi-steel 0-600 | 0-600 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
| Customizable | 1 | 12Nm | 201 Semi-steel | Polishing process | 12.7 | 0.65 |
American standard hose clamps strictly adhere to high-standard design and provide long-lasting and reliable solutions for various sealing and fastening requirements.Its sturdy structure and high-quality materials ensure that the product can adapt to harsh working conditions and always maintain a safe connection without leakage.
This fixture adopts a humanized design, making installation and disassembly simple and quick.Its outstanding versatility makes it an essential item in the toolbox, capable of handling both professional applications in the industrial field and DIY projects at home.It is worth mentioning that it forms a perfect product combination with the 304 perforated hose clamp, jointly meeting the pipe connection requirements in different scenarios.
In terms of reliability and performance, American standard-sized hose clamps stand out with their precise engineering and durable structure, making them the ideal choice for fixing hoses, pipes and other connectors.Its diverse screw options and humanized design complement each other, providing outstanding value and performance guarantees for professional engineering and home decoration tasks.
This type of pipe clamp features outstanding multi-functionality. It is not only suitable for round pipes but also can firmly lock square objects. Its design ensures uniform torsional torque, firm locking, and provides efficient sealing and a wide range of adjustment. The products are widely used in key fields such as the automotive industry, food machinery, and chemical machinery, and are an ideal choice for ensuring the safe and reliable connection of oil, water and gas pipelines.
