In high-performance engineering, the integrity of fluid and air connections is non-negotiable. Whether in a heavy-duty truck's engine bay, an off-road vehicle's hydraulic system, or a racing car's fuel delivery network, a failed hose clamp can lead to catastrophic leaks, downtime, and safety hazards. For these critical applications, the T bolt spring loaded hose clamp has emerged as the superior choice, offering a level of reliability and adaptability that standard worm-drive clamps simply cannot match.
This guide explores the technology, benefits, and applications of these robust fasteners, focusing on the advanced engineering behind products like those offered by leading manufacturers.
The Challenge with Standard Clamps
Traditional hose clamps, while adequate for static, low-pressure environments, face significant challenges in demanding conditions:
Thermal Cycling: Engines and machinery undergo extreme temperature swings. Components expand and contract, causing standard clamps to loosen over time, leading to leaks.
Mechanical Vibration: Constant shaking from engines, rough terrain, or industrial equipment can cause screws to back off, compromising the seal.
Hose "Cold Flow" and Compression Set: Rubber and silicone hoses can permanently deform or shrink over time under pressure. A fixed-diameter clamp cannot compensate for this dimensional change, resulting in a loss of clamping force.
This is precisely where the design of a spring-loaded T-bolt clamp makes a critical difference.

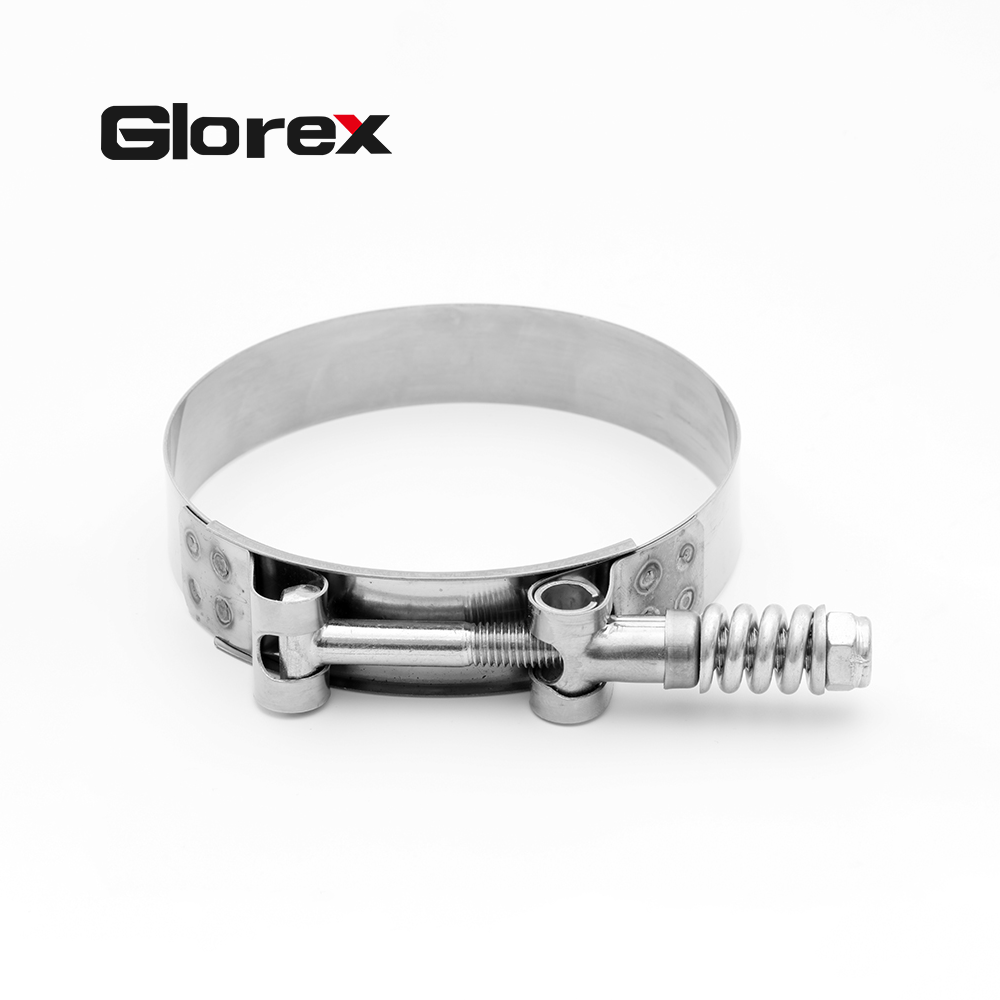

Understanding the T Bolt Spring Loaded Hose Clamp Design
The product described is a sophisticated evolution of the classic T-bolt clamp. Its genius lies in the integration of a coil spring mechanism. Let's break down its core components and their functions:
| Component | Material (as per product spec) | Functional Role |
|---|---|---|
| Hoop Straps / Bridge Plate | 304 Stainless Steel | Provides the primary structural loop around the hose. 304 SS offers excellent corrosion resistance and high tensile strength. |
| T-Bolt & Housing | 304 Stainless Steel | The "T" shaped bolt and its housing are the clamping mechanism, allowing for quick, high-torque fastening with a tool. |
| Spring | Iron, Zinc Plated | The heart of the technology. This heavy-duty coil spring applies constant, uniform pressure, actively compensating for thermal expansion, vibration, and hose compression. |
| Nut & Screw | Iron, Zinc Plated | Secures the T-bolt. Zinc plating provides a reliable layer of corrosion protection for these high-stress components. |
The polished surface finish on the 304 stainless steel components is not just for aesthetics; it reduces friction during installation and enhances the clamp's resistance to corrosive elements like road salts and chemicals.
How the Spring-Loaded Mechanism Works
The key innovation is the use of a rotation spring. Unlike a fixed clamp that is tightened to a specific circumference, the spring in this design allows for dynamic tensioning.
Constant Pressure: The spring exerts a continuous, pre-determined force, ensuring that the clamp maintains a high, uniform seal load.
Compensation: As the hose compresses or the joint size changes due to thermal expansion or contraction, the spring extends or retracts slightly, maintaining consistent clamping pressure. This self-adjusting feature is critical for long-term, maintenance-free reliability.
Absorption of Shock: The spring acts as a damper, absorbing sudden shock loads from vibration and protecting the hose and connection from stress fractures.
Technical Specifications: The 19mm Bandwidth and Diameter Range
A key feature of this specific line of heavy-duty clamps is the 19mm bandwidth. This is significantly wider than standard clamps, offering several advantages:
Reduced Pressure on Hoses: The wider band distributes the clamping force over a larger surface area, minimizing the risk of pinching or cutting into the hose material, even under high torque.
Superior Holding Power: A wider band provides more friction and grip on the hose, preventing it from slipping off the fitting under high pressure or vibration.
The comprehensive diameter range (from 40-46mm up to 190-198mm) makes these clamps incredibly versatile, suitable for everything from medium-sized turbocharger hoses to large-diameter industrial piping.
| Specification | Diameter Range (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| Size Example 1 | 40-46 | 19 | 0.8 |
| Size Example 2 | 93-101 | 19 | 0.8 |
| Size Example 3 | 145-153 | 19 | 0.8 |
| Size Example 4 | 190-198 | 19 | 0.8 |
Note: The full range includes numerous intermediate sizes, allowing for a precise fit for a wide array of hose diameters.
Core Advantages of High-Quality T Bolt Spring Clamps
The combination of these design features results in a superior product, ideal for critical applications where failure is not an option.
1. Unwavering Sealing Reliability
The primary benefit is the guarantee of a leak-proof seal. The constant sealing pressure exerted by the heavy-duty spring ensures that the connection remains sealed throughout its service life, regardless of changing conditions. This minimizes fluid loss, prevents system contamination, and enhances safety.
2. Exceptional Durability and Strength
Constructed from 304 stainless steel for the critical load-bearing parts and zinc-plated iron for the high-wear components, these clamps are built to withstand the most punishing industrial environments. They resist corrosion from moisture, salts, and chemicals, ensuring a long operational life.
3. Versatility Across Applications
These clamps are designed for use with heavy trucks, industrial machinery, off-road equipment, and agricultural irrigation, as well as high-performance racing engines. Their ability to handle severe vibration and large-diameter hose connections makes them a true multi-purpose solution. The product page specifically highlights their suitability for:
Diesel internal combustion engines (standard).
Sports cars and Formula race car engines (heavy-duty spring version).
4. Ease of Installation
The T-bolt design allows for fast assembly and disassembly. A single nut or bolt can be tightened to a high torque quickly using common hand tools, saving significant time during installation or maintenance compared to multi-bolt flanges.
Practical Installation Tips
To get the most from your heavy-duty spring-loaded T-bolt clamps, follow these best practices:
1. Select the Correct Size: Choose a clamp whose diameter range encompasses the hose's outer diameter when installed over the fitting. The middle of the range is often the optimal clamping point.
2. Position Carefully: Place the clamp's T-bolt and spring mechanism in an accessible location for future adjustments. Ensure the band sits squarely on the hose, not at an angle.
3. Lubricate the Threads: A small amount of anti-seize compound on the nut and screw threads will ensure you achieve the correct torque and make future removal easier.
4. Tighten in Stages: If possible, tighten the clamp to a specific torque using a torque wrench. If not, tighten firmly, then run the system up to operating temperature, allow it to cool, and re-tighten to account for initial settling.
Conclusion
For engineers and maintenance professionals who demand the highest level of performance and reliability from their hose connections, the T bolt spring loaded hose clamp is an indispensable tool. Its innovative design, which marries the strength of a T-bolt with the dynamic compensation of a spring, provides an unparalleled sealing solution for high-vibration, high-temperature, and high-pressure applications.
By investing in a high-quality clamp built from robust materials like 304 stainless steel, you are investing in the longevity and safety of your entire system. For a wide range of these durable and reliable clamps, explore the comprehensive selection available from Glorex, a manufacturer known for its commitment to quality and performance in demanding industrial environments.
