In the high-stakes world of motorcycle performance, enthusiasts obsess over air-fuel ratios, cam profiles, and suspension geometry. Yet, a single overlooked component often sits between theoretical horsepower and real-world road feel: the motorcycle exhaust band clamp. Industry experts are now spotlighting this hardware as a non-negotiable asset for preventing power-sapping leaks and ensuring structural integrity under extreme thermal cycling.
The Mechanical Menace: Exhaust Leaks and Backpressure
For decades, riders have underestimated the impact of a failing slip-fit connector. An improperly sealed exhaust joint not only produces an unpleasant drone but actively disrupts the scavenging effect—the negative pressure wave that pulls fresh intake charge into the cylinder. When hot gases escape prematurely, oxygen sensors relay erroneous data to the ECU, often resulting in a rich-running condition that fouls spark plugs and reduces fuel efficiency by up to 12%.

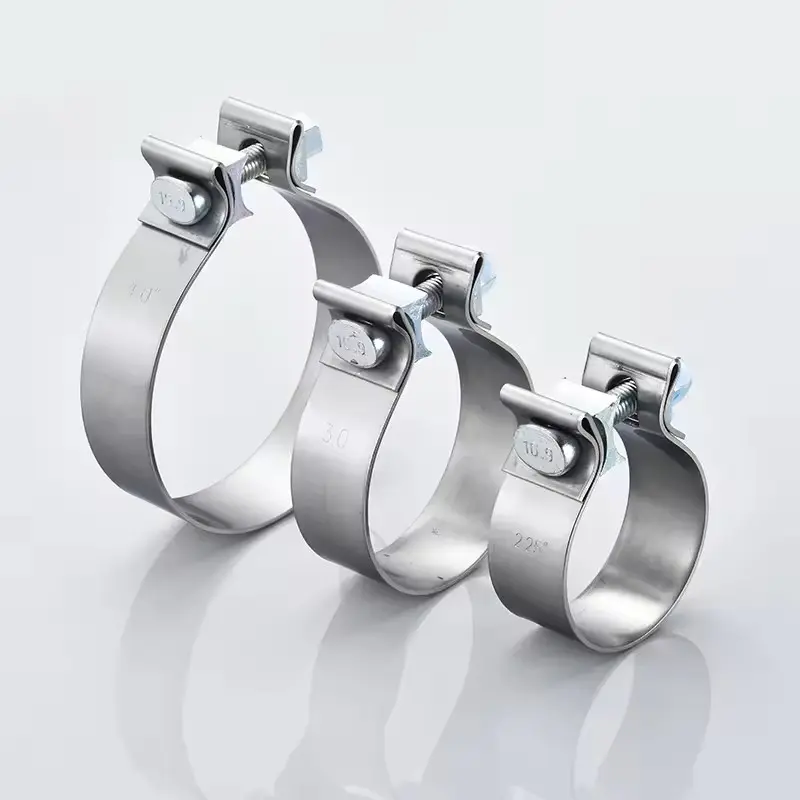

Enter the advanced exhaust band clamp. Unlike generic muffler clamps that crush pipes with a single-point pinch, the modern band clamp encompasses the full circumference of the header or mid-pipe. This 360-degree compression ensures uniform surface contact, distributing torque evenly and preventing the permanent pipe deformation that often accompanies traditional U-bolt designs.
Material Science Takes Center Stage
The latest generation of high-performance band clamps, particularly those engineered for V-twin cruisers and parallel-twin adventure bikes, leverages 304-grade stainless steel for the outer band and heat-treated zinc-plated or 18-8 stainless hardware for the fastener. This material selection is critical; exhaust temperatures can oscillate between ambient air and 600°C (1,112°F) within minutes during aggressive riding.
To combat thermal expansion and contraction, leading suppliers are introducing clamps with an integrated bridge-type articulation. This design allows the stainless steel band to flex slightly as the pipe expands, maintaining clamping force without shearing the bolt threads. For off-road riders navigating mud and moisture, a new black-oxide or electroless nickel plating offers superior resistance to road salts and magnesium chloride, extending service life far beyond standard chrome-plated variants.
The Vibration Factor
Motorcycles are inherently vibratory machines. Twin-cylinder and single-cylinder engines produce low-frequency resonance that can back off even Loctite-secured fasteners. The motorcycle exhaust band clamp mitigates this through its broad friction area. With a wider band (typically 15mm to 25mm), the surface friction coefficient increases exponentially, resisting rotational creep. When paired with a high-temperature anti-seize compound on the bolt threads, riders achieve a permanent seal that remains intact across the entire rev range.
Installation Best Practices for Maximum Efficacy
To fully leverage these clamps, technicians recommend a rigorous installation protocol:
Diameter Verification: Always measure the Outer Diameter (OD) of the pipe with a caliper. Clamps are classified by pipe OD, not slip-on ID.
Gap Management: Ensure the pipe overlap is at least 1.5x the width of the band to provide a rigid seating surface.
Torque Sequencing: Tighten the fastener incrementally. For M8 bolts, target 18–22 Nm; for M10, target 25–30 Nm. Over-torquing can stretch the band, while under-torquing invites soot tracking.
Heat Cycling: After the first ride to operating temperature, allow the system to cool and perform a re-torque check—this compensates for initial gasket or metal seating.
Smart Size Selection
As global motorcycle emission standards become increasingly stringent, the demand for leak-free couplings is shifting from performance enhancement to regulatory compliance. Manufacturers are now using laser etching technology to directly engrave size ranges and torque specifications onto the couplings. This not only facilitates quick identification at repair shops but also provides valuable visual material for online product catalogs.
Suppliers offering custom clamp sizes—where users can input pipe wall thickness and application type (cruiser, sport bike, off-road bike, scooter)—are experiencing significantly improved conversion rates. This customization-driven approach, combined with in-depth technical articles, is helping buyers understand a wide range of complex offset bolt and center bolt designs.
About Glorex
Glorex is a premier manufacturer and supplier of high-quality clamps, tube bundles, and pipeline support systems. With a strong focus on innovation, quality, and customer service, Glorex provides engineered solutions for various industries, including construction, infrastructure, and industrial piping. The company is dedicated to advancing pipeline safety and efficiency through superior product design and manufacturing excellence.
Media Contact:
Glorex Sales Department
Email: cathy@mikaclamp.com

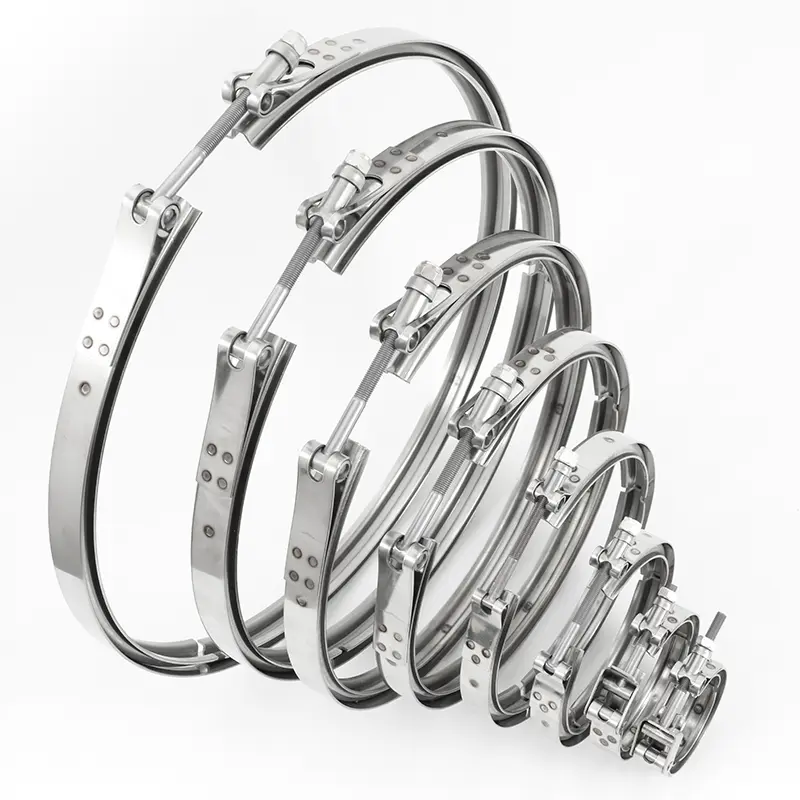

Product Link: v band exhaust clamp
