A hose clamp is a mechanical device used to attach and seal a hose onto a fitting such as a barb or a nipple. Its primary function is to prevent leakage of fluid or gas at the connection point. While simple in concept, the choice of hose clamp significantly affects the reliability and service life of a piping or conveying system.
This article describes common types of hose clamps, typical materials, and key factors to consider when selecting a clamp for a given application.
Common Types of Hose Clamps
Different designs address varying pressure levels, temperature ranges, and assembly requirements. The four most widely used types are described below.

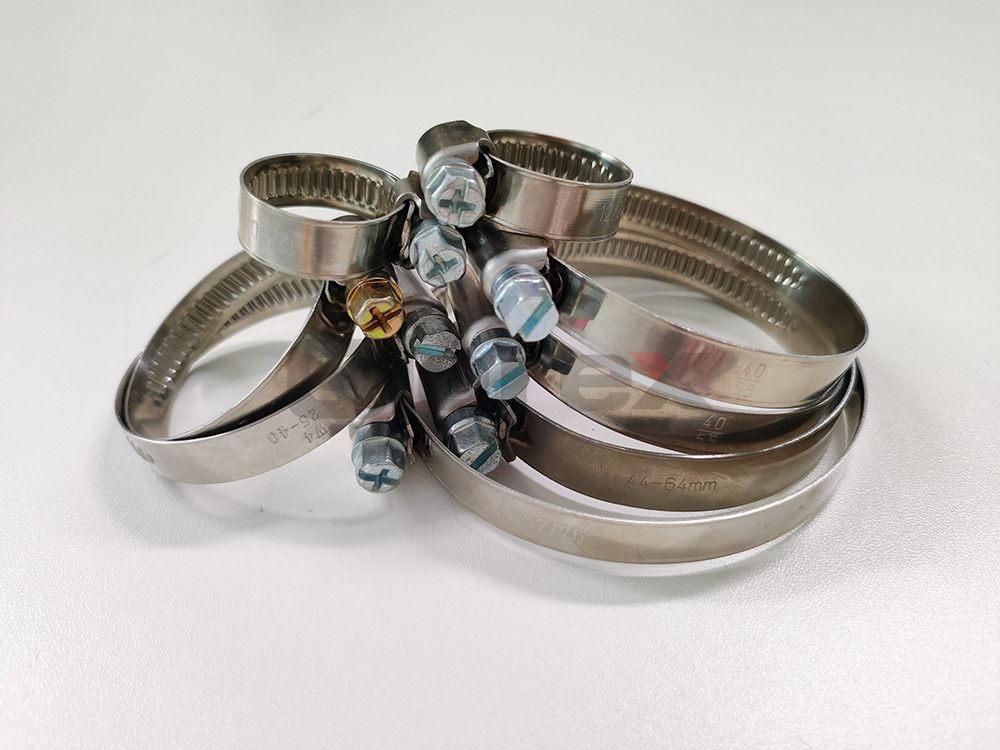

1. Worm Drive Clamp
The worm drive clamp consists of a stainless steel band with slots, a housing, and a screw mechanism. Rotating the screw tightens the band around the hose. These clamps are suitable for general-purpose applications including automotive cooling systems, industrial air lines, and low-pressure water hoses.
Typical torque ranges from 2 to 6 N·m depending on band width and diameter. However, worm drive clamps may create an uneven compression distribution due to the gap in the band slots. For this reason, they are not recommended for soft silicone hoses or very high-pressure hydraulic systems.
2. Spring Clamp
Spring clamps are made from spring steel and exert continuous radial force. They automatically adjust to hose diameter changes caused by temperature fluctuations or material creep. These clamps are common in automotive coolant systems where thermal cycling occurs repeatedly. Spring clamps do not require periodic re-tightening, but they provide lower maximum clamping force compared to worm drive or T-bolt clamps.

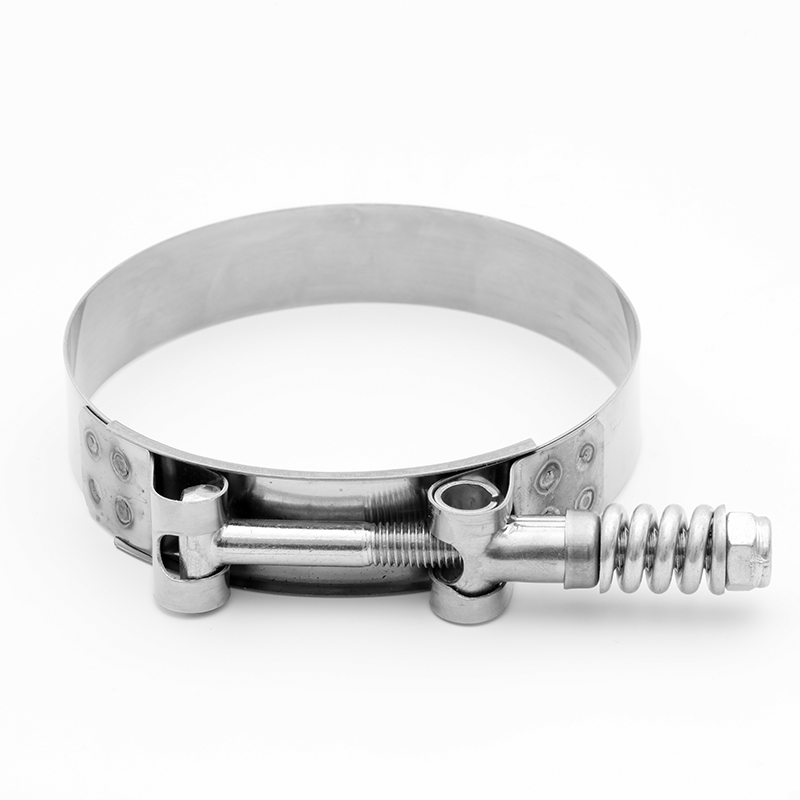

3. T-Bolt Clamp
T-bolt clamps use a high-strength band, a T-bolt mechanism, and often a liner inside the band. They deliver uniform compression around the entire circumference, making them suitable for heavy-duty applications such as turbocharger ducts, silicone hose connections, and large-diameter industrial hoses. T-bolt clamps typically handle working pressures above 10 bar and are available for diameters from 50 mm to over 500 mm.
4. Wire Clamp
Wire clamps consist of a continuous length of spring wire formed into a loop. A screw or latch adjusts the loop diameter. These clamps offer minimal contact area, which reduces the risk of hose damage. They are often used in low-pressure fuel lines, vacuum systems, and certain agricultural applications.
Material Selection
The material of a hose clamp must resist corrosion, withstand the operating temperature, and be compatible with the fluid or gas being conveyed.
Stainless steel (304 and 316 grades): Grade 304 is suitable for indoor or mildly corrosive environments. Grade 316 contains molybdenum, which improves resistance to chlorides and acidic conditions. Marine and chemical processing applications typically specify grade 316.
Zinc-plated carbon steel: Provides moderate corrosion resistance at lower cost. Suitable for dry or indoor environments. Not recommended for outdoor or high-humidity service.
Galvanized steel: Offers better corrosion protection than zinc-plated steel but remains less durable than stainless steel in wet conditions.
Polymer-coated or all-plastic clamps: Used for applications requiring electrical insulation or avoidance of metal contact, such as certain laboratory or food handling systems.
Key Selection Criteria
Selecting a hose clamp requires evaluation of several application parameters. The following factors should be documented before making a decision.
Hose material and hardness: Soft hoses (e.g., silicone, low-durometer rubber) require wider bands or liners to prevent cutting. Hard or reinforced hoses can tolerate narrower bands and higher clamping forces.
Operating pressure and temperature: Higher pressure generally requires wider band width and a clamp type that distributes force evenly. Temperature extremes affect both the hose and the clamp material. For temperatures above 150°C, stainless steel is preferred over coated carbon steel.
Fluid compatibility: Corrosive fluids or gases mandate corrosion-resistant materials. For potable water systems, clamps meeting NSF/ANSI 61 standards may be required.
Installation access: In confined spaces, a clamp with a hex head screw or a socket drive mechanism may be easier to tighten than a standard slotted screw.
Vibration and dynamic loads: Spring clamps or T-bolt clamps with locking hardware resist loosening under vibration. Worm drive clamps should be used with thread-locking compounds or self-locking nuts if vibration is present.
Installation Guidelines
Proper installation directly affects clamp performance. The following practices are generally accepted.
Position the clamp over the barb or fitting shoulder, not behind it.
Tighten the clamp to the manufacturer’s specified torque. Under-tightening allows leakage; over-tightening may cut the hose or distort the fitting.
For worm drive clamps, place the housing away from direct fluid flow paths if possible.
Re-torque after initial thermal cycling or within the first 24 hours of operation when using rubber hoses.
Common Failure Modes
Understanding failure modes helps in selecting the correct clamp and maintaining system integrity.
Loss of torque: Caused by vibration, thermal cycling, or cold flow of the hose material. Periodic inspection and re-tightening may be required.
Corrosion: Results from selecting an inadequate material grade for the environment. Pitting or crevice corrosion under the band can lead to sudden failure.
Hose cutting: Occurs when the band edge or slot digs into a soft hose. Using lined clamps or increasing band width mitigates this risk.
Screw stripping: Typically caused by over-tightening or using a screwdriver that does not match the drive type.
Conclusion
Hose clamps are simple but critical components in fluid and gas handling systems. Worm drive, spring, T-bolt, and wire clamps each offer distinct characteristics suitable for specific pressure ranges, hose materials, and environmental conditions. Material selection should match the corrosiveness of the service environment. Proper installation and periodic inspection further reduce the risk of leakage or connection failure.
For original equipment manufacturers and maintenance engineers, documenting these parameters and selecting accordingly will improve system reliability without over-specifying or incurring unnecessary cost.
