A hose clamp is a mechanical fastening device used to attach and seal a hose onto a fitting such as a barb or nipple. It prevents fluid or air leakage by applying uniform radial pressure around the hose circumference. Hose clamps are found in automotive cooling systems, industrial hydraulics, agricultural irrigation, plumbing, and household appliances. Despite their simple appearance, proper clamp selection directly affects system reliability and maintenance intervals.
Common Types of Hose Clamps

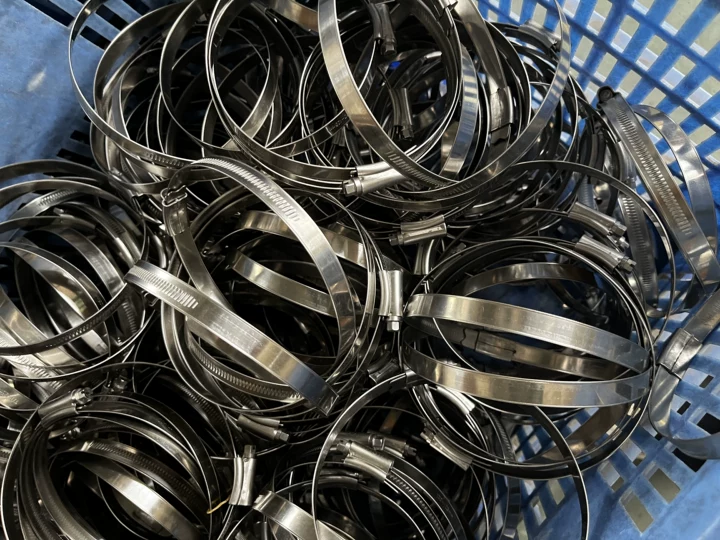

1. Worm Gear Clamps
Worm gear clamps consist of a perforated band and a housing with a screw mechanism. Tightening the screw draws the band through the housing, reducing its diameter. These clamps are widely used because they are adjustable, reusable, and available in a broad size range (typically 6–200 mm). However, they may lose clamping force under extreme temperature cycling due to the difference in thermal expansion between the rubber hose and the metal band. For high-vibration applications, a lined worm gear clamp with a protective inner sleeve is recommended to avoid cutting into the hose.
2. Spring Clamps
Spring clamps are made from spring steel and function as a constant-tension device. They automatically adjust to hose diameter changes caused by temperature or pressure variations. Spring clamps are common in engine cooling systems, where hoses repeatedly expand and contract. Installation requires pliers; removal is similarly tool-dependent. They are not typically reusable because the spring force degrades after one or two cycles.

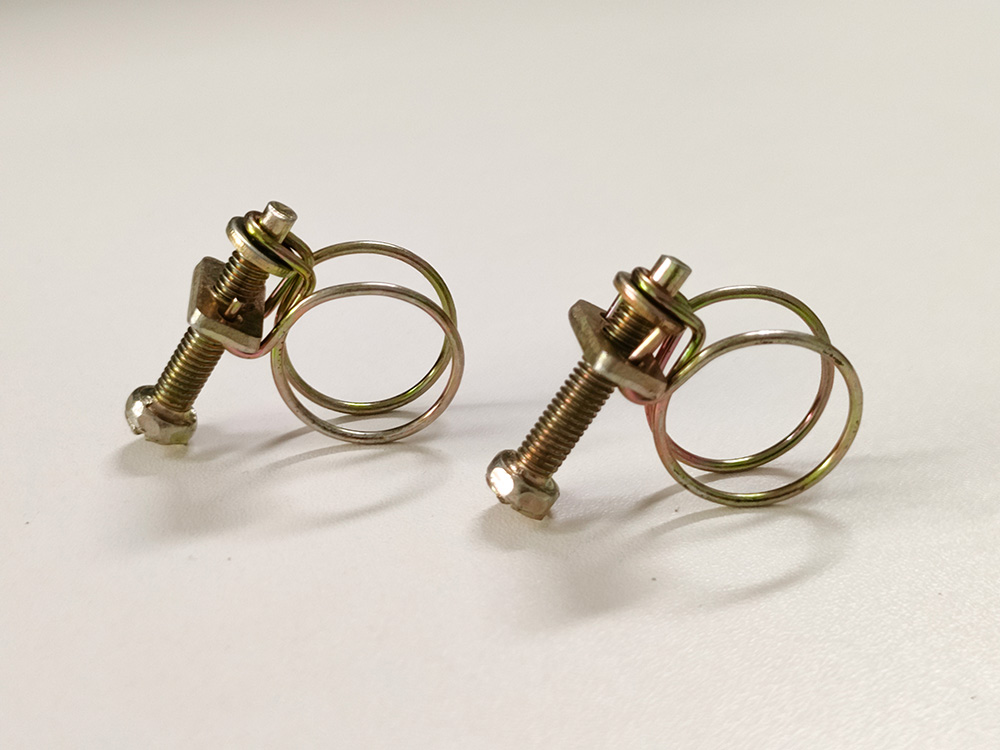

3. Wire Clamps
Formed from a single continuous loop of spring wire, wire clamps are lightweight and inexpensive. They provide low clamping force and are suitable for low-pressure applications such as vacuum lines or drainage hoses. Wire clamps cannot be adjusted once installed and are generally considered a disposable fastening solution.
4. Ear Clamps
Ear clamps feature a band with one or two raised “ears” that are permanently deformed using a pincer tool. The deformation creates a fixed, tamper‑proof clamping force. These clamps are widely used in fuel lines and brake systems where leaks pose safety risks. Because ear clamps are one‑time use, they ensure consistent compression from the original assembly.
5. Constant‑Tension (CT) Clamps
Constant‑tension clamps contain a spring or a specially shaped band that maintains near‑constant clamping force over a wide temperature range (–40 °C to 150 °C). They are preferred for turbocharger air ducts, exhaust gas recirculation (EGR) systems, and other high‑heat environments. CT clamps cost more than standard worm gear clamps but reduce service calls in demanding thermal cycles.
Material Selection
Stainless steel (300 series, e.g., 304 or 316) – Offers high corrosion resistance. Type 316 is recommended for marine environments or exposure to chlorides.
Galvanized carbon steel – Lower cost but susceptible to rust when used outdoors or in humid conditions. Suitable for dry indoor applications.
Zinc‑plated steel – Provides mild corrosion protection; often specified for automotive under‑hood assemblies where temperatures do not exceed 120 °C.
Polyamide (nylon) clamps – Non‑conductive and corrosion‑proof, but limited to low‑pressure, low‑temperature applications (below 85 °C).
Key Selection Factors
Hose outer diameter (OD) and wall thickness – The clamp’s minimum and maximum diameter range must match the hose OD after compression. A clamp that is too large will not develop sufficient radial force, causing leaks.
Operating temperature range – Standard worm gear clamps perform reliably from –30 °C to +100 °C. For higher temperatures, use constant‑tension or stainless steel ear clamps. Below –30 °C, ensure the screw mechanism is not prone to galling (use anti‑seize lubricant or select 316 stainless steel).
Pressure rating – For systems exceeding 5 bar (e.g., hydraulic return lines), a wide band (12 mm or wider) worm gear clamp or a double‑ear clamp is recommended. Low‑pressure air and water lines can use narrower bands.
Installation torque – Over‑tightening worm gear clamps is a common failure mode. The band should compress the hose until the hose surface slightly dimples but without cutting into the rubber. When a torque‑limited screwdriver is available, typical recommended torque for a 9 mm‑wide stainless clamp on a 25 mm rubber hose is 2.5–3.5 N·m.
Application Examples
Automotive coolant hoses – Spring clamps or constant‑tension clamps.
Industrial compressed air lines – Zinc‑plated worm gear clamps (non‑reusable air fittings often specify ear clamps for tamper‑proof assembly).
Food processing equipment – Smooth‑band worm gear clamps with no perforations on the inner surface (to prevent bacterial trapping).
Marine fuel lines – 316 stainless steel ear clamps, as saltwater rapidly corrodes standard clamps.
Common Mistakes to Avoid
Using a clamp whose band width is narrower than the fitting barb – this concentrates stress and may split the hose.
Reusing a spring clamp that has been fully relaxed – the preload is reduced, resulting in under‑clamping.
Installing worm gear clamps directly over a hose seam or coupling – the gap under the seam prevents even compression.
Mixing materials (e.g., zinc‑plated clamp on a copper fitting) – galvanic corrosion will occur in moist environments.
Conclusion
Selecting the correct hose clamp requires evaluating operating pressure, temperature range, environmental corrosion risks, and assembly method (reusable vs. permanent). No single clamp type works optimally for all applications. Standard worm gear clamps offer general‑purpose adjustability, while spring and constant‑tension clamps address thermal cycling, and ear clamps provide reliable, tamper‑proof sealing for safety‑critical lines. By matching clamp design and material to the specific service conditions, engineers and maintenance professionals can reduce leakage incidents and extend hose service life.
