The Bridge Hose Clamp designed to secure corrugated hoses and other demanding connections. Made entirely of 300 series stainless steel (W4 material), these stainless steel hose clamps feature a unique bridge structure that prevents leakage, allows reuse, and provides excellent corrosion resistance while meeting RoHS standards.

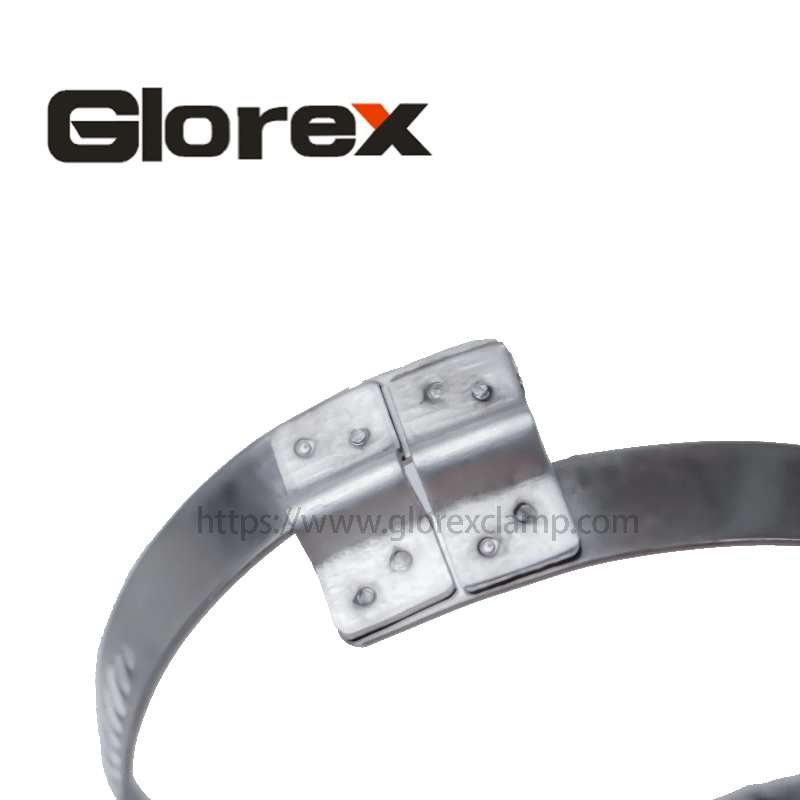

Bridge Structure: The Key to Leak-Proof Performance
Unlike traditional worm-drive clamps, the Glorex Bridge Hose Clamp incorporates a special bridge structure that distributes clamping force evenly across the hose surface. This design is particularly effective on bellows – the primary application area – where uneven pressure can lead to gas or fluid bypass. The bridge geometry ensures that the clamp fastens securely without crushing or deforming the corrugations, effectively preventing leakage even under vibration or thermal cycling.
“Our Heavy Duty Bridge Clamp solves a common problem in bellow connections: how to achieve a tight seal without damaging the corrugated profile,” said a Glorex product engineer. “The bridge design holds firmly, is easy to position, and can be reused multiple times – making it a cost-effective choice for maintenance teams and OEMs.”
All-Stainless Steel Construction: W4 (300ss) for Corrosion Resistance
The Bridge Hose Clamp is manufactured entirely from 300 series stainless steel, including the band, housing, screw, and the critical bridge component. This W4 material specification provides:
- Excellent corrosion resistance – suitable for outdoor, marine, and chemical environments
- High strength and toughness – resists deformation under heavy torque
As a stainless steel hose clamp, it outperforms zinc-plated or galvanized alternatives in moisture-prone or washdown environments.
Wide Size Range: From 115mm to 420mm (9mm Bandwidth)
Glorex offers the Heavy Duty Bridge Clamp in a comprehensive range of diameters, all with a 9mm bandwidth – ideal for medium to large corrugated hoses, flexible ducts, and rubber bellows.
| Size (mm) | Size (mm) | Size (mm) |
|---|---|---|
| 115–135 | 185–205 | 265–285 |
| 120–140 | 195–215 | 275–295 |
| 125–145 | 205–225 | 285–305 |
| 135–155 | 215–235 | 300–320 |
| 145–165 | 225–245 | 350–370 |
| 155–178 | 235–255 | 400–420 |
| 165–185 | 245–265 | — |
(Additional intermediate sizes available; consult factory for custom ranges)
Key Advantages: Reusable, Easy to Install, Good Toughness
The Glorex Bridge Hose Clamp is engineered for real-world performance:
- Good toughness – withstands repeated installation and removal
- Good sealing – bridge design prevents leaks even on irregular surfaces
- Convenient installation – easy positioning with a screwdriver or nut driver
- Sturdy connection – resists loosening from vibration
- Reusable – can be disassembled and reinstalled without loss of performance
- RoHS compliant – environmentally friendly and safe for global markets
These features make it a true Heavy Duty Bridge Clamp suitable for industrial dust collection, exhaust systems, marine ventilation, and agricultural machinery.
Primary Application: Bellows & Corrugated Hoses
As noted on the product page, the Bridge Hose Clamp is “mainly used on bellows.” Typical applications include:
- Expansion joints in HVAC and industrial ductwork
- Corrugated stainless steel tubing (CSST) for gas lines
- Rubber bellows in vehicle exhaust and intake systems
- Flexible connectors in dust extraction and pneumatic conveying
- Vibration isolators in pumps and compressors
Engineers specifying stainless steel hose clamps for bellow connections will find the Glorex bridge design provides a superior seal compared to standard clamps.
Quality Assurance & Custom Marking
Glorex operates a complete in-house inspection system with professional inspectors on every production line. All workers are skilled in self-inspection using accurate tools. Optional stencil typing or laser engraving is available for part numbers, logos, or size markings on the clamp housing or band.
Packaging & Global Shipping
Standard packaging: Plastic bag inside labeled carton.
Special packaging: Available upon request (kraft box, color box, plastic box, tool box, etc.)
Glorex maintains its own fleet of transport vehicles and long-term partnerships with major logistics carriers, ensuring rapid dispatch from Tianjin Airport, Xingang Port, and Dongjiang Port. “We deliver your Heavy Duty Bridge Clamps to the designated address faster than ever – whether for a plant shutdown or a new construction project,” added the logistics manager.
Availability & Contact Information
The Bridge Hose Clamp (available as stainless steel hose clamps in the Heavy Duty Bridge Clamp configuration) is now available for direct order, bulk pricing, and custom engraving. For detailed specifications, a full size list, or to request a sample, visit the official product page:
http://glorexclamp.com/bridge-hose-clamp-product/
About Glorex
Glorex is a China-based manufacturer specializing in high-performance clamping solutions for industrial, automotive, HVAC, and environmental applications. With a focus on innovative designs (such as bridge clamps for bellows), strict quality control, and customer-driven engineering, Glorex serves clients across North America, Europe, Asia, and the Middle East.
Media Contact
Glorex Sales Team
Email: cathy@mikaclamp.com
Web: www.glorexclamp.com
Post time: Apr-17-2026
