When it comes to securing hoses in demanding industrial environments, the Germany Type Hose Clamp with Butterfly Handle stands out as a reliable and versatile solution. Unlike standard worm drive clamps, this handle-type design offers faster installation, tool-free adjustment, and superior locking force—making it a preferred choice for professionals in automotive, marine, fire protection, and heavy machinery sectors.
In this guide, we'll explore everything you need to know about this heavy-duty clamp, from material selection to sizing, applications, and maintenance tips.

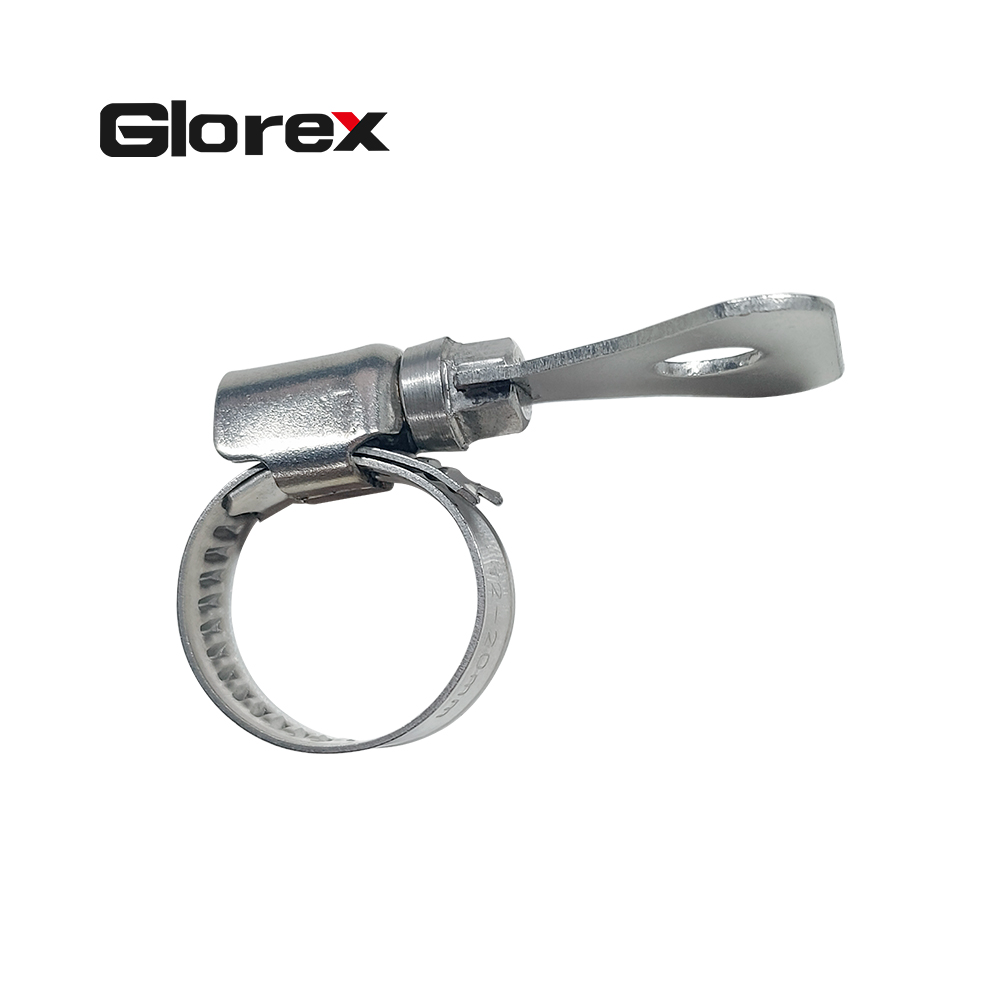

What Makes the Germany Type Hose Clamp with Butterfly Handle Different?
The Worm Drive Hose Clamp with Handle features an open-type inner and outer ring bolting structure. Instead of a traditional screw housing, it uses external hex-head bolts tightened through a steel band perforation process. This design delivers strong, even locking force around the entire circumference of the hose.
The butterfly handle—also known as a thumb screw—allows for quick manual tightening without tools, which is especially useful in tight spaces or when frequent adjustments are needed.
Key Features at a Glance
Dual Material Options: 304 stainless steel or zinc-plated/galvanized steel
Open-Type Bolt Fastening: External hex-head design for easy tightening with standard wrenches
Metric Precision: All dimensions in metric units (8mm to 170mm)
Two Bandwidth Choices: 9mm and 12mm
Corrosion-Resistant Finish: Suitable for outdoor, humid, or chemical environments
Material Selection: Which One Is Right for You?
Choosing the correct material is critical for performance and longevity. Here's a quick comparison:
| Material | Features | Best For |
|---|---|---|
| 201 Partially Stainless Steel | Economical, average rust resistance | Dry environments, short-term use |
| 201 Fully Stainless Steel | High strength, better rust resistance | General industrial applications |
| 304 Fully Stainless Steel | Acid/alkali resistant, -50°C to 200°C | Food, medical, chemical, marine |
| Galvanized Iron | Low cost, average rust resistance | Short-term protection, dry environments |
For most industrial buyers, 304 stainless steel offers the best balance of durability and corrosion resistance, especially in wet or chemical-exposed settings.
Applications Across Industries
The Germany Type Hose Clamp with Butterfly Handle is engineered for demanding environments. Here's where it excels:
Automotive & Agriculture
Fuel lines, oil return hoses, coolant pipes on tractors, combines, and trucks.
Marine
Engine cooling systems, bilge pump hoses, and deck wash connections on ships and boats.
Fire Protection
Securing fire hoses to hydrants and sprinkler system piping.
Construction
Temporary or permanent connections for air, water, and slurry lines on job sites.
General Industry
Pneumatic tubes, dust extraction ducts, and chemical transfer hoses.
Installation Tips for Optimal Performance
Proper installation ensures a leak-proof seal and extends clamp life. Follow these steps:
Slide the clamp over the hose end before attaching it to the fitting.
Position the band over the hose overlap area (typically 5–10mm from the end).
Tighten the bolt by hand until the hose is snug against the fitting. Avoid overtightening to prevent hose damage.
For high-vibration applications, re-tighten after the first hour of operation.
About Us
Mika (Tianjin) Pipeline Technology Co., Ltd. is a professional manufacturer of high-performance pipe clamps, located in Tianjin, a key port city and strategic hub on the Maritime Silk Road. We serve industries ranging from automotive and military to HVAC and irrigation, providing reliable, leak-proof sealing solutions.
Our team of nearly 100 includes a dedicated technical staff of 8 (with 5 senior engineers) and a responsive sales and after-sales team of 15. We combine rigorous quality control with a collaborative, forward-thinking work ethic to deliver products that perform under pressure.
Explore our full range: Heavy-Duty Handle Hose Clamp – Open Bolt, Metric Sizes
Certificate
FAQ
Q: What's the difference between 304 stainless and galvanized steel?
A: 304 stainless offers superior corrosion resistance, making it ideal for marine, chemical, or outdoor use. Galvanized steel is more affordable and still provides good rust protection for indoor or light-duty applications.
Q: How do I choose the right size clamp?
A: Measure the outer diameter of your hose (or pipe) when it's installed. Then pick a clamp whose range covers that measurement. For example, a 20mm hose would use the 20–32mm clamp.
Q: Are these clamps reusable?
A: Yes, they are reusable. However, inspect the band and threads for wear before reinstallation, especially if they've been under high torque.
Q: Can I use these clamps on soft hoses?
A: Yes, but we recommend using the 12mm bandwidth for softer materials, as it distributes pressure more evenly and reduces the risk of cutting or pinching.
Q: Do you offer custom packaging or branding?
A: Yes. We provide various packaging options (poly bags, boxes, blister packs) and can apply stencil or laser marking upon request.
