German Type Stainless Steel Hose Clamps | 304/316 Superior Corrosion Resistance | For Industrial & Automotive Use | DIN3017 Standard
Product Description
Our products are far from ordinary clamps. They embody the essence of German engineering in sealing reliability, designed specifically to address core pain points in high-demand applications.
| Specification | Diameter range (mm) | Installation torque(Nm) | Material | Surface treatment | Bandwidth(mm) | Thickness(mm) |
| 12-22 | 12-22 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 16-25 | 16-25 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 16-27 | 16-27 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 19-29 | 19-29 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 20-32 | 20-32 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 25-38 | 25-38 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 25-40 | 25-40 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 30-45 | 30-45 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 32-50 | 32-50 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 38-57 | 38-57 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 40-60 | 40-60 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 44-64 | 44-64 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 50-70 | 50-70 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 64-76 | 64-76 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 60-80 | 60-80 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
| 70-90 | 70-90 | Load torque≥8Nm | 304 stainless steel | Polishing process | 12 | 0.65 |
1. Material & Extreme Durability: For the Harshest Conditions
Constructed from high-grade 304 or 316 Stainless Steel, these clamps offer exceptional corrosion resistance. Type 316 Stainless Steel is particularly suited for marine environments, chemical plants, or exposure to road de-icing salts, offering a service life multiple times longer than standard galvanized materials. This ensures your Heavy Duty German Hose Clamp maintains integrity under extreme temperatures (-60°C to +300°C), eliminating failures due to rust.
2. Structure & Perfect Sealing: Uniform Force, Hose Protection

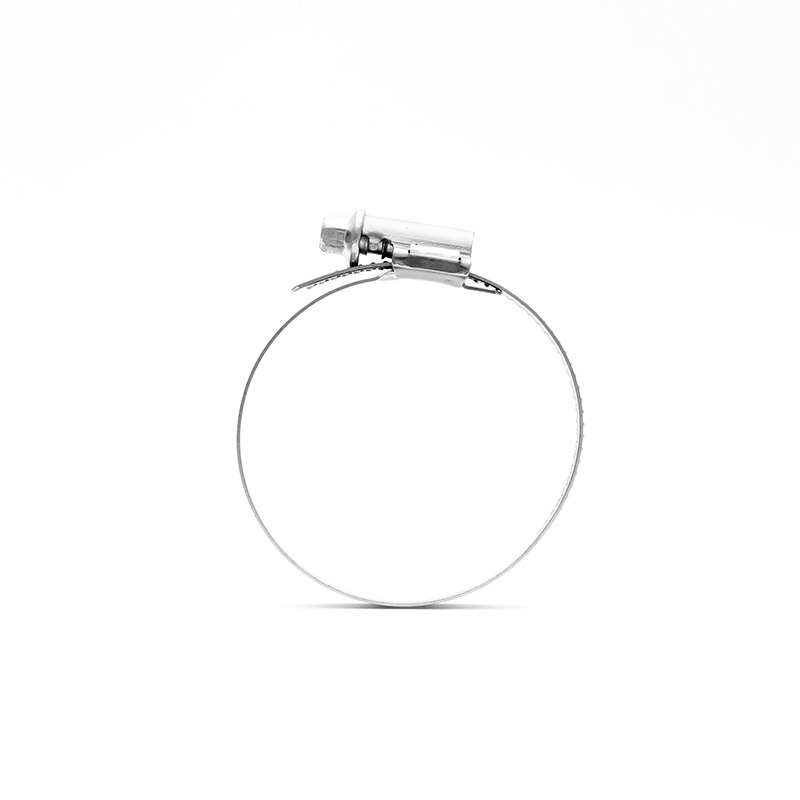

The unique extrusion teeth and wide band design is our core technology. Unlike traditional serrations that can cut into the hose, our design provides a broader damping range and uniform circumferential pressure distribution. This allows the German Style Stainless Steel Hose Clamp to achieve a secure, leak-free seal while preventing damage to the hose itself, significantly extending the overall lifespan of the connection.
3. Compatibility & Easy Installation: A Comprehensive Solution

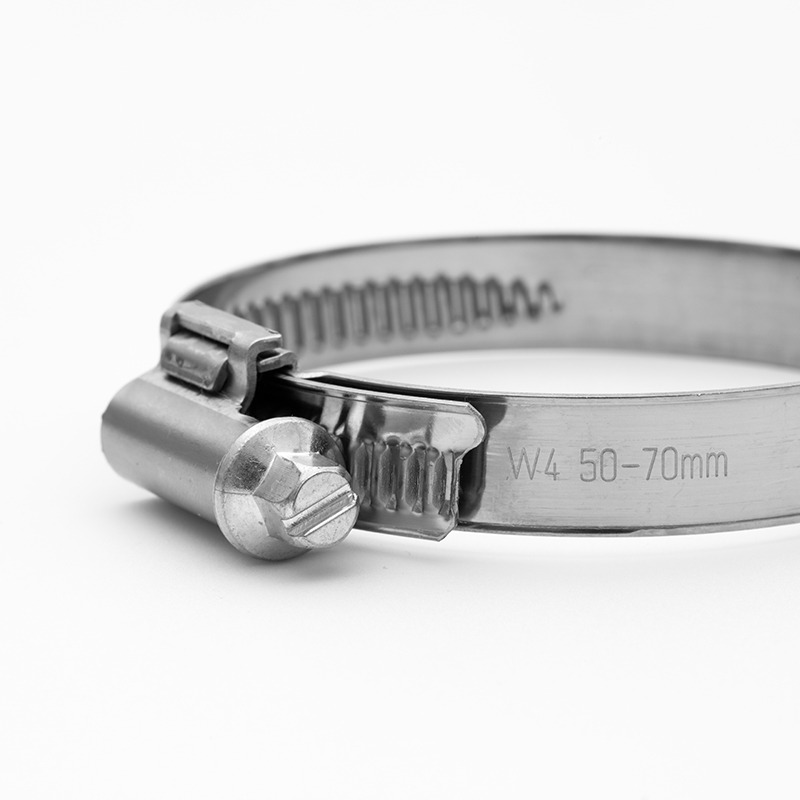

Our range comprehensively covers a wide spectrum from 12mm to 90mm in diameter, making a single set sufficient for most needs. The rolled edges on both sides protect the hose from scratches during installation and tightening. As a SAE JIS German Type Clamp, it is perfectly compatible with globally common pipe standards. With a specified installation torque (≥8Nm) and reusable design, it drastically reduces maintenance time and cost.
We specialize in providing reliable, high-quality pipeline connection solutions. Every German Type T-Bolt Hose Clamp or Wide Band Hose Clamp we ship embodies our commitment to excellence in quality and innovation. We understand that the reliability of your equipment depends on every critical component, like the clamp.
Production Application
Our Germany Type Hose Clamp is the preferred choice for these critical sectors:

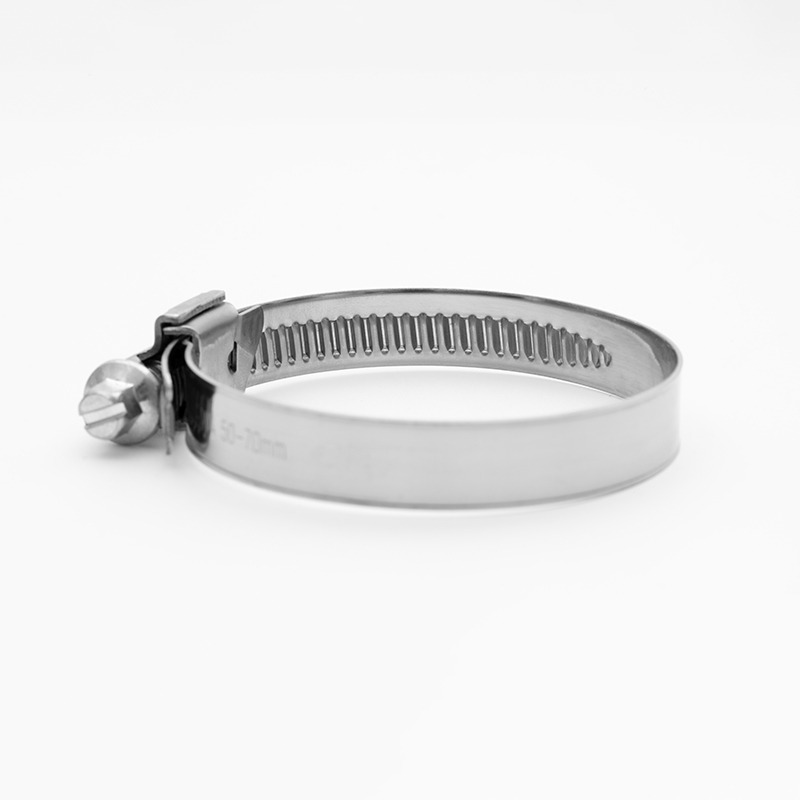

Automotive & Commercial Vehicles: The Anti-Leak German Engine Hose Clamp perfectly handles the high temperature and pressure challenges in engine cooling, fuel, and turbocharger lines.
Heavy Equipment & Military Vehicles: The Heavy Duty Hose Clamp provides anti-vibration security for hydraulic and pneumatic systems in construction machinery and military equipment.
Marine & Offshore Applications: The Type 316 Stainless Steel German Hose Clamp withstands seawater corrosion, ensuring safety in shipboard piping.
Industrial Infrastructure: From factory cooling/heating systems and industrial drainage to agricultural irrigation, ensuring long-term, leak-free operation.
Company Introduction
We are not a common trader but a source factory with independent R&D, mold manufacturing, and large-scale production capabilities. Located in Tianjin, a hub of the "Belt and Road" initiative, the company operates three production bases in Tianjin, Hebei, and Chongqing, ensuring sufficient capacity and stable supply.
Our team comprises nearly a hundred employees, with core technicians and senior engineers making up over 10%. They uphold the intertwined tenet of "Employees, Technology, Spirit, Benefits," continuously the essence of connection technology. It is this experienced team that supports our comprehensive service for global clients, from professional selection advice and one-on-one technical service to rapid after-sales response.
We warmly welcome you to visit our factory for inspection and provide free samples for your testing. We support OEM/ODM customization, including packaging and logo printing according to your branding requirements.
